Body Armor Tub Rails (Black) – TJ-4322

Body Armor 4x4

Shop Body Armor 4X4 Body Protection on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Body Armor 4×4 Tub Rails, part number TJ-4322
  • Textured black powder coat finish
  • Sheet metal back plate with 1.75 in diameter, .120 wall tube
  • Drilling required

Description

Overview

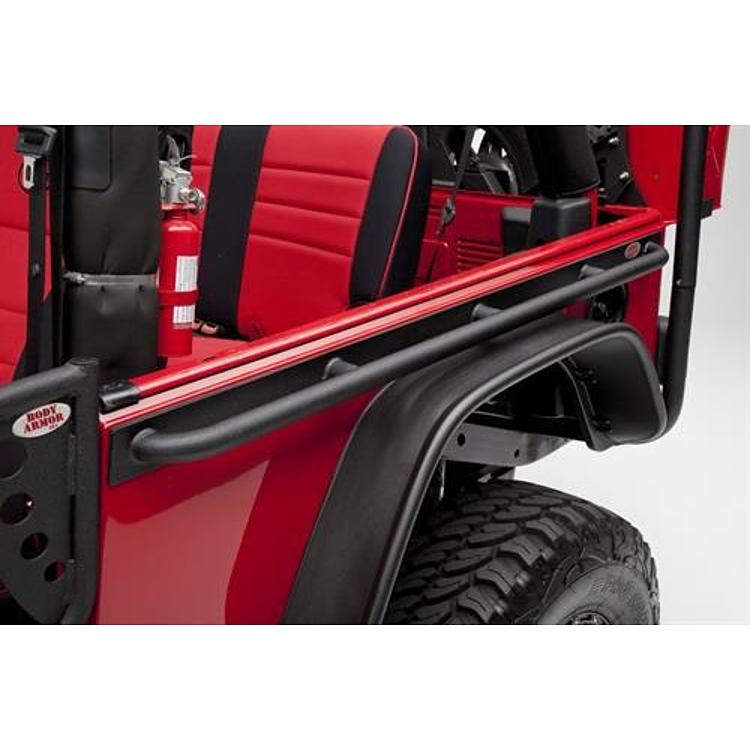

The Body Armor 4×4 Tub Rails, part number TJ-4322, are black textured powder coat bolt-on rails for the tub. They are designed to protect the tub from trail damage, so the Jeep can lean against a tree or rock without scraping the body.

The rail is designed to match the look of the Body Armor Rock Crawler side bars. It has a sheet metal back plate with a 1.75 in diameter, .120 wall tube welded on for strength. The part number includes TJ, so confirm fit for your vehicle’s year, model and trim before you buy.

Key features

  • Protects the tub from trail damage
  • Matches the look of Body Armor Rock Crawler side bars
  • Sheet metal back plate with welded tube
  • Textured black powder coat finish
  • Drilling required

Protecting the tub on trail

Tub rails sit along the top edge of the body and take contact when a vehicle is leaned against an obstacle or brushed by branches. Their job is to absorb that contact so the paint and tub sheet metal are not dented or scraped. Because a bolt-on rail spreads its load through the mounting points, the holes and the nearby body panel matter as much as the rail itself.

Look over the mounting points after the first trail outings for loose fasteners, cracked paint around the bolts and any moisture trapped between the rail and the body. Touch up bare metal at drilled holes with primer to slow corrosion. Check the weld where the tube meets the back plate, since repeated flexing can cause hairline cracks over time.

  • Re-check bolt tightness after the first few trail runs
  • Touch up bare metal at drilled holes
  • Inspect the tube-to-plate weld for hairline cracks

Specifications

Brand Body Armor 4×4
Part number TJ-4322
UPC 859909002277
Finish Textured black powder coat
Back plate Sheet metal
Tube 1.75 in diameter, .120 wall, welded on
Installation Drilling required

Vehicle fitment

It is a rail for the Jeep’s tub. Confirm fit for your vehicle’s year, model and trim by comparing the rail with your own tub before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Drilling is required. Check the mounting area for clearance and wiring before drilling into the body.

What’s included

Confirm the package contents line up with your installation plan before you start.

SKU: B/ATJ-4322 Category:

Specification

Shipping weight 30.00 lbs
Package dimensions 46.00 × 7.00 × 3.00 in
brands

Questions & Answers

Does the Body Armor TJ-4322 tub rail need drilling?

Yes. Drilling is required for mounting. Check the area for clearance and wiring before drilling into the body, since the rail is bolted to the tub.

Which Jeep does the Body Armor tub rail fit?

The rail is made for the Jeep's tub. Confirm fit for your vehicle's year, model and trim before you order, and compare the mounting area with your own tub first.

What is the tub rail made from?

The rail has a sheet metal back plate with a 1.75 in diameter, .120 wall tube welded on, and a textured black powder coat finish. It is designed to match the look of the Rock Crawler side bars.

Can tub rails be used with other body protection?

Yes, but plan the mounting first. Other body armor or corner guards may use the same mounting areas, so check clearance for each piece before drilling, and keep the fasteners sorted so nothing is mixed up.
