Overview

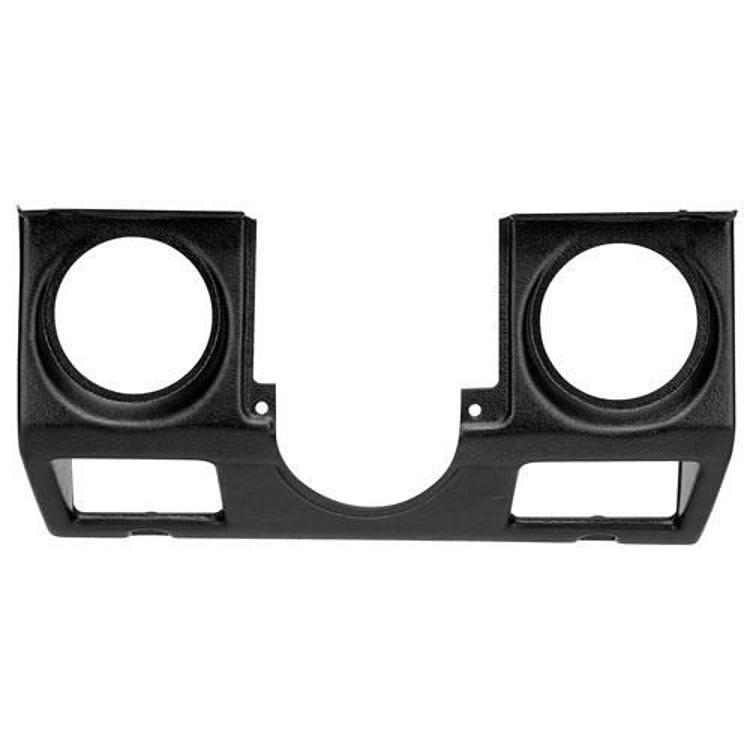

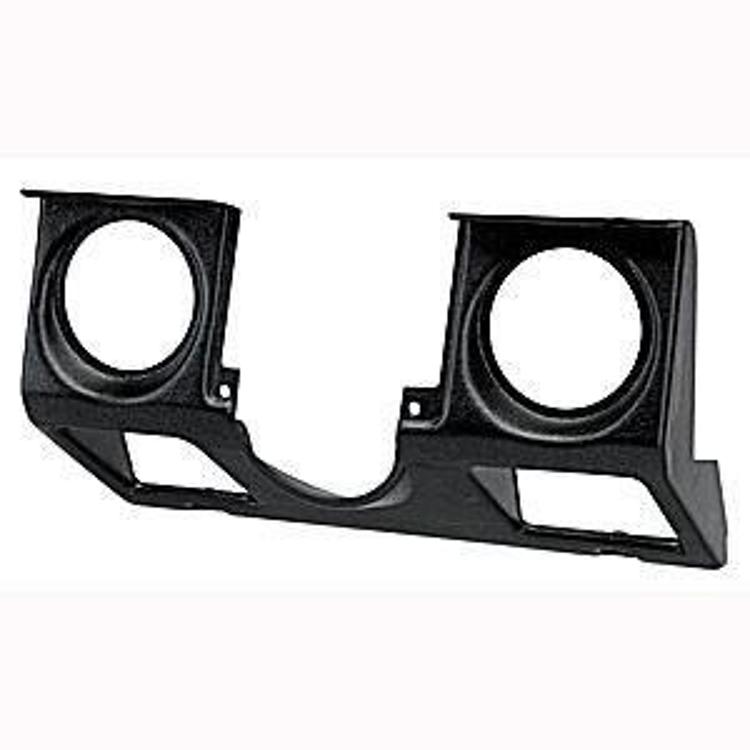

The Auto Meter Gauge Works Black Dual Cluster Bezel, part number 15220, replaces the factory dash bezel on Jeep Wrangler YJ vehicles and holds two 3-3/8 inch Auto Meter gauges. It is a dash mount for the 1987-1995 Wrangler YJ.
The bezel is installed without cutting into the dash. The gauges are not part of this kit.
Key features
- Dual cluster bezel for two 3-3/8 inch Auto Meter instruments
- Replaces the factory dash bezel on YJ Wranglers
- Dash mount with a black finish
- No cutting into the dash is required
Gauge planning for a YJ dash
A dash bezel only sets the position of the gauges; the readings depend on the senders and wiring behind them. Before buying gauges, confirm the sender type matches the oil pressure, temperature or fuel reading you want, and check the wiring for gauge power and ground. Labeling each wire as the original cluster comes out makes reinstallation far easier.
The YJ dash has a fixed opening, so the bezel and gauges should be test-fit together on the bench before final mounting. Look at how the gauges sit once the bezel is in place, including clearance for the steering column and dash fasteners. Keeping the factory hardware in a labeled bag helps if the vehicle is ever returned to stock.
- Match senders to each gauge
- Label wires as the cluster comes out
- Test-fit the bezel and gauges on the bench
- Check clearance near the steering column
Specifications
| Brand | Auto Meter |
|---|---|
| Part number | 15220 |
| UPC | 46074139895 |
| Bezel type | Dual cluster |
| Gauge size accepted | Two 3-3/8 inch instruments |
| Mount type | Dash |
| Finish | Black |
Vehicle fitment
It fits the Jeep Wrangler YJ, 1987-1995, as the replacement for the factory dash bezel. Confirm your year, model and trim before ordering.
Wrangler TJ, LJ and JK models are not covered by this YJ bezel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bezel replaces the factory dash bezel, so it installs in the original position. It is sized for two 3-3/8 inch Auto Meter instruments.
What’s included
The dual cluster bezel.
Not included: the two 3-3/8 inch Auto Meter gauges.
