Overview
The Deluxe Combination Bull Bar 3450230 is a textured steel front bumper with an integrated winch platform for the 2007–2018 Jeep Wrangler (JK). It fits 2-door and 4-door models and updates the JK Deluxe Bull Bar.
The updated bar has changed center hoop and wing return dimensions and replaces the earlier 3450220. The winch platform takes most traditional low mount winches and narrow mount pattern competition winches, and a bracket moves the control box to the center of the bar.
Recovery points, Hi-Lift lifting points and auxiliary light mounting provisions are built in, and the bar is compatible with collision air bags. The textured finish is a powder coat applied over a zinc shield pre-treatment.
Key features
- Integrated winch platform
- Textured Integrit finish; steel construction
- Pre-treated with a zinc shield for corrosion resistance
- Incorporated recovery points and Hi-Lift lifting points

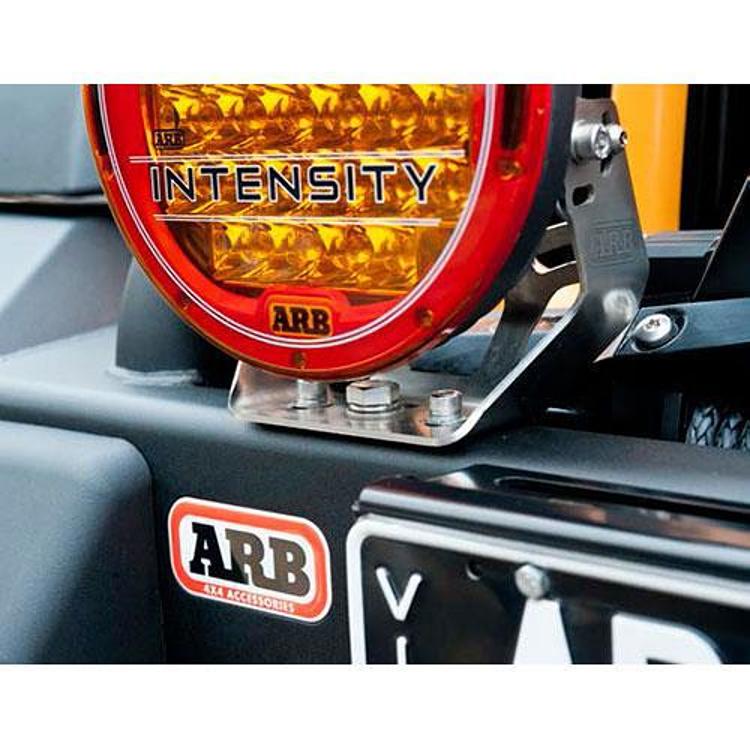

- Auxiliary light mounting provisions
- Control box bracket for the center of the bar
- Added protection with collision air bag compatibility
- For 2-door and 4-door models
Winch platform setup
The integrated winch platform is a clean way to add recovery capability to a JK, but setup decides how well it works. Before bolting on a winch, confirm its mounting pattern suits the platform, then position the control box with the bracket so the cable and controls are easy to reach. A tidy cable path keeps the drum spooling evenly and avoids rubbing.
Recovery points and Hi-Lift lifting points are built in, so they can be used without extra brackets. Still, inspect them after heavy use, and keep the lifting points clear of the winch cable. Auxiliary light mounting provisions suit driving lights, but wire them with their own fused supply.
- Confirm mounting pattern before buying a winch
- Position the control box in reach of the driver
- Inspect recovery points after heavy use
- Keep the cable path clear of the lifting points
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 3450230 |
| UPC | 700007057531 |
| Product type | Front bumper (deluxe combination bull bar) |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | Textured (Integrit texture) |
| Corrosion treatment | Zinc shield pre-treatment before powder coat |
| Winch mount | Integrated platform, included |
| Light mounts | Included |
| D-ring mount | Included |
| Body styles | 2-door and 4-door |
| Fit type | Direct fit |
Vehicle fitment
The bar is made for the 2007–2018 Jeep Wrangler (JK) in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited and X trims.
Other Wrangler generations such as the TJ and JL are not covered by this JK bar. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A bracket is provided so the winch control box can sit in the center of the bar. The bar replaces the factory bumper and is compatible with collision air bags.
What’s included
- Deluxe combination bull bar front bumper, textured
- Integrated winch platform
- Control box bracket
- Light mounts and D-ring mount
Not included: A winch.
