Overview

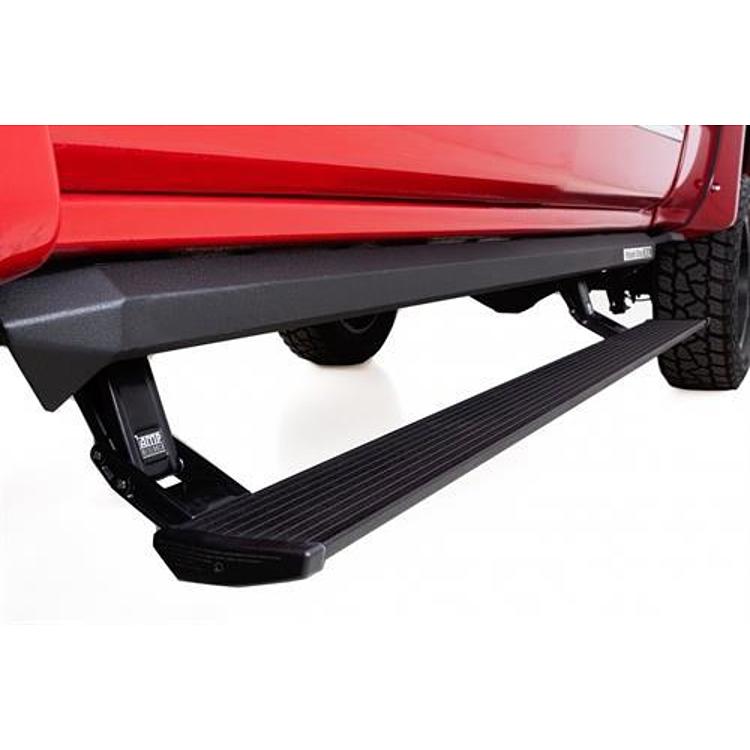

The AMP-Research PowerStep XL, part number 77248-01A, is an automatic power running board for 2018 Ram 2500 and 3500 trucks. AMP built it into a custom rocker rail for lifted trucks, placing the stepping surface 3 inches lower than the original PowerStep. The boards extend when the door opens and retract when the doors close, keeping the side of the truck clear when stowed.
The rail is 3mm thick walled mild steel with a black wrinkle coat. The die-cast aluminum-alloy steps are anodized and PTFE coated, and stainless steel pivot pins support the movement. The bracket assembly is rated to support up to 600 lbs, and AMP backs the board with a 5-year/60,000 mile warranty.
Key features
- Automatic deployment tied to the driver’s door
- Stepping surface 3 inches below the original PowerStep
- Rocker rail integration for a seamless appearance
- 3mm thick walled mild steel rail
- Anodized, PTFE-coated steps built to military spec.
- Self-lubricating bushing designed for low maintenance.
- Low-profile integrated LED lighting
Lifted truck clearance
Lifted Ram trucks sit higher than stock, so a rocker-mounted power board changes how the step sits relative to the ground. A stepping surface set lower than the original can help shorter passengers, but it also needs to clear the ground on uneven terrain. Think about how often the steps will be used and whether the lowest point matters on your routes.
Because the rail is steel with a wrinkle coat, rust protection depends on keeping chips and scrapes touched up. Check the bracket and mounting fasteners after the first few trips, and look at the electric motors and harness for chafing. A steady routine helps the boards deploy evenly and keeps the lights working.
- Touch up chips in the wrinkle coat
- Check bracket fasteners after initial use
- Inspect the harness where it passes the frame
Specifications
| Brand | AMP-Research |
|---|---|
| Part number | 77248-01A |
| UPC | 815410013973 |
| Finish | Black wrinkle coat |
| Rail | 3mm thick walled mild steel |
| Pivot pins | Stainless steel |
| Bracket load rating | Up to 600 lbs |
| Length | Wheel to wheel |
| Warranty | 5-year/60,000 mile |
Vehicle fitment
This part covers the 2018 Ram 2500 in the Big Horn, Laramie, Laramie Longhorn, Limited and SLT trims, and the 2018 Ram 3500 in the same five trims. Tradesman and Power Wagon fall outside this part for both trucks.
Other model years and the Ram 1500 are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The electric motors and wiring harness tie the boards into the truck’s electrical system, so installation includes wiring. After fitting, cycle the boards through a full deploy and retract to check that the motors and LED lights respond.
What’s included
The package includes the automatic running boards, integrated LED lights, electric motors, drive system and wiring harness. Check the package contents against your installation before starting.
