Overview

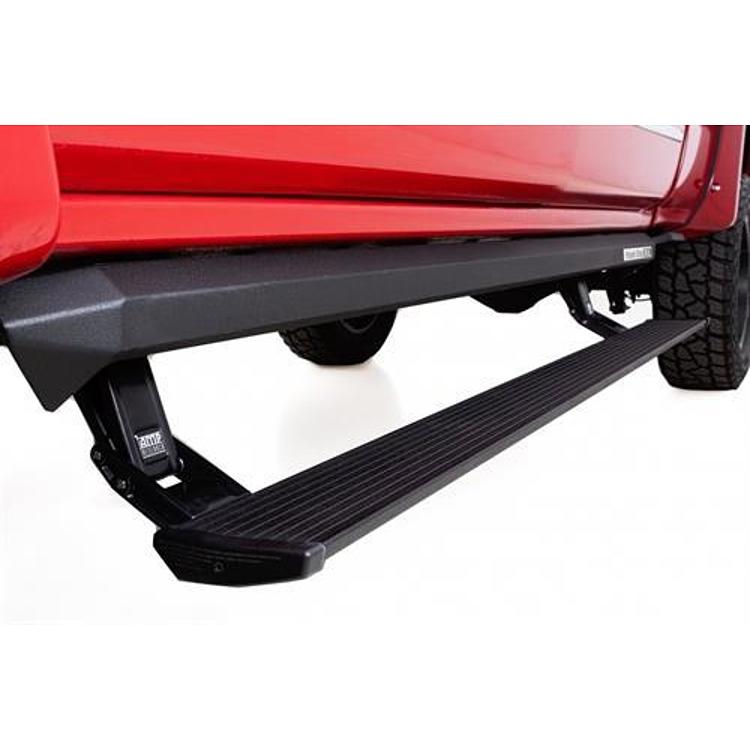

The AMP-Research PowerStep XL, part number 77238-01A, is an automatic power-deploying running board for 2018 Ram 2500 and 3500 trucks. It is built for lifted trucks and integrated into a custom rocker rail, with its stepping surface 3 inches lower than the original PowerStep.
The steel rail is 3mm thick walled mild steel with a black wrinkle coat. The steps are die-cast aluminum alloy with an anodized, PTFE-coated finish. The electric motors, drive system and wiring harness are weatherproof and OEM quality, and the bracket system is rated to support up to 600 lbs.
Key features
- Power deployment: the boards extend on door open and tuck away when the doors close
- Stepping surface 3 inches lower than the original PowerStep
- Custom rocker rail integration for a seamless look
- 3mm thick walled mild steel standard rail
- Stainless steel pivot pins for stability
- Maintenance-free, self-lubricating bushing
- Low-profile integrated LED light system
Lifted trucks and step height
A lowered stepping surface is most useful on lifted trucks, where the reach from the ground to the door can be a long step. Measure the height at your door sill before ordering, and consider how you climb in with a bag or tool box. A board that sits lower can also reduce strain on knees and hips.
Power boards need periodic checks just as any moving part does. Look at the pivot points, motor housing and bracket mounts after the first few weeks. Keep the LED lenses clean and confirm the boards deploy evenly on both sides, since uneven movement often signals a mount or connection problem.
- Measure door sill height before ordering
- Check pivot points periodically
- Confirm even deployment on both sides
Specifications
| Brand | AMP-Research |
|---|---|
| Part number | 77238-01A |
| UPC | 815410013966 |
| Finish | Black wrinkle coat |
| Rail | 3mm thick walled mild steel |
| Steps | Die-cast aluminum alloy, anodized and PTFE coated |
| Pivot pins | Stainless steel |
| Bracket load rating | Up to 600 lbs |
| Length | Wheel to wheel |
| Warranty | 5-year/60,000 mile |
Vehicle fitment
It covers the 2018 Ram 2500 in the Big Horn, Laramie, Laramie Longhorn, Limited, Power Wagon, SLT and Tradesman trims. It also covers the 2018 Ram 3500 in the Big Horn, Laramie, Laramie Longhorn, Limited, SLT and Tradesman trims, but not the Power Wagon.
Other model years and the Ram 1500 are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The motors and wiring harness come with the board, so the installation includes electrical connections to the truck. After mounting, cycle the boards through a full deploy and retract to confirm the motors respond and the LED lights come on.
What’s included
The automatic power-deploying running boards include integrated LED lighting, electric motors, a drive system and a wiring harness. Check the package contents for any separate hardware before starting.
