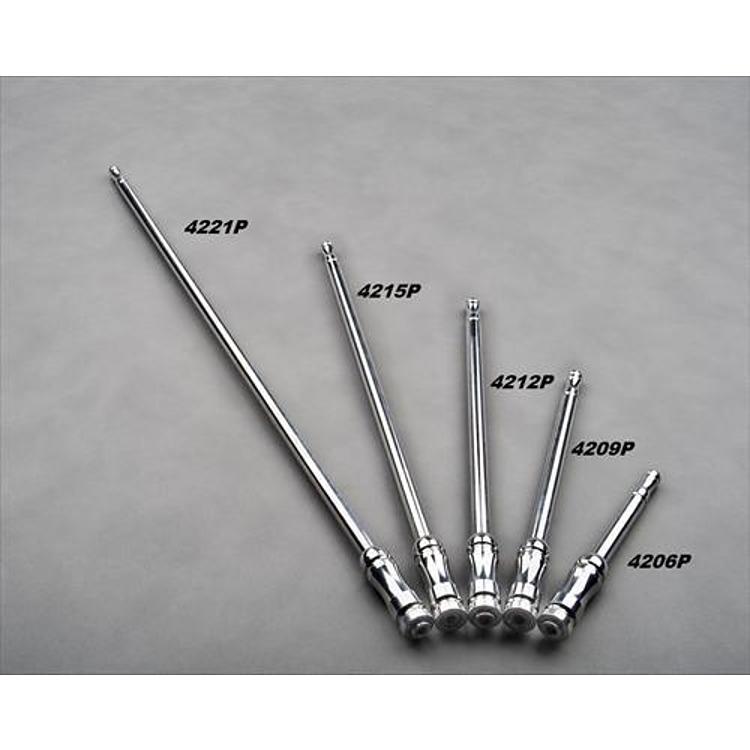

AMI Big Stick Antenna (Polished) – 4212P

AMI

Shop AMI CB Antennas Mounts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Polished 12 in. Big Stick CB antenna
  • 7/16 in. round solid stainless steel shaft
  • 6mm female threads; fixed type
  • Universal fit

Description

Overview

The AMI Big Stick Antenna in polished finish, part number 4212P, is a fixed CB antenna with a 12 in. stainless steel 7/16 in. round solid shaft and a universal fit.

AMI designed the Big Stick for excellent reception. It is made of 7/16 in. stainless steel, and all AMI antennas include 6mm female threads.

Key features

  • 12 in. Big Stick CB antenna
  • 7/16 in. round solid shaft made of stainless steel
  • Polished finish
  • 6mm female threads
  • Fixed antenna type
  • Designed for excellent reception

Tuning and SWR basics

A CB antenna works only as well as its length, grounding and cable run allow. The antenna has to be matched to the radio, and the SWR reading shows how closely that match holds. A high SWR can reduce transmit power and can stress the radio over time, so tuning is part of the installation rather than an optional step.

Tune the antenna with the vehicle in the position it will be used, since body panels and nearby metal change the reading. Adjust the element as the design allows, in small steps, and re-check SWR after each change. Keep the coaxial cable out of the path of moving parts and check connections for corrosion, which can shift the reading over time.

  • Ground the mount to clean bare metal
  • Re-check SWR after changing the mount or cable
  • Keep the cable away from hot exhaust parts
  • Inspect threads for corrosion each season

Specifications

Brand AMI
Part number 4212P
UPC 660936163820
Product type CB antenna
Style Big Stick
Length 12 in.
Shaft 7/16 in. round solid
Material Stainless steel
Color / finish Polished
Threads 6mm female
Antenna type Fixed
Universal fit. Universal fit

Vehicle fitment

The AMI Big Stick 4212P is a universal-fit antenna and is not tied to one vehicle. Its 6mm female threads mean the mount has to match.

Check that your antenna mount has threads compatible with the 6mm female threads before choosing this antenna.

Installation notes

Mount the antenna securely in a location suited to the type of mount you use, and route the coaxial cable away from heat and moving parts. CB antennas must be tuned after installation on the vehicle. Check the standing wave ratio (SWR) with a meter. Keep the antenna clear of overhead obstacles such as garage doors and low branches.

What’s included

One polished Big Stick antenna, part number 4212P.

Not included: Antenna mount, coaxial cable and CB radio.

SKU: ASM4212P Category:

Specification

Shipping weight 0.38 lbs
Package dimensions 19.00 × 1.00 × 1.00 in
brands

Questions & Answers

What size is the AMI Big Stick 4212P antenna?

It is 12 in. long with a 7/16 in. round solid stainless steel shaft, in a polished finish. The threads are 6mm female.

What threads does the AMI Big Stick antenna have?

AMI says all of its antennas include 6mm female threads. You will need a compatible mount, which is not included with the antenna.

Is the AMI Big Stick 4212P a universal CB antenna?

Yes. It is a universal-fit, fixed antenna. It is not tied to one vehicle, but it needs a suitable mount.

What is a practical way to check an antenna's SWR?

Connect an SWR meter between the radio and the coaxial cable, transmit briefly on a clear channel, and read the meter. Keep transmissions short while tuning, and follow the radio's own instructions for safe use.
