Overview

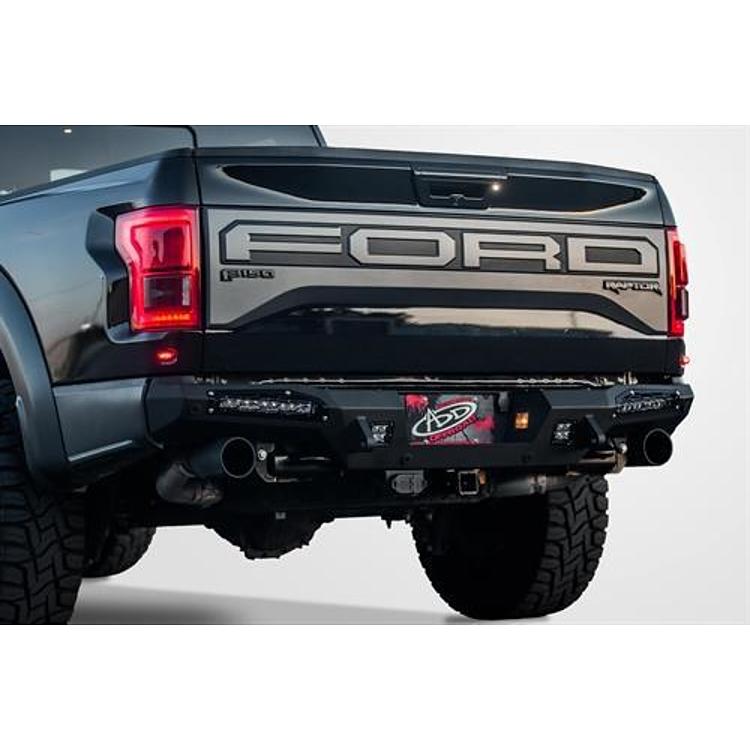

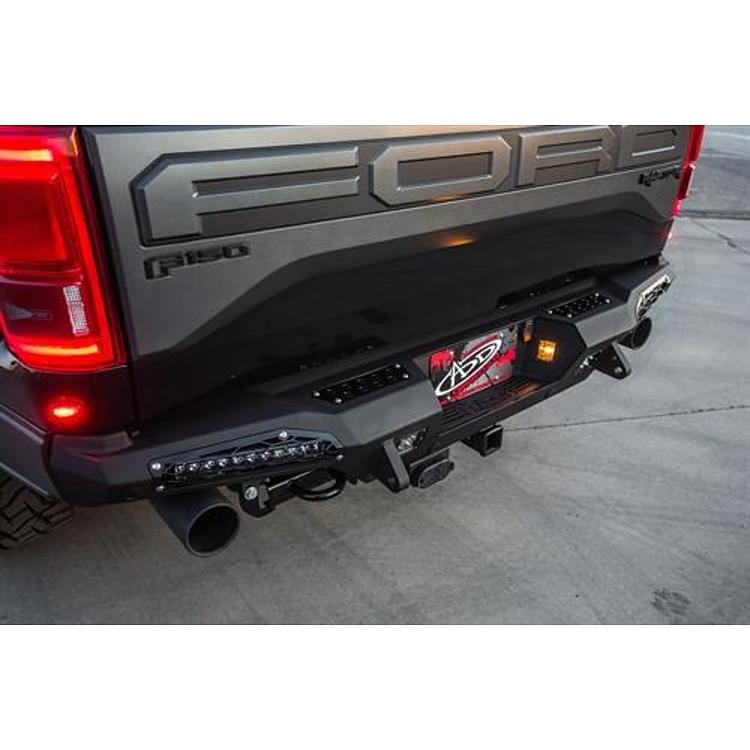

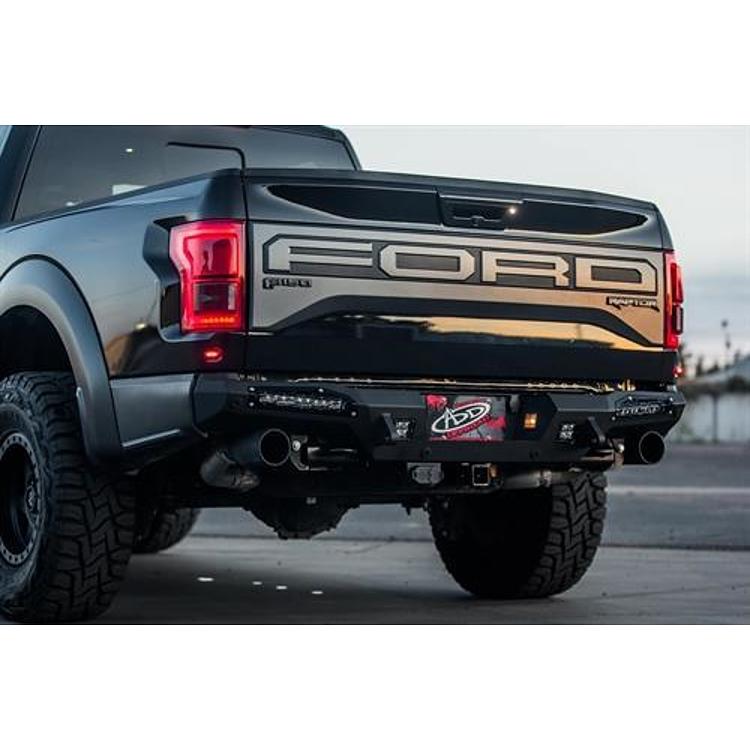

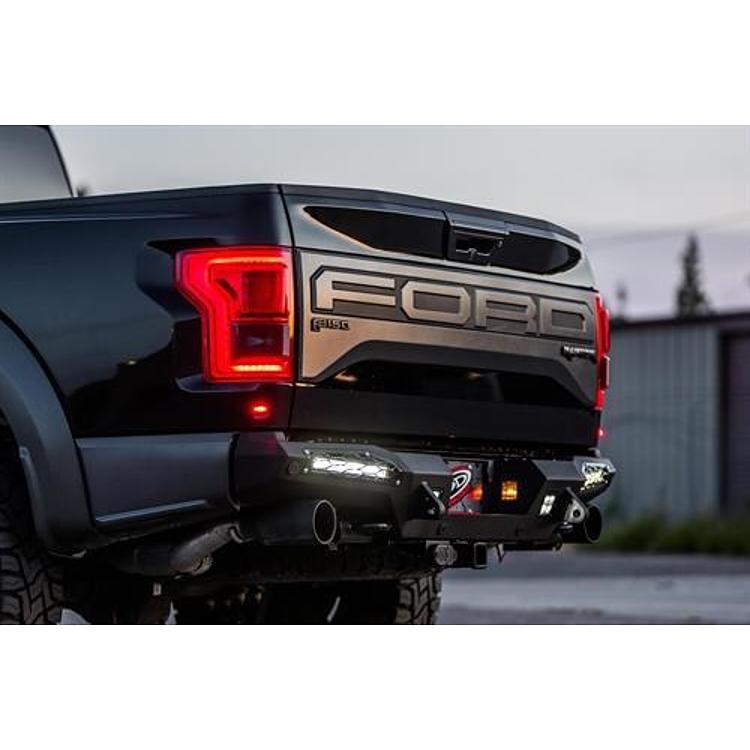

The Addictive Desert Designs HoneyBadger Rear Bumper, part number R117321430103, is a boxed steel rear bumper for the 2017–2018 Ford F-150 Raptor with mounts for 10″ LED light bars.
This version of the HoneyBadger adds 10″ SR LED mounts behind the side accent panels, in addition to dual Dually light mounts. The body uses 1/8″ external steel plating and 3/16″ internal structure plating. Reinforced clevis mounts made from 1″ steel accept a 3/4″ D-ring, and the bumper retains the factory dual exhaust, tow hooks and backup sensors.
Key features
- Mounts for 10″ LED bars behind the side accent panels
- Dual Dually light mounts
- 1/8″ external and 3/16″ internal steel plating in a box design
- Reinforced 1″ steel clevis mounts for a 3/4″ D-ring
- Retains factory dual exhaust and tow hooks
- Compatible with the factory backup sensors
- Dimpled step plates on top
- Made in the USA
Planning the light setup
Rear-mounted LED light bars add work light and visibility for camp setup, trail night driving and hitch work. Before buying bars, think about where they will point and how bright they need to be for your use. Mounting behind side accent panels keeps the lights protected, but it also means wiring must be routed carefully through the bumper and into the vehicle without rubbing or pinching.
Wiring and switching deserve as much thought as the lights. Use a fused circuit sized for the bars and a switch that is easy to reach from the driver’s seat. Seal connectors against water and dust, and secure the harness with clips so it does not sag into the wheel path. Testing every light before a trip prevents problems in the field.
- Choose light bars based on beam pattern and use
- Use a fused circuit sized for the bars
- Seal connectors and clip harnesses securely
Specifications
| Brand | Addictive Desert Designs |
|---|---|
| Part number | R117321430103 |
| UPC | 814849023898 |
| Product type | Rear bumper |
| Model line | HoneyBadger |
| Position | Rear |
| External plating | 1/8″ steel |
| Internal structure plating | 3/16″ steel |
| Clevis mounts | 1″ steel, accept a 3/4″ D-ring |
| LED mounts | 10″ SR LED mounts |
| Finish | Hammer black powder coat |
| Panel color | Satin black |
| Fitment type | Direct fit |
| Receiver hitch | No |
| Tire carrier | No |
| D-ring mounts | Not included |
| Country of manufacture | USA |
Vehicle fitment
It fits the 2017–2018 Ford F-150 Raptor.
Earlier Raptor years and other F-150 models are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The HoneyBadger is designed to retain the factory dual exhaust and tow hooks, and it maintains compatibility with the 2017 Raptor’s factory backup sensors. Dimpled step plates on top of the bumper give a better surface for footwork, and the bumper is made in the USA.
The 10″ SR LED mounts sit behind the side accent panels, so 10″ LED light bars and their wiring are separate items to plan for. The clevis mounts take a 3/4″ D-ring, which is also not included.
What’s included
- HoneyBadger rear bumper with LED and Dually mounts
Not included: LED light bars, dually lights, D-rings and wiring.
