Overview

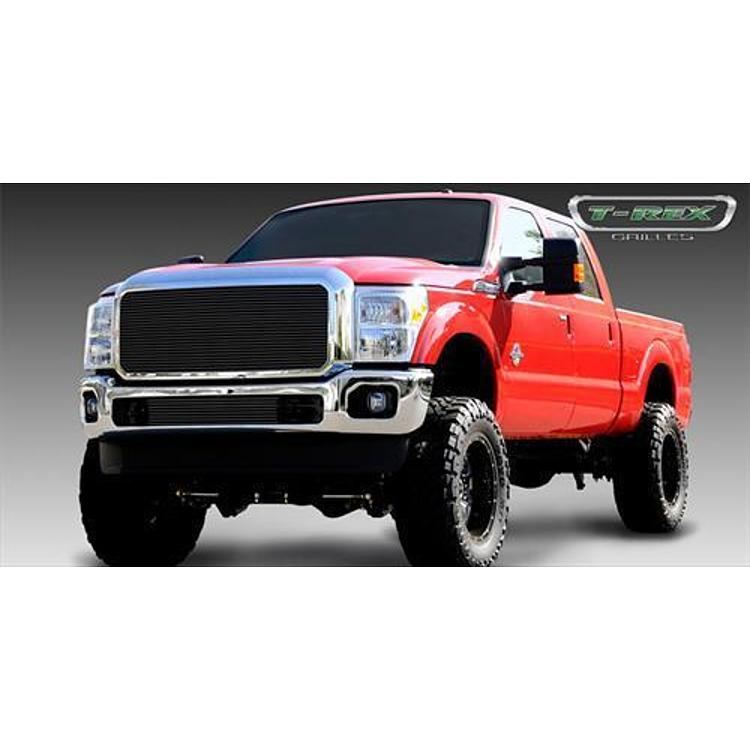

The T-Rex Grilles 20546B is a black billet grille insert for the 2011–2016 Ford F-250 Super Duty and F-350 Super Duty. It is a horizontal style insert that gives the front of the truck a machined, black look across the grille opening.
The billet body is made from T-5 or T-6 aluminum rather than extruded aluminum. It is powder-coated, then polished and cleaned in a three-stage process. The design is bolt-on and needs no cutting.
Key features
- Billet aluminum body, which T-Rex describes as T-5 or T-6 grade rather than extruded aluminum
- Black powder-coat with a glossy finish
- Horizontal bar style for the Super Duty grille opening
- Bolt-on installation with no cutting
- Three-stage polishing and cleaning during manufacturing
- Optional logo plate available
Black billet care and fit
Black powder-coat on billet aluminum shows swirl marks more easily than bare metal, so wash with a soft mitt and dry carefully. Keep the surface free of grit that could scratch the coating when the truck is cleaned. Touch up any chip right away to protect the aluminum underneath.
Super Duty fronts see a lot of towing and job-site debris, so the insert’s bolts can loosen over time. Recheck them after rough roads and at routine service. Clean the seam where the insert meets the grille opening, since trapped grit there can rub the coating away. A logo plate, if fitted, should be checked the same way.
- Wash with a soft mitt and mild soap
- Check bolts after rough roads
Specifications
| Brand | T-Rex Grilles |
|---|---|
| Part number | 20546B |
| UPC | 609579012386 |
| Material | Billet aluminum, T-5 or T-6 grade per manufacturer |
| Finish | Black, glossy powder-coat |
| Style | Horizontal |
| Logo plate | Optional |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty and F-350 Super Duty in the King Ranch, Lariat, XL and XLT trims.
Ford trucks outside those model years and Super Duty generations are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the design is bolt-on with no cutting, installation centers on seating the insert in the grille opening and fastening it. Work with the engine cold and the hood supported, and check the fit before fully tightening the fasteners.
What’s included
Confirm whether the logo plate and fasteners are in the box before fitting the insert.
