Spidertrax Offroad Aluminum Hat (6-1/2 Inch BC) – HAT002

Spidertrax Offroad

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-1/2 inch bolt circle brake hat
  • Available for 8 or 6 lug patterns
  • Made for Spidertrax Rotors and Ultimate Unit Bearings
  • Billet 6061T6 aluminum, part number HAT002

Description

Overview

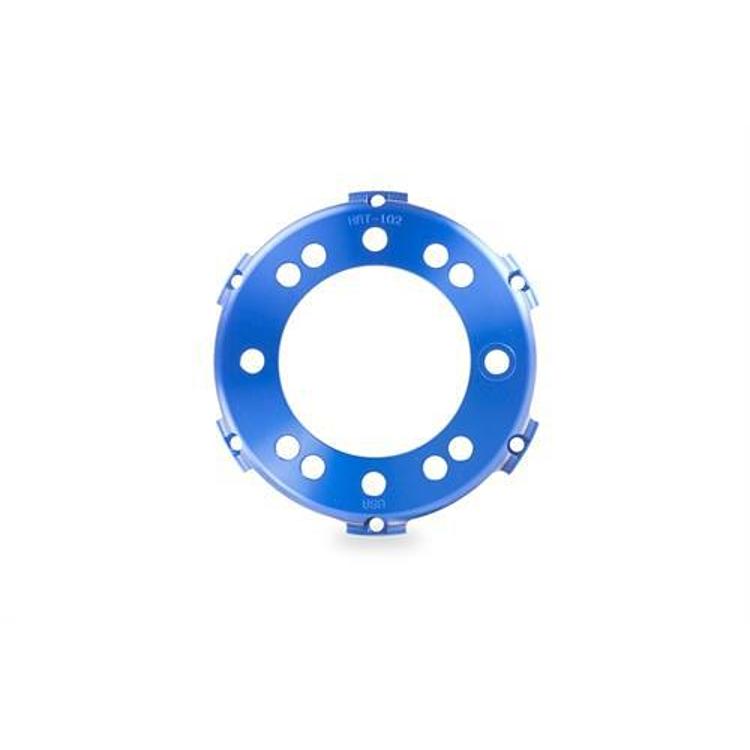

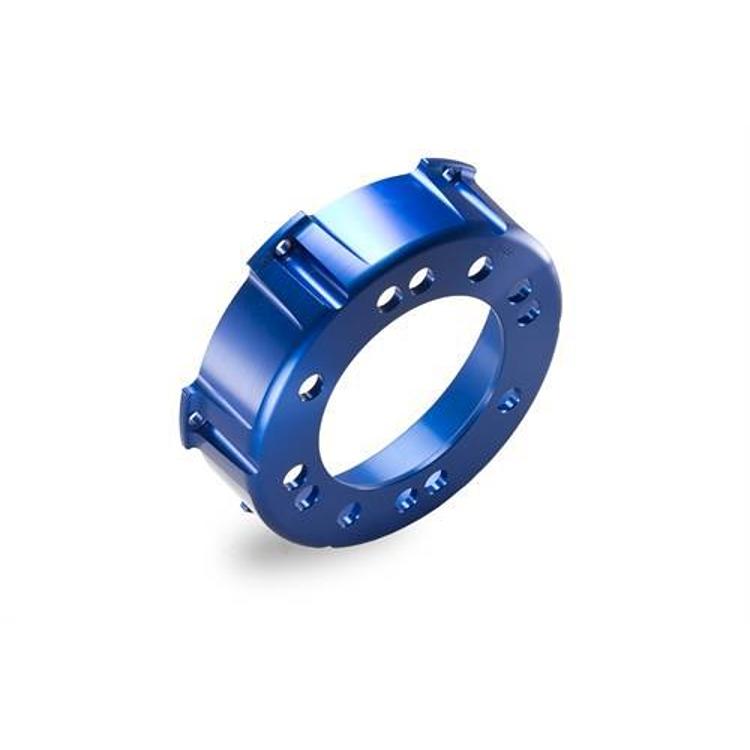

The Spidertrax Offroad HAT002 is an aluminum brake hat with a 6-1/2 inch bolt circle, made for 8 or 6 lug patterns. It is built for Spidertrax Rotors and Ultimate Unit Bearings.

It is made from billet 6061T6 aluminum, weighs under 2 lbs and has a dark blue anodized finish for double corrosion resistance. Rock racers can run it without retrofitting another hat to the bolt pattern.

Key features

  • 6-1/2 inch bolt circle
  • 8 or 6 lug bolt patterns
  • Built for Spidertrax Rotors and Ultimate Unit Bearings
  • Billet 6061T6 aluminum
  • Anodized dark blue finish

Matching hubs and bearings

A hat works as part of a set. The hub, rotor, bearing and hat must agree on bolt circle, lug count and pilot fit, or the assembly will run out of true under load. Measuring the existing hub before buying saves a return trip, especially on trucks that have been modified over several years.

Bearings and rotors often wear at the same time as the hat, so inspect them together. Check bearing play, rotor thickness and runout, and look for heat cracks on the rotor face. Replacing a worn rotor alongside the hat keeps braking smooth and reduces noise after a few trail runs.

  • Measure bolt circle and lug count before ordering
  • Inspect bearings and rotors at the same time
  • Clean the hub face before fitting the hat

Specifications

Brand Spidertrax Offroad
Part number HAT002
UPC 70000686420
Bolt circle 6-1/2 inch
Lug pattern 8 or 6 lug
Material Billet 6061T6 aluminum
Finish Anodized dark blue
Weight Under 2 lbs, per manufacturer description

Vehicle fitment

No vehicle is named for this hat. Because it is built for Spidertrax rotors and bearings on 8 or 6 lug 6-1/2 inch patterns, confirm your hub matches before ordering, and confirm fit for your vehicle’s year, model and trim.

Universal fit wording does not replace matching the bolt circle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match Spidertrax Rotors and Ultimate Unit Bearings to the 6-1/2 inch pattern before assembly, since the hat is built around those parts.

What’s included

A brake hat. Check the package contents against your installation before starting.

SKU: SPIHAT002 Category:

Specification

Shipping weight 2.73 lbs
Package dimensions 10.00 × 10.00 × 3.00 in
brands

Questions & Answers

Is the HAT002 designed for other rotors?

No. It is designed for Spidertrax Rotors and Ultimate Unit Bearings with 8 or 6 lug 6-1/2 inch bolt circle patterns, so match those parts before using it.

What bolt pattern does the HAT002 use?

It is made for 6-1/2 inch bolt circle patterns with 8 or 6 lugs. The lug count is the other part of the match to check against your hub.

Does it fit a specific vehicle?

Confirm fit for your vehicle's year, model and trim before ordering. Match the 6-1/2 inch bolt circle and lug count to your hub before use.

Should the hat and bearings be replaced together?

Often they should be, especially if the bearing is worn or the hat seat shows scoring. Inspect both during service, and replace whichever part shows play, heat damage or uneven wear.
