Overview

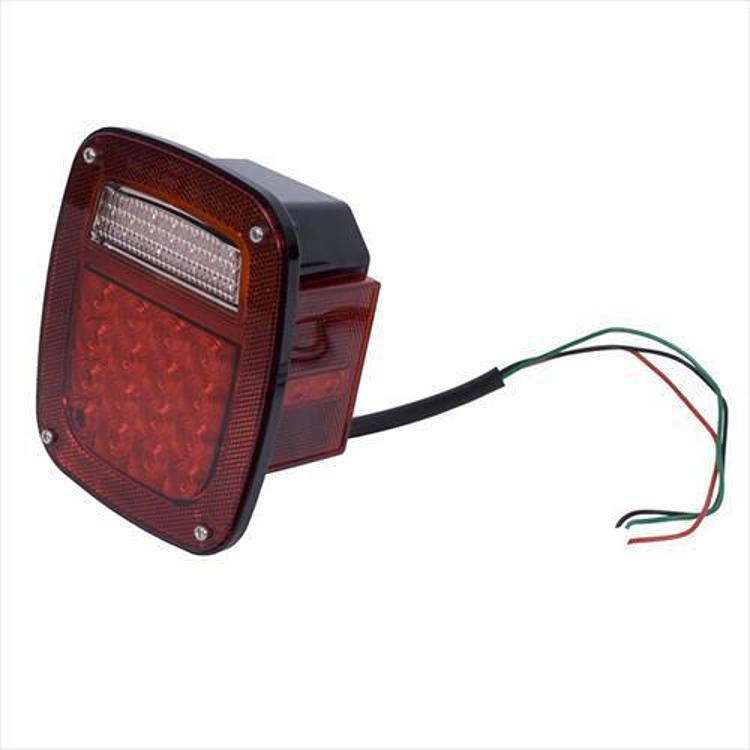

The Rugged Ridge 12403.82 is a passenger side LED tail light assembly for the 1997–2006 Jeep Wrangler TJ and the 2004–2006 Jeep Wrangler LJ.
The lens is impact resistant acrylic over a polycarbonate housing. It is DOT and SAE approved and uses a direct bolt on design. The design earned a 2008 SEMA Global Media Award.
Key features
- Passenger side (Position Right)
- DOT and SAE approved
- Impact resistant acrylic lenses
- Polycarbonate housing
- Direct bolt on design
Passenger side tail light care
Wranglers of the TJ and LJ era have the tail lights mounted on the rear body, where road spray and mud reach the housing and seals. A passenger side lamp near the rear tire takes more grit than the driver side in many cases, so inspect the lens edge and mounting gasket after rough drives. Clean the lens with mild soap rather than harsh solvent that can cloud plastic over time.
When fitting a new lamp, check that the wiring plug latches fully and that the ground wire sits on clean metal. Corrosion at the ground point is a common cause of dim or flickering lights on older Wranglers. If the lamp works only when the body is flexed, the connector or wire is likely the fault rather than the lamp. Keep a spare bulb of the correct type in the vehicle.
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 12403.82 |
| UPC | 804314173487 |
| Position | Passenger side (Right) |
| Light type | LED |
| Lens material | Impact resistant acrylic |
| Housing material | Polycarbonate |
| Certification | DOT and SAE approved |
Vehicle fitment
The manufacturer fitment list names the 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and the 2004–2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon.
Wrangler JK models from 2007 to 2018 and later generations fall outside the covered range. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
The package is one passenger side tail light assembly. Check the package contents against your installation before starting.
