Overview

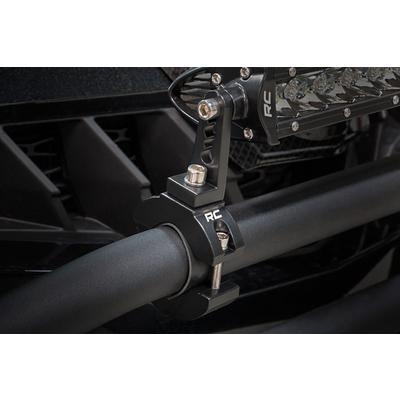

The Rough Country 70172 (part number R/C70172) is a set of universal adjustable LED light mounting clamps sized for 2.5-3″ tubing. The clamps attach standard-size LED lights to a roll cage or other tubular area, and each clamp rotates a full 360 degrees so the light can be aimed as needed.

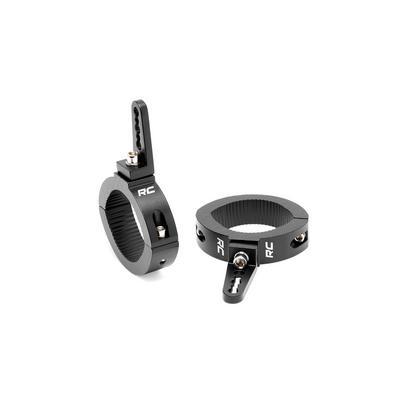

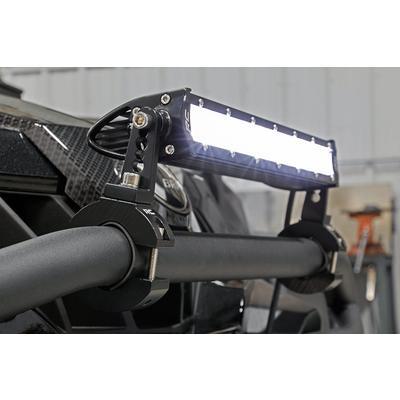

The set contains two clamps, which suits a pair of individual cube lights or a 30-inch light bar mounted across both. The mounts are brackets only, so the lights are separate.
Key features
- Adjustable clamps fit tubular mounting points in the 2.5-3″ range
- Rotate a full 360 degrees for fine aiming of the light
- Two clamps per set
- Works for a pair of cube lights or a 30-inch light bar mounted to both clamps
- The clamps suit roll cages, bumper bars, ATVs, boats and roof racks.
- Black finish
- The mounts carry a Lifetime Replacement Guarantee.
Choosing a light position
Where a light sits affects both its usefulness and its exposure to damage. A light mounted high on a roll cage gives a wider beam but takes more wind and branch strikes, while a lower bumper position puts the light in the path of mud and rock. Pick a spot that gives a clear view of the trail without blocking the driver’s line of sight.
Lights should be aimed with the vehicle loaded the way it normally runs. A light that points slightly down at the trail usually shows the surface better than one aimed straight ahead. Once aimed, tighten the clamps evenly so the light stays where it was set, and check the aim again after rough driving.
Vibration is the main reason mounts loosen. Solid tubing and tight clamps hold up far better than a tube that flexes. Before drilling or cutting any tubing, confirm that the mounting point is rigid and clear of wiring and fuel lines.
- Keep lights clear of the driver’s sight line
- Aim slightly down for better trail surface view
- Confirm the tube is solid before mounting
- Re-check clamp tightness after rough driving
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C70172 |
| Product type | LED light mounting clamps |
| Tube size range | 2.5-3″ |
| Quantity | Two clamps per set |
| Mount location | Universal |
| Color | Black |
| Rotation | 360 degrees |
| Supplied as | Brackets only |
| Fit type | Universal |
Vehicle fitment
The clamps attach to tubing, so the diameter of the tube you plan to clamp to matters. It should fall in the 2.5-3 inch range.
This is not a vehicle-specific part, and no vehicle list is provided. Measure the tube you plan to mount to and confirm the size and light placement before ordering.
Installation notes
Disconnect the vehicle battery before any electrical work and wire the light using a fuse or circuit breaker rated for the load. Route wiring away from heat, sharp edges and moving parts, and protect every connection from moisture. Check local regulations on auxiliary lighting on public roads before driving, and re-check mounting hardware and connections after the first miles of use.
Confirm that the tube you clamp to is solid and rigid, and that the mounted light does not block your view or interfere with moving parts or the vehicle’s restraints.
What’s included

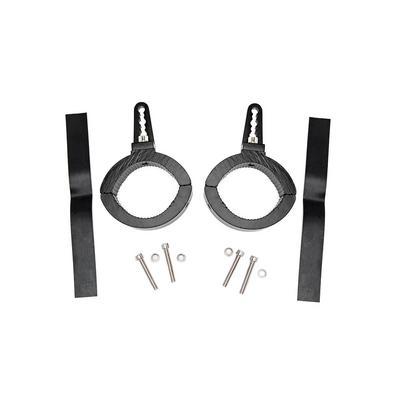

Two adjustable LED light mounting clamps (brackets only).
Not included: Lights, light bars, wiring harnesses and switches.
