Overview

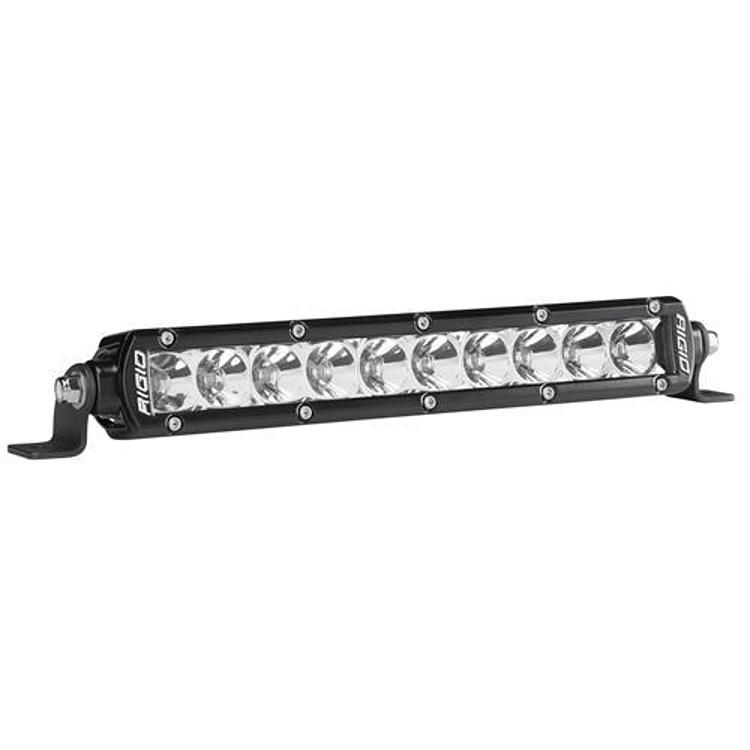

The Rigid Industries SR-Series Single Row 20 Degree Flood LED Light, part number 910122, is a low-profile single row LED light bar with a 20 degree flood beam. It is universal fit, so it is not made for one vehicle. Rigid promotes the SR-Series for racing, police and fire rescue use, and for marine work as well as off-road driving.
A flood beam spreads light across a wide area close to the vehicle, which suits broad work and trail illumination. The bar has an extruded aluminum housing and a polycarbonate lens sealed against weather. The two-piece housing is built to be sturdier and run cooler. Buyers who need wide coverage should confirm the 20 degree flood pattern suits their use before ordering.
Key features
- Single row LED bar with a 20 degree flood pattern
- Two-piece housing that Rigid describes as stronger and cooler running
- User serviceable mounting hardware
- Additional mounting bosses on the underside
- Integrated Deutsch/AMP plug
- Extruded aluminum housing with a sealed polycarbonate lens
- Low-profile form factor
Choosing a flood pattern
A flood pattern fills the area close to the vehicle with even light, which suits trail edges, camp work, and loading at night. It is a poor choice when you need reach down a long straight track, because the light spreads instead of carrying far. Think about the distance you actually need to see, then match the pattern to that distance rather than to the bar’s size.
Mounting height changes the result. A bar mounted higher spreads its flood over more ground, so aim it down slightly to keep the bright zone where you need it. Pairing a flood bar with a spot light is a common setup, and the two beams overlap well when both are aimed at the same point. Wire each light through its own fuse and switch so one can be used without the other.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 910122 |
| Product line | SR-Series Single Row |
| Beam pattern | 20 degree flood |
| Light type | LED light bar |
| Housing | Extruded aluminum, two-piece |
| Lens | Polycarbonate |
| Connector | Integrated Deutsch/AMP plug |
| Fitment | Universal fit |
Vehicle fitment
This flood light is universal fit and is not vehicle-specific. Bracket choice, placement and wiring path decide how it works on a given truck, Jeep or other vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the user serviceable mounting hardware and the bottom bosses to secure the housing. Power it through a fused relay with a switch, and confirm local rules for auxiliary lights on public roads.
What’s included
It includes user serviceable mounting hardware and an integrated Deutsch/AMP plug. Check the package contents against your installation when it arrives.
