Rhino-Rack Pioneer Leg Height Spacers – PLHSPAIR

Rhino-Rack USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Raises a Pioneer platform or tray to fit wider vehicles
  • Raises the Pioneer by about 75 mm overall

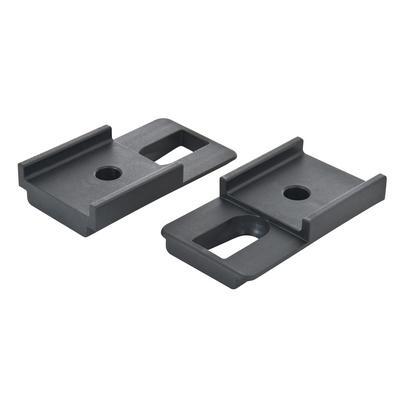

  • Two 10 mm spacer blocks and all hardware included
  • Maximum stack of three spacers, not for roof rack crossbars

Description

Overview

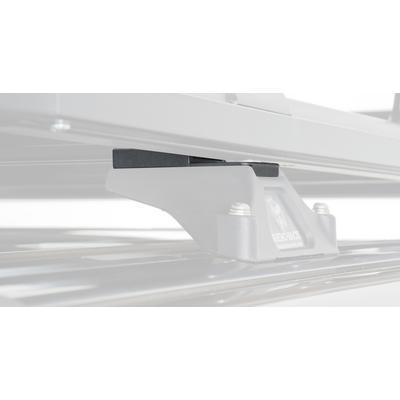

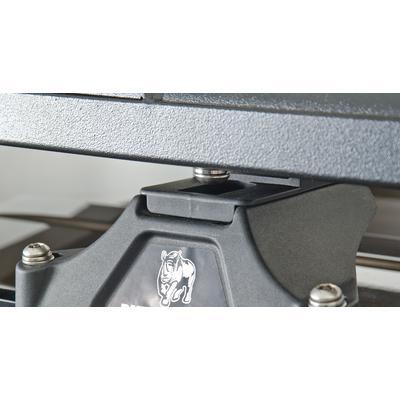

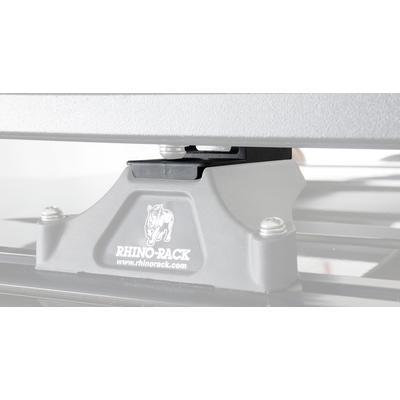

The Rhino-Rack Pioneer Leg Height Spacers (PLHSPAIR) are used to level a Pioneer roof rack system on a vehicle. The spacer sits between a Rhino-Rack RLCP or RL leg and a Pioneer platform or tray, and it raises the Pioneer by roughly 75 mm overall. That extra height lets the legs slide out wider, so one Pioneer can fit a wider range of vehicles, and a narrower tray can be chosen instead of a larger one. The spacers are universal fit rather than made for a particular vehicle.

Key features

  • Raises the Pioneer platform or tray by about 75 mm overall
  • Lets the legs slide out wider to fit more vehicles
  • Allows a narrower tray or platform in place of a larger one
  • Includes two 10 mm spacer blocks and all necessary hardware

Choosing the right setup

Leg height spacers change how far a roof rack sits above the vehicle, which affects clearance for the load, doors and hatch. Before adding height, look at the whole stack: the platform or tray, the legs and the fixings all need to work together, and a taller setup puts more leverage on the mounting points. Measure the gap you need between the roof and the rack before choosing a tray size.

Spacers are often bought alongside a different platform size, since extra height can allow a narrower tray with the same legs. When changing setup, check that cables, roof accessories and any roof-mounted lights still clear the new height. Re-tighten all fixings after the first short drive, and look over the legs and spacers at intervals for loose bolts or wear marks.

Specifications

Brand Rhino-Rack USA
Part number RHOPLHSPAIR
Height gained About 75 mm overall
Included spacer blocks Two, each 10 mm
Maximum stack Three spacers, as recommended by Rhino-Rack
Compatible with Rhino-Rack RLCP or RL legs and Pioneer platforms or trays
Not for Roof rack crossbars

Vehicle fitment

The spacers are universal fit, so they are not built for one vehicle. The right size of Pioneer tray or platform depends on your vehicle, so confirm the choice for your vehicle’s year, model and trim before ordering.

Rhino-Rack states these spacers are not suitable for roof rack crossbars. Confirm the leg and platform combination before ordering.

Installation notes

All the hardware is supplied. Fit each spacer between the leg and the platform or tray. Only one PLHSPAIR is needed. If more height is required, two LHSPAIR spacers can be used with the PLHSPAIR, and Rhino-Rack recommends a maximum of three spacers in the stack.

What’s included

All hardware and two 10 mm spacer blocks.

SKU: RHOPLHSPAIR Categories: , ,

Questions & Answers

Do I need one or two Pioneer leg height spacers?

Rhino-Rack says only one PLHSPAIR is necessary. If extra height is required, two LHSPAIR spacers can be used with the PLHSPAIR, and the stack should not exceed three spacers.

How much height do the Pioneer leg height spacers add?

The spacers raise a Pioneer platform or tray by approximately 75 mm overall. Rhino-Rack recommends stacking no more than three spacers in total, and the extra height lets the legs slide out wider.

Can these spacers be used on roof rack crossbars?

No. The spacers are not suitable for roof rack crossbars. They are used between a Rhino-Rack RLCP or RL leg and a Pioneer platform or tray.

Can I stack more than one spacer with other leg heights?

Yes, within limits. Add LHSPAIR spacers only when more height is needed, and keep the total stack at three spacers or fewer. Check fit after each change and retighten the hardware once the rack is settled.
