Overview

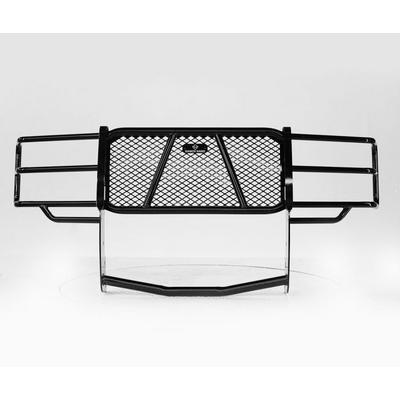

The Ranch Hand Legend Series Grille Guard, part R/HGGC14HBL1S, is a guard for the 2014–2015 Chevrolet Silverado 1500. It is a direct fit.
Two fitment cautions apply. Trucks without tow hooks need a cut access hole, and the guard may not work on some vehicles with sensors. Some trucks may need a parking sensor relocation bar, part PSC16HBP.
Key features
- Legend Series design
- Direct fit for the 2014–2015 Silverado 1500
- Access hole must be cut on trucks without tow hooks
- Parking sensor relocation bar, part PSC16HBP, may be required
Access holes and sensor checks
Some trucks have parking sensors mounted in the front bumper area, and a grille guard can change how those sensors detect objects. Before buying, look at the front of the truck for sensor positions and decide whether a relocation bar will be needed. Once installed, test the sensor alerts at low speed in an open area and confirm the warnings still appear at the expected distance.
Cutting an access hole is permanent, so mark the cut carefully and check clearance behind the guard before cutting. Deburr sharp edges and treat bare cut steel with a matching coating to prevent rust. Inspect the mounting points and sensor bracket after rough trail use, since vibration can loosen fasteners and shift sensors out of position.
Specifications
| Brand | Ranch Hand |
|---|---|
| Part number | R/HGGC14HBL1S |
| Application | Chevrolet Silverado 1500, 2014–2015 |
| Sensor relocation bar | Part PSC16HBP, may be required |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2014–2015 Chevrolet Silverado 1500.
Silverado trucks from other years are not on this list, and sensor-equipped trucks may need the relocation bar. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
On trucks without tow hooks, cut an access hole in the guard. Some trucks may need a parking sensor relocation bar, part PSC16HBP.
What’s included
Check the package contents against your installation before starting, including whether a sensor relocation bar is needed.
