Overview

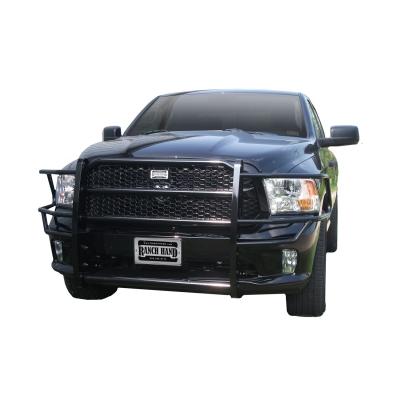

The Ranch Hand Legend Series Grille Guard, part R/HGGD09HBL1, is a black steel guard for the Ram 1500. It is a direct fit for the 2009–2010 Dodge Ram 1500, the 2011–2018 Ram 1500, and the 2019–2024 Ram 1500 Classic.
It is a one-piece welded steel unit made from 12 gauge tubing with a 5/16 inch upright thickness. Four frame mounting points hold it in place, which helps reduce vibration. The punched grille is matched to the Ram make and model, so it uses no expanded metal.
The Ram version of the Legend shares the same welded steel build and four-point frame mounting as the rest of the line. Its punched grille is shaped for the Ram front end.
Key features
- One-piece welded steel construction
- Four frame mounting locations
- 12 gauge tubing with 5/16 inch upright thickness
- Punched grille matched to the Ram make and model
- Black powder coat finish
Before you buy
A grille guard is a front bar that absorbs impacts with brush, deer and other obstacles, so its frame mounts carry real load. Before buying, match the guard to the exact truck generation, because front clips change between model years. Check the clearance around the bumper, headlamps and any winch or sensor the truck already carries. Think about how often you drive off pavement, since heavier brush use increases wear on the mounts.
After installation, recheck the frame mounts after the first few trail runs and periodically after that. Bolts can work loose with vibration, and a loose mount is easier to fix early. Inspect the black powder coat for chips, since bare steel can rust at those spots and should be touched up quickly. Watch the grille for dents, which can pull the mounts out of alignment.
Specifications
| Brand | Ranch Hand |
|---|---|
| Part number | R/HGGD09HBL1 |
| Application | Dodge Ram 1500, 2009–2010; Ram 1500, 2011–2018; Ram 1500 Classic, 2019–2024 |
| Material | Steel |
| Tubing | 12 gauge |
| Upright thickness | 5/16 inch |
| Finish | Black powder coat |
| Weld-on | Not weld-on |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2009–2010 Dodge Ram 1500, the 2011–2018 Ram 1500, and the 2019–2024 Ram 1500 Classic.
Ram 2500 and 3500 trucks, and Ram 1500 years before 2009, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Most applications keep the factory tow hooks. The guard is frame mounted at four points.
What’s included
Confirm the included mounting hardware matches your installation before starting.
