Overview

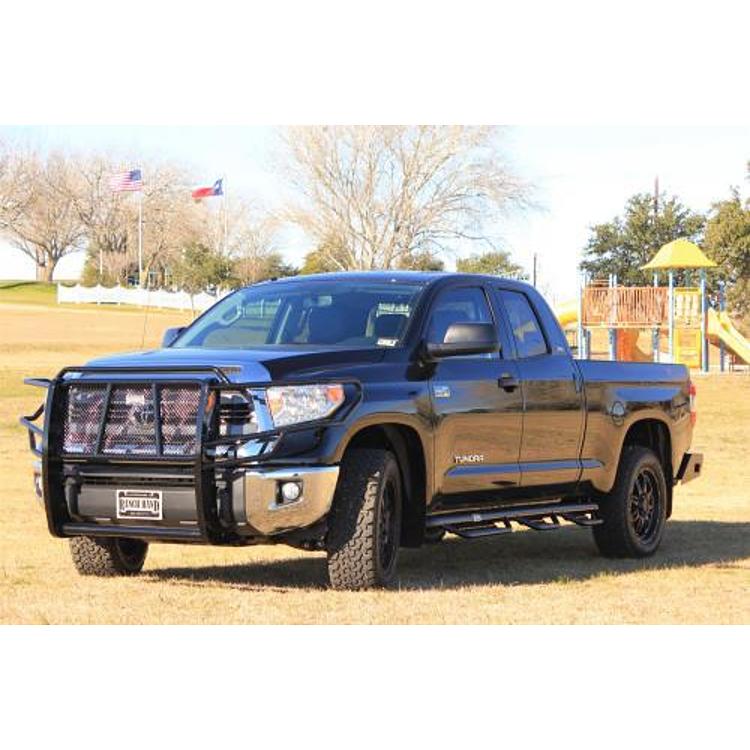

The Ranch Hand Legend Series grille guard, part number GGT14HBL1, is a black powder-coated steel guard with a wrap-around loop and a punched plate grille insert that matches the truck’s own grille. It is made as one fully welded piece and mounts to the vehicle frame.
The guard uses 12 gauge tubing and 5/16 inch uprights, and it attaches at four frame locations. This mounting adds strength and reduces vibration. Most applications keep the factory tow hooks. It is made in the USA.
Confirm the make, model and year for this part number before ordering, since the grille insert is shaped for one truck.
Key features
- Fully welded one-piece design
- 12 gauge tubing, 5/16 inch uprights
- Frame mounted in four places
- Wrap-around loop
- Punched plate grille insert, with no expanded metal
- Black powder coat for corrosion resistance
- Factory tow hooks remain usable on most applications
- Optional black matte finish and rubber pads on the uprights
- Made in the USA
Grille guard maintenance
A grille guard takes hits that would otherwise reach the radiator and headlights, so its mounts carry more load than they seem to. Check the frame mounting points after rough trail use, and look for loose bolts or cracked brackets around the frame attachments. Powder coat helps resist rust, but chips along the bottom should be touched up.
Because the punched insert is shaped to a grille, a light tap can bend the edges and make fitting harder. Keep the insert clean so debris does not sit in the openings. If you add rubber pads or a matte finish later, check that the pads do not block the frame mounts.
- Frame mount bolts after rough trails
- Touch up powder coat chips
- Clean the punched insert openings
Specifications
| Brand | Ranch Hand |
|---|---|
| Part number | GGT14HBL1 |
| UPC | 848917004533 |
| Product type | Grille guard |
| Series | Legend |
| Material | Steel, 12 gauge tubing |
| Upright thickness | 5/16 inch |
| Finish | Black powder coat |
| Construction | 1 piece, fully welded |
| Mounting | Frame mounted at 4 locations |
| Weld on | No |
| Grille insert | Punched plate matched to the vehicle’s grille |
| Origin | Made in the USA |
| Fit type | Direct fit |
Vehicle fitment
The punched grille insert is designed for one make and model, so the guard is vehicle-specific. Match the year, model and trim to the application before ordering.
Check the insert shape against your truck’s grille before buying, since it is made to match one grille.
Installation notes
The guard is frame mounted at four locations and is not weld on. Most applications keep the factory tow hooks.
What’s included
- Legend Series grille guard, one piece
Not included: The optional black matte finish and rubber bumper pads.
