Overview

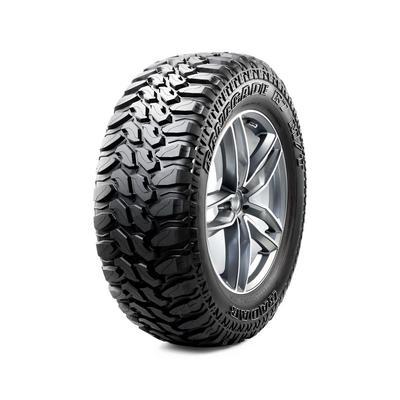

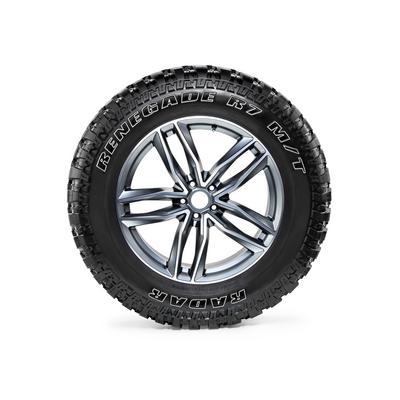

The Radar LT285/75R16 Renegade R7 is a mud terrain tire, part number RADRZD0003, for 16-inch rims. It is built for extreme off-road use on SUVs and light trucks and suits vehicles fitted with lift kits.
The tire has a reinforced 3 ply casing and stone ejector technology, which is designed to keep stones from lodging in the tread and reduce tire damage. Its aggressive pattern pairs a high void ratio with an open shoulder, aimed at drivers who want strong off-road traction without giving up on-road handling.
Key features

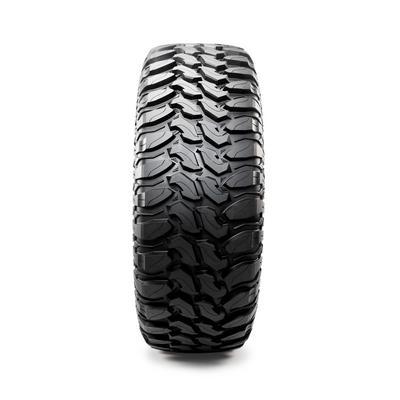

- Mud terrain tread with an aggressive pattern, a high void ratio and an open shoulder design.
- Stone ejector technology that Radar says prevents stone retention and tread damage.
- Reinforced 3 ply casing construction for high durability.
- Special tread compound and a wide footprint.
- It is designed for traction in all conditions and for resistance to damage.
- It is designed for longer tread life and braking on all surfaces.
Tire pressure and load
Pressure is one of the most important settings on a mud tire. Check it cold before each outing and set it to the rating that matches the load on your vehicle. Lower pressures can help traction on soft ground, but they raise the risk of the bead unseating and of sidewall damage when the tire is run at speed.
Pressure should be raised again before leaving the trail and before highway driving. Heat builds in aggressive tread blocks during long runs, so recheck after a long drive. Keeping a gauge and a small compressor in the vehicle makes these checks routine.
- Check cold pressure before each outing
- Raise pressure before highway driving
- Recheck after long runs when tires are warm
- Match pressure to the vehicle load
Specifications
| Brand | Radar Tires |
|---|---|
| Part number | RADRZD0003 |
| Style | Renegade R7 |
| Tire size | LT285/75R16 |
| Tread type | Mud Terrain |
| Aspect ratio | 75 |
| Section width | 285 |
| Tire width | 11 |
| Tire height | 33 |
| Rim diameter | 16 Inches |
| Most popular size | 285x75R16 |
| Casing | 3 ply reinforced |
Vehicle fitment
No specific year, make or model is confirmed for this tire. It is a Universal Fit tire for SUVs and light trucks, including lifted vehicles. Match the LT285/75R16 size to your rim diameter and load rating.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mounting and balancing a 16-inch tire is normally handled by a tire shop, and inflation should follow the pressure rating that matches your vehicle’s load.
What’s included
The item is one tire. No rim, valve stem or balancing weight comes with it.
Not included: the wheel or rim this tire mounts on.
