Prothane Motion Control Sway Bar Bushings (Red) – 1-1107

Prothane Motion Control

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Red polyurethane sway bar bushings for the front
  • Made for a 1-1/8 inch diameter bar
  • Includes link and bar bushings plus synthetic grease
  • Manufacturer fitment list: 1987–1995 Jeep Wrangler (YJ)

Description

Overview

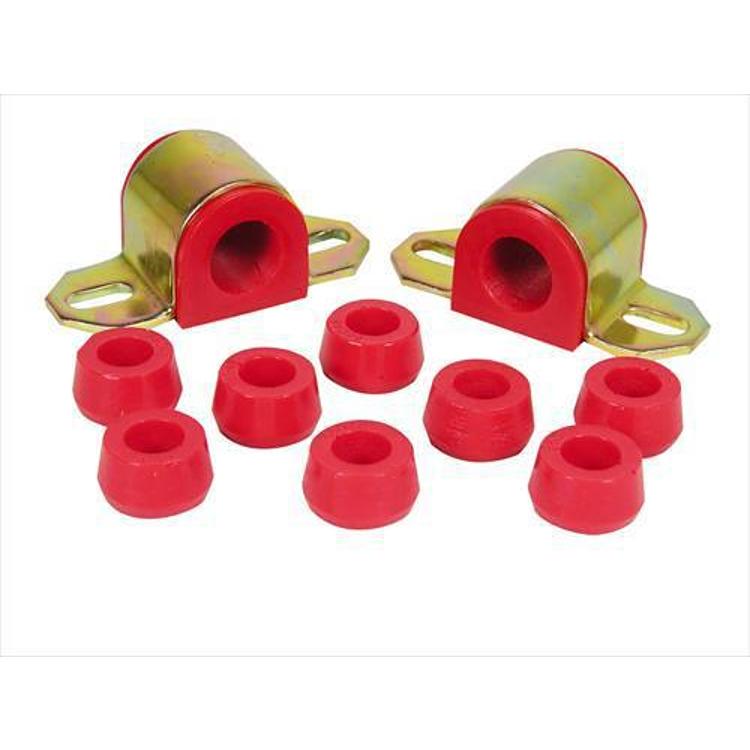

The Prothane Motion Control 1-1107 is a red polyurethane front sway bar bushing kit for a 1987–1995 Jeep Wrangler (YJ). It replaces worn stock sway bar bushings on a bar with a 1-1/8 inch diameter.

The polyurethane is built to hold up against oils, road salt, chemicals, ozone and smog. The bushings are designed to reduce body roll during cornering.

Key features

  • Red polyurethane bushings for the front sway bar
  • Includes sway bar link bushings, sway bar bushings and synthetic grease
  • Made for a 1-1/8 inch diameter bar
  • Manufacturer fitment list covers 1987–1995 Jeep Wrangler (YJ)

Polyurethane bushings and upkeep

Polyurethane is firmer than rubber, so a kit like this keeps the front bar better located under cornering and reduces flex in the mounts. That firmness also means more road noise reaches the cabin, and the bushings rely on lubrication to stay quiet. Use the synthetic grease included in the kit for the bushing contact surfaces.

Wrangler YJ front ends often show wear in the end links as well as the bar bushings, so inspect the link ends when the bar is out. Check the bar for rust before reinstalling and keep the bushing bores clean. Recheck the bracket bolts after the first few drives, because the bushings settle as they seat.

  • Squeaks from dry bushings
  • Clunks from loose end links
  • Rust on the bar at bushing contact points
  • Bracket bolts that loosen after installation

Specifications

Brand Prothane Motion Control
Part number 1-1107, also numbered D/I1-1107
UPC 70000422593
Position Front
Color Red
Type Polyurethane
Bar diameter 1-1/8 inch

Vehicle fitment

It fits the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.

The list does not include the TJ, JK or JL Wranglers or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Wrangler installations reuse the vehicle’s existing metal brackets, so the brackets are not replaced. Support the vehicle securely before removing the sway bar.

What’s included

Sway bar link bushings, sway bar bushings and a tube of synthetic grease.

Not included: the metal brackets, which are reused on Wrangler applications.

SKU: D/I1-1107 Category:

Specification

Shipping weight 0.45 lbs
Package dimensions 11.80 × 5.60 × 1.90 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 1-1107 kit for a Jeep Wrangler YJ?

Yes. The manufacturer fitment list gives the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Confirm your year and trim before ordering.

What does the kit include?

It includes sway bar link bushings, sway bar bushings and a tube of synthetic grease. Metal brackets are not included, since Wrangler installs reuse the original brackets.

What bar diameter does it fit?

The bar diameter is 1-1/8 inch. Measure your bar before ordering, since the part number alone does not confirm the bar size.

Do polyurethane sway bar bushings need regular greasing?

Yes, they benefit from fresh grease during bushing service and whenever squeaks begin. Use the synthetic grease supplied with the kit, and avoid mixing in unknown greases that may not suit polyurethane.

Will polyurethane bushings make the ride harsher?

They can feel firmer over rough pavement than rubber. The firmer feel tends to give more direct steering response on paved roads. If the ride feels too stiff, check whether other front suspension parts are worn, since that also changes how the bar feels.
