Pro Comp 32-Piece 14x1.5 Lug Nut Kit (Black) – 16145B

Pro Comp Alloy Wheels

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 32-piece 14mm x 1.5 lug nut kit in black
  • Spline style lug nuts designed for 8-lug wheels
  • Includes a socket key and valve stems
  • Smooth black finish

Description

Overview

The Pro Comp 32-piece lug nut kit, part number PXA16145B, has 14mm x 1.5 spline style lug nuts in a smooth black finish, and it is designed to fit 8-lug wheels. The kit also includes a socket key and valve stems.

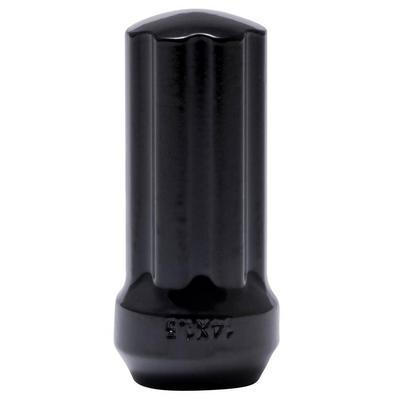

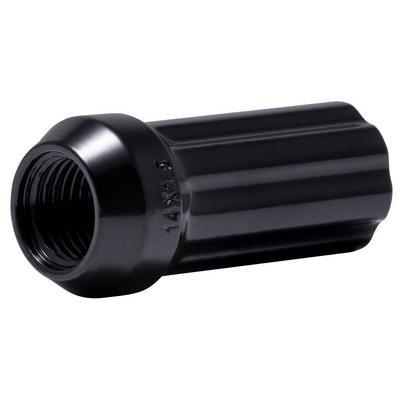

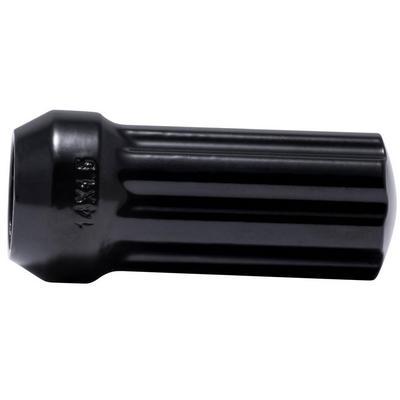

Spline nuts have grooves along the shank that seat into a matching spline hole in the wheel, which helps the nuts stay firmly on the rims. Match the nut style to the wheel as well as the thread size.

Spline lug nuts have grooves, called splines, cut along the shank. Those grooves bite into the lug hole of a wheel that is made for a matching spline seat, which is why the nut style has to match the wheel rather than just the thread size.

Key features

  • 32-piece kit
  • Spline style for a secure hold on the rims
  • Smooth black finish
  • Designed for 8-lug wheels
  • Includes a socket key
  • Includes valve stems

Checking spline seats

Spline and conical seat nuts look similar, but they do not interchange safely. Before fitting spline nuts, check the wheel’s seat style, since the thread size alone does not show it. A nut with the wrong seat can seat unevenly and loosen over time.

Keep the socket key with the kit so each wheel can be removed and reinstalled without damaging the nuts. Check the studs for thread damage before fitting new nuts, and clean any dirt from the seats.

Torque matters as much as fit. Tighten nuts in a star pattern and re-check them after the first few drives. Inspect nuts for cracks, rounded sockets or corrosion, and replace any that look worn.

  • Match lug count and thread size
  • Confirm the wheel’s seat style
  • Clean seats before fitting
  • Re-check after the first drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA16145B
Count 32 pieces
Size 14mm x 1.5
Style Spline
Color Black
Type Lug nut kit
Wheel fit 8-lug wheels

Vehicle fitment

This kit is designed for 8-lug wheels and is sold as universal fit. Match it to your wheels by lug count and thread size, 8 lugs and 14mm x 1.5, rather than by vehicle model.

Lug count and thread size are the two measurements that decide whether a lug nut kit is usable, so check the studs on your hub before ordering a 32-piece kit for a set of wheels.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

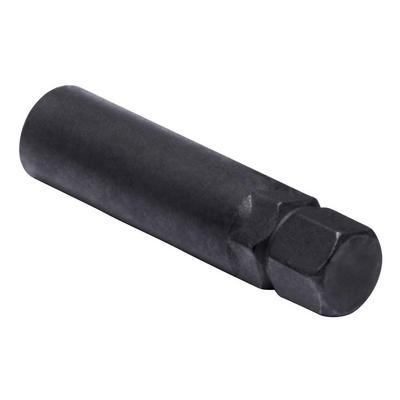

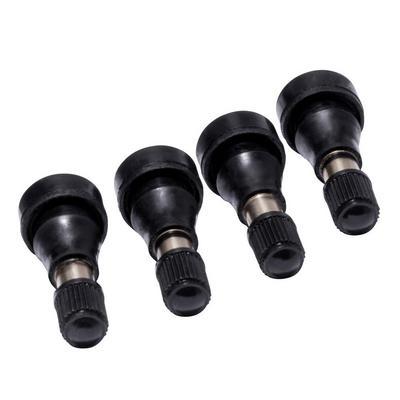

The included socket key is the tool for these spline nuts, so keep it with the kit. Keep the valve stems with the kit as well.

Confirm that the wheel uses a spline seat before fitting these nuts, since the 14mm x 1.5 thread size alone does not show which seat style the wheel needs. Nuts with the wrong seat can look right and still not hold the wheel properly.

What’s included

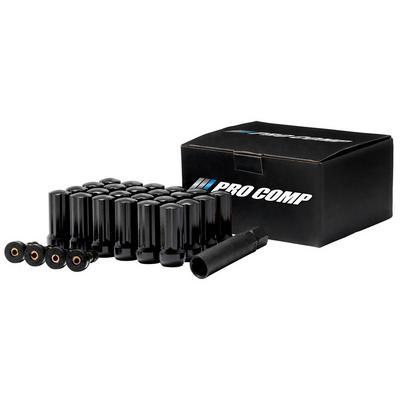

A 32-piece kit with a socket key and valve stems. Check the package contents against your installation before starting.

Questions & Answers

How many pieces are in the Pro Comp PXA16145B lug nut kit?

The kit has 32 pieces. It also includes a socket key and valve stems. Count the contents when the package opens so you know everything arrived before you start installing the spline nuts.

What thread size are the Pro Comp lug nuts?

They are 14mm x 1.5, in a spline style with a black finish. Pro Comp lists them for 8-lug wheels.

Does the kit include a tool?

Yes. It includes a socket key for installing the spline nuts, and valve stems come in the kit too. Keep the socket key with the kit so it is on hand for each wheel you service.

Can spline nuts be used on a wheel with a conical seat?

No. Spline nuts are made for a spline seat, and a conical seat needs a different nut shape. Confirm the seat style on your wheel before fitting any nut from this kit.

How often should lug nuts be checked?

Check them after the first few drives on new wheels, then at each tire rotation. Look for looseness, cracks and damaged sockets, and re-tighten them to the correct torque.
