Overview

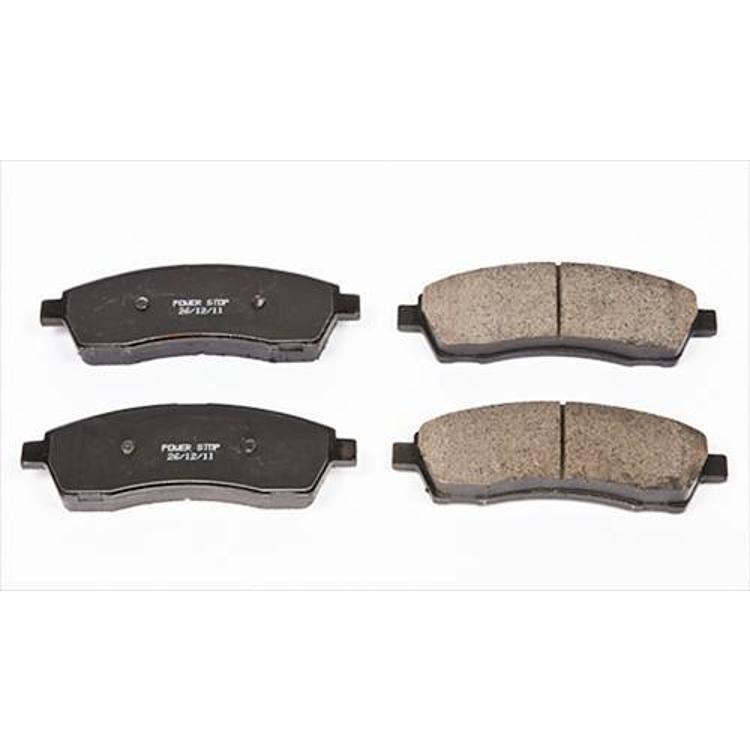

The Power Stop Z16 Evolution Scorched brake pad set, part number 16-757, is a rear ceramic disc brake pad kit for the 2000–2005 Ford Excursion and the 1999–2004 Ford F-250 Super Duty and F-350 Super Duty.
The pads use a ceramic friction formula designed to keep wheels cleaner. The surfaces are thermal scorched so the pads bed in quickly, and the shims pair two rubber layers with constrained steel to damp brake noise. The set is a direct-fit upgrade for the stock caliper.
Key features
- Ceramic friction formula with low dust
- Thermal scorched pad surface for fast break-in
- Positive mold technology for even friction density
- Dual rubber layer shims over constrained steel
- Chamfers and slots made to OEM specifications
- Direct-fit upgrade for the stock caliper
Rear axle pad care
Rear brakes on heavy-duty trucks absorb less braking force than the front but still do real work, especially with a trailer. Ceramic pads with a thermally scorched surface start to grip after a short bed-in, and they leave less dust on the rear wheels than many other compounds.
Replacing pads on both sides of the rear axle at the same time keeps braking even. While the wheels are off, measure rotor thickness, check for grooves or heat spots, and clean the pad contact points on the bracket so the new pads move freely.
A rear pad that has worn to its wear indicator, a squeal during light braking or a pedal that feels softer than normal are common signs that the rear axle needs attention. Address them promptly, since a rear caliper that sticks can overheat.
- Clean and lubricate slide pins
- Inspect parking brake cables and linkage
- Check rotor runout before reinstalling
Specifications
| Brand | Power Stop |
|---|---|
| Part number | 16-757 |
| UPC | 792088475855 |
| Product line | Z16 Evolution Scorched brake pads |
| Pad material | Ceramic |
| Position | Rear |
| Caliper | Stock |
| Fit type | Direct fit |
| Type | Upgrade |
| Surface treatment | Thermal scorched |
| Dust level | Low dust |
| Shims | Dual rubber layers over constrained steel |
| Manufacturing | Positive mold technology, TS16949, OEM specifications with chamfers and slots |
Vehicle fitment
The 16-757 fits the rear axle of the 2000-2005 Ford Excursion, the 1999-2004 Ford F-250 Super Duty and the 1999-2004 Ford F-350 Super Duty. The Excursion years run through 2005 and the Super Duty years run through 2004. The rear pads do not fit the front axle.
The 16-757 is a rear set, so it does not cover the front axle, and the listed years stop at 2005 for the Excursion and 2004 for the Super Duty trucks. Later Super Duty model years are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear pads in set 16-757 arrive with thermally scorched faces, which Power Stop designed for a fast break-in, so expect the pads to settle in quickly on the first drives.
Replace pads on both wheels of the axle together when fitting set 16-757, and check the rotors and caliper hardware at the same time because worn parts shorten pad life.
