Overview

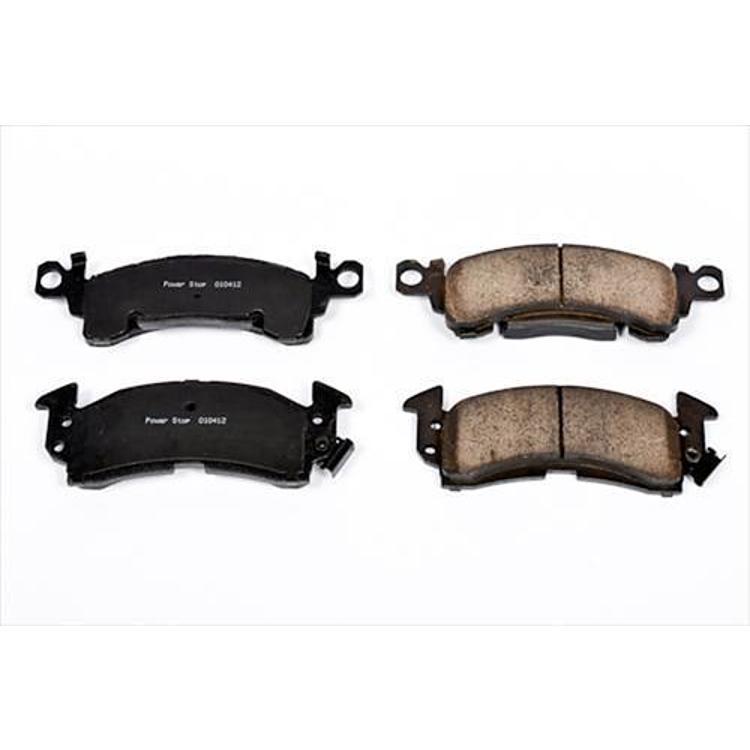

The Power Stop 16-052 is a set of front Z16 Evolution ceramic brake pads for classic 1969-1991 Chevrolet and GMC trucks and SUVs, plus 1974-1991 Jeep Wagoneer, Cherokee, J10 and J20 models.
The Z16 Evolution pad uses a carbon-ceramic compound with thermally scorched surfaces for quick break-in, and shims designed to keep braking quiet.
The pads use rubber-backed shims designed to reduce noise compared with plain steel shims.
Key features
- Front pads for a long list of 1969-1991 GM trucks and select Jeeps
- Thermal scorched pad surface for fast break-in
- Dual rubber layer shims over constrained steel to eliminate noise
- Positive mold technology for uniform friction density across the pad
- Carbon-ceramic compound with a low dust formulation
- Manufactured under TS16949 standards to OEM specifications, including chamfers and slots
Break-in and bedding
Ceramic pads benefit from a proper bedding procedure. Make a series of moderate stops from a moderate speed to transfer an even layer of pad material onto the rotor. Avoid hard stops immediately after the pads are installed, and let the brakes cool between the first few sets.
Rotors and pads wear together, so inspect both at each service. Look for grooves, hot spots or a pulsing pedal, which can point to uneven pad wear. Scorched pad surfaces may change color during the first few miles, which is part of the thermal break-in process.
Replace pads when the friction material is thin or when the wear indicator sounds. Replace both front sides together for even braking, and check the caliper slide pins for smooth movement while the wheel is off.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | 16-052 |
| UPC | 792088475572 |
| Product line | Z16 Evolution Ceramic Clean Ride Scorched |
| Position | Front |
| Caliper | Stock |
| Fit type | Direct fit |
| Type | Upgrade |
| Friction material | Carbon-ceramic |
| Shims | Dual rubber layers over constrained steel |
Vehicle fitment
The 16-052 covers 1969-1991 Chevrolet trucks and SUVs, including the Blazer, C10, C20, C30, K10, K20, K5 Blazer, El Camino, R and V series, Suburban, and matching GMC C, K, R and V trucks, Jimmy and Sprint. Jeep fitment includes the 1974-1983 Cherokee (SJ), 1984-1989 Cherokee (XJ), 1984-1991 Grand Wagoneer (SJ), 1974-1988 J10, 1977-1988 J20 and 1974-1983 Wagoneer (SJ). XJ Cherokee coverage ends in 1989, so 1990-2001 XJ models are not covered by this part number. Most GM entries end in 1986 or earlier. Confirm fit for your vehicle’s year, model and trim before ordering.
The XJ Cherokee is listed only through 1989, so 1990-2001 XJ models are not covered by this part number. Most GM entries end in 1986 or earlier. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
These pads are a direct-fit design that works with the stock caliper, so no caliper change is part of the job. Replace both sides of the axle at the same time.
