Overview

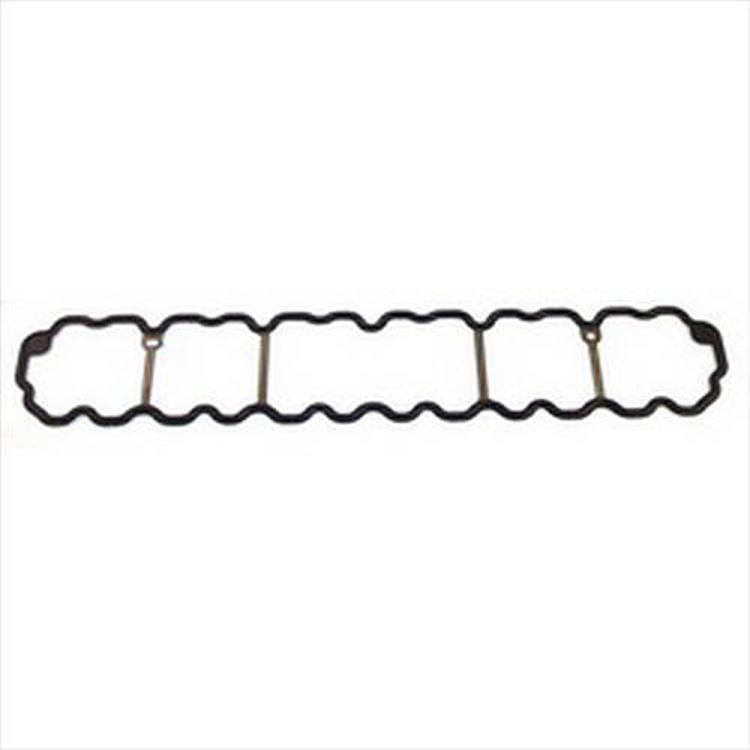

The Omix-Ada 17447.09 is a valve cover gasket for 4.0L 6 cylinder engines in Jeep vehicles from 1996 to 2006. It fits Cherokee XJ, Grand Cherokee ZJ and WJ, and Wrangler TJ and LJ models.
It is a direct fit for these Jeep models and is built to original design specifications.
Key features
- Made for 4.0L 6 cylinder engines
- Direct fit for the vehicles it covers
- Built to original design specifications
- Covered by a limited five year warranty from Omix-Ada
Diagnosing valve cover leaks
On a 4.0L six, the valve cover sits high in the engine bay, so oil that escapes can run down the block and collect near the starter or the bellhousing. Before replacing a gasket, trace the leak. Oil at the spark plug wells usually points to tube seals rather than the cover gasket, and oil on the outside of the cover at one end often means the gasket has lost its compression.
Heat is the main cause of age-related leaks. Repeated cycles of heating and cooling harden rubber gaskets and can loosen the cover bolts over time. Replacing a gasket is easier when the cover, the head rail and the bolt threads are all cleaned first. Check the PCV valve while the cover is off, because a clogged valve can build crankcase pressure and push oil past seals.
- Clean the cover bolt threads before reinstalling
- Inspect the spark plug tube seals for oil
- Replace the PCV valve if it rattles or is stuck
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17447.09 |
| UPC | 804314140557 |
| Part type | Valve cover gasket |
| Engine | 4.0L 6 cylinder |
| Fit type | Direct fit, per manufacturer |
| Warranty | Limited five year warranty from Omix-Ada |
Vehicle fitment
Listed models and years: Grand Cherokee ZJ from 1996 to 1998, Cherokee XJ from 1996 to 2001, Grand Cherokee WJ from 1999 to 2004, Wrangler TJ from 1997 to 2006 and Wrangler LJ from 2004 to 2006.
Wrangler YJ and JK models, and Liberty KJ, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the valve cover gasket under part number 17447.09 is described.
