Omix-ADA Rear Drum Brake Service Kit – 16766.03

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear drum brake service kit for the Dana 44 with 10 x 2.5 drums
  • Fits 1986–1989 Cherokee XJ and 1988–1993 Wrangler YJ

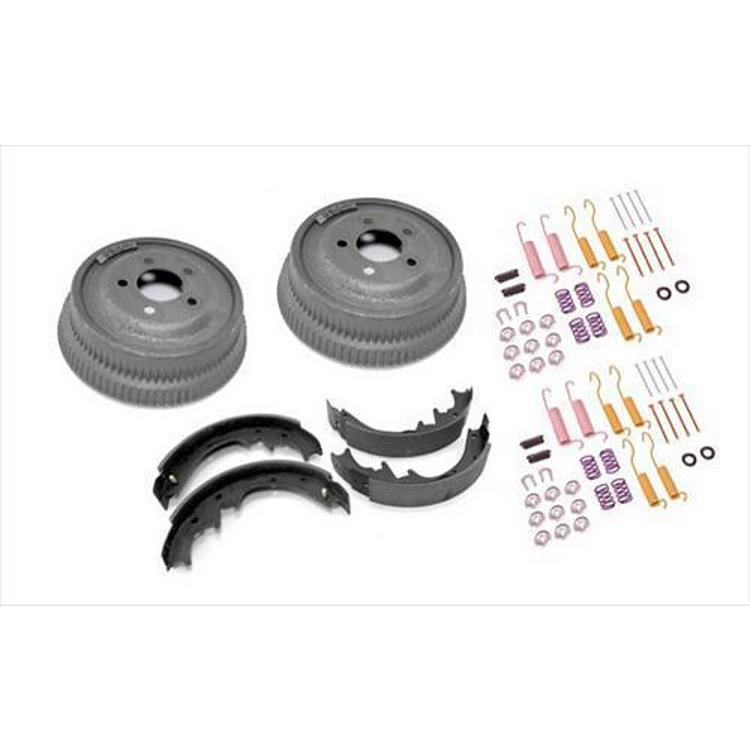

  • Includes drums, shoes and spring hardware kit

Description

Overview

The Omix-ADA 16766.03 is a rear drum brake service kit for the Dana 44 rear axle with 10 x 2.5 drums. It fits the 1986–1989 Jeep Cherokee (XJ) and the 1988–1993 Jeep Wrangler (YJ).

Omix-ADA builds the kit as a direct OE replacement to the original specifications, bundling drums, shoes and a spring hardware kit.

Key features

  • Rear drum brake service kit for the Dana 44
  • 10 x 2.5 drums
  • Includes drums, shoes and spring hardware kit
  • Direct OE replacement built to original specifications
  • Covered by a limited five-year warranty.

Rear drum brake service basics

A rear drum service usually involves the shoes, springs, hold-down hardware and adjuster, and the drum itself. Because the shoes wear at different rates, replacing them with new springs and hardware in one go helps keep the pressure even on both sides. The Dana 44 axle carries a heavy load, so the drum surface and the backing plate should be checked for scoring and cracks at the same time.

Before fitting the new parts, clean the backing plate and check the wheel cylinders for leaks at the boots. Make sure the drum sits flat against the hub, and set the shoes so the drum turns freely before final adjustment. Bed in the new linings gently over the first few stops.

  • Check the backing plate for cracks and rust
  • Inspect the wheel cylinder boots for leaks
  • Set the shoes so the drum turns freely before final adjustment

Specifications

Brand Omix-Ada
Part number 16766.03
UPC 804314232641
Product type Rear drum brake service kit
Axle Rear Dana 44
Drum size 10 x 2.5
Position Rear
Fit type Direct fit
Kit contents Drums, shoes, spring hardware kit
Warranty Limited five years

Vehicle fitment

It fits the 1986–1989 Jeep Cherokee (XJ) and the 1988–1993 Jeep Wrangler (YJ).

Cherokees from 1990 on and the 1987 Wrangler YJ are outside this list, and the kit is for Dana 44 rear axles only. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Drums, shoes and a spring hardware kit.

SKU: OAI16766.03 Category:

Specification

Shipping weight 49.00 lbs
Package dimensions 18.00 × 13.00 × 9.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1986–1989Base, Chief, Laredo, Limited, Pioneer, Sport
Jeep Wrangler (YJ)1988–1993Base, Islander, Laredo, Renegade, S, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What does the Omix-ADA 16766.03 kit include?

The kit includes drums, shoes and a spring hardware kit for the rear brakes, designed for the Dana 44 axle with 10 x 2.5 drums.

Which vehicles fit the 16766.03?

It fits the 1986–1989 Jeep Cherokee (XJ) and the 1988–1993 Jeep Wrangler (YJ). Confirm fit for your vehicle's year, model and trim before ordering.

What drum size does the 16766.03 use?

The kit is for 10 x 2.5 rear drums on a Dana 44 axle. Check your drum size and axle before choosing it, because other axles use different drums.

Is the 16766.03 front or rear?

It is a rear drum brake service kit for the Dana 44 axle, so it is not a front brake part. Check the axle and drum size against your vehicle before installing it.

Should the wheel cylinders be checked when the shoes are replaced?

Yes. Look for fluid leaks at the boot and check that the piston moves freely before reassembly. A leaking cylinder can soak new shoes and cause the rear brakes to pull or fade.
