Overview

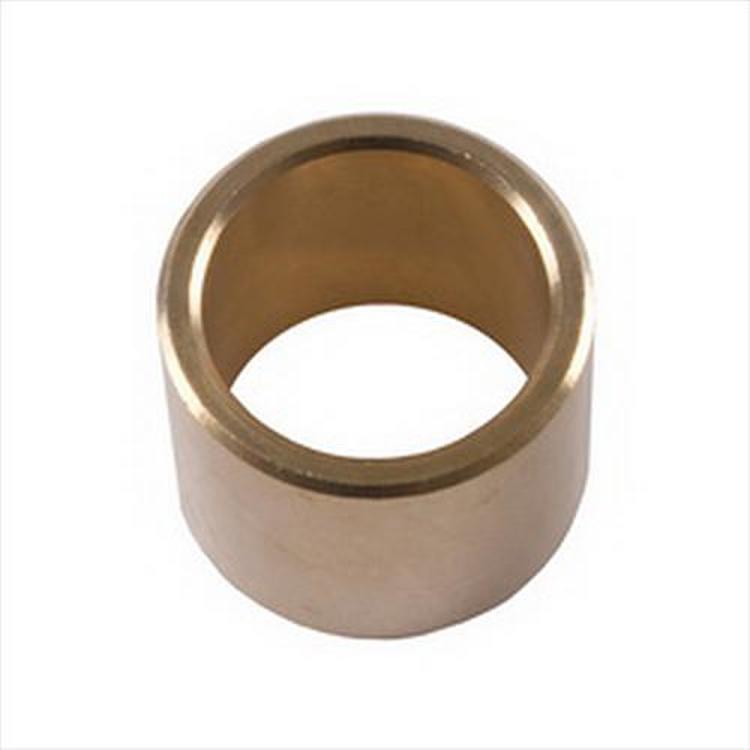

The Omix-ADA clutch and brake pedal bushing, part 16919.22, is a bushing for 1981–1983 Jeep CJ5, 1981–1986 CJ7, 1981–1985 Scrambler and 1987–1995 Wrangler (YJ) models.
Two bushings are used per pedal. Each is sold individually, and the bushing works in either the clutch or the brake pedal position.
Key features
- Clutch and brake pedal bushing
- Two per pedal
- Sold individually
- Covers CJ5, CJ7, Scrambler and Wrangler YJ models.
- Omix-ADA part number 16919.22
Pedal bushing wear and fit
The clutch and brake pedals pivot on bushings that carry the load of every press. Over time, the bushings can wear, allowing the pedal to move sideways or sit loosely on its pivot shaft. That play can make pedal travel feel uneven and may lead to squeaks or rattles from the pedal assembly.
Because the two pedals often share a pivot shaft, it is common to replace both bushings at the same time. Check the pivot shaft for wear or a groove where the bushing sits, since a grooved shaft can wear new bushings quickly. Light grease on the bushing and shaft helps them move freely and reduces noise. Measure the play in the pedal by hand before and after reassembly to confirm the fit.
- Check the pivot shaft for grooves or wear
- Replace both pedal bushings together
- Grease the bushings and shaft lightly
- Measure pedal play by hand after fitting
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16919.22 |
| UPC | 804314019556 |
| Product type | Clutch and brake pedal bushing |
| Quantity per pedal | 2 |
| Sales unit | Sold individually |
Vehicle fitment
It fits the 1981–1983 Jeep CJ5, the 1981–1986 Jeep CJ7, the 1981–1985 Jeep Scrambler and the 1987–1995 Jeep Wrangler (YJ). Match your year, model and trim to the coverage before ordering, since the Wrangler TJ and other years fall outside this range.
Other Jeep years and models, including the Wrangler TJ, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Order enough for both pedals, since each bushing is sold on its own.
