Overview

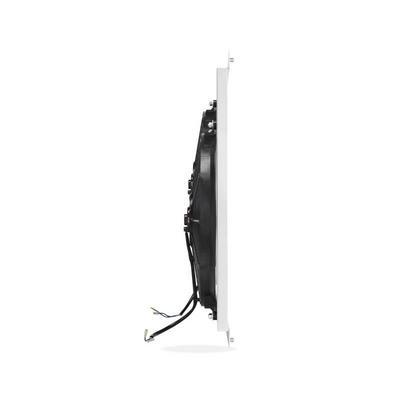

The Mishimoto Performance Aluminum Fan Shroud Kit, part number M/AMMFS-CK-78, is an electric fan shroud setup for 1978–86 GM C/K Series trucks. It replaces the stock mechanical fan with two 14-inch high-flow electric fans, which Mishimoto rates at over 1300 cfm of airflow. The shroud mounts to Mishimoto’s Chevrolet/GM C/K performance radiator, so the shroud and radiator work as a matched setup.
Electric fans give direct control over when airflow is applied. An optional Adjustable Fan Controller Kit lets the driver set coolant temperature targets, which suits owners who want close control of coolant temperatures on these trucks. Confirm the fit for your truck before ordering.
Key features

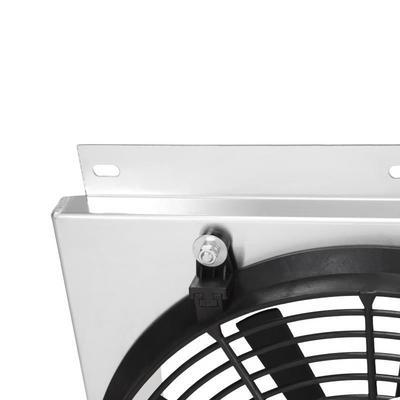

- Aluminum fan shroud that mounts to the Mishimoto Chevrolet/GM C/K performance radiator
- Two 14-inch high-flow electric fans
- Airflow rated over 1300 cfm
- Eliminates the stock mechanical fan
- Optional Adjustable Fan Controller Kit for coolant temperature control
Fan control and airflow
Electric fans draw their power from the electrical system, so the wiring, relay and fuse become part of the cooling design. Mount the shroud so it seals against the radiator with no gap at the edges, because air that bypasses the core reduces cooling. Good airflow at low speed matters most for trucks that idle in traffic or pull a trailer.
Controllers switch fans based on coolant temperature, so sensor location matters. Keep sensor leads away from exhaust heat and moving parts, and confirm the controller suits the fan current. Periodically check the fan blades and shroud for cracks, bent mounts and debris that can unbalance the fans.
- Use a fused circuit with a properly rated relay
- Confirm the shroud seals evenly around the radiator
- Inspect fan mounts and blades for cracks
Specifications
| Brand | Mishimoto |
|---|---|
| Part number | M/AMMFS-CK-78 |
| Style | Aftermarket |
| Material | Aluminum |
| Fans | Two 14-inch high-flow electric |
| Airflow | Over 1300 cfm |
| Radiator | Mishimoto Chevrolet/GM C/K performance radiator |
Vehicle fitment
It is designed for 1978–86 GM C/K Series trucks and mounts to the matching Mishimoto C/K radiator.
Other GM generations and vehicles outside the 1978–86 C/K Series are outside this design. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

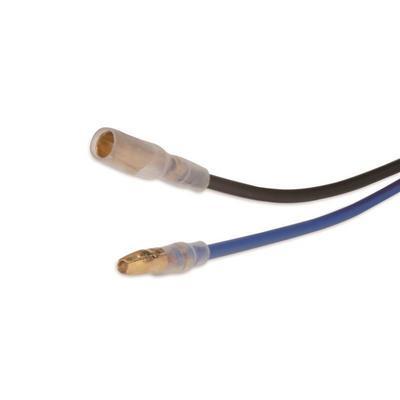

Wire the electric fans through a fused circuit with an appropriate relay, and plan the wiring before mounting the shroud. The shroud is designed to work with the Mishimoto C/K radiator, so confirm the radiator and shroud match before fitting. If you add the optional controller, route its sensor and power leads away from hot exhaust parts.
What’s included

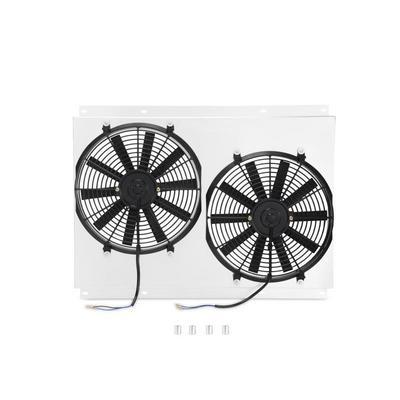

The kit includes the aluminum fan shroud and two 14-inch high-flow electric fans.
Not included: the optional Adjustable Fan Controller Kit, and the Mishimoto radiator the shroud mounts to.
