KC HiLites 6 Inch SlimLite Fog Light – 1127

KC HiLites

Shop KC HiLites Offroad Racing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • KC HiLites 6-inch round SlimLite fog light, part 1127
  • Universal fit with bracket mounting
  • Halogen bulb with optical glass lens and polished reflectors
  • Kit contents per description: harness, relay, switch and stone guards
  • UPC 84709011277

Description

Overview

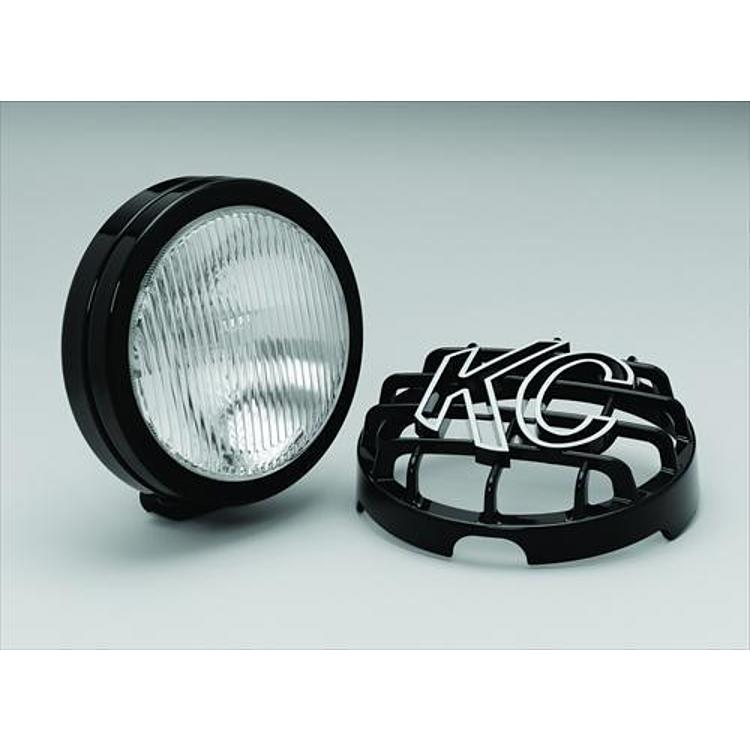

The KC HiLites 6-inch SlimLite fog light, part 1127, is a round halogen fog light with a flat, low profile that suits tight mounting spots. It is a universal-fit light for bracket mounting, so vehicle fit depends on the mounting location. It has a clear lens and halogen bulb.

The lens is optical quality glass, and the reflectors are precision polished to give a bright, focused beam. This light is offered in Long Range, Driving and Fog versions, and in highly polished titanium, brilliant chrome plated and deep black powder coat finishes. Titanium versions use 130 watt Ice Blue halogen bulbs, while other finishes use clear halogen bulbs. Confirm the finish before ordering.

Key features

  • Flat, round 6-inch housing with a low profile
  • Optical quality glass lens with polished reflectors
  • Halogen bulb with clear lens
  • Bracket mounting type
  • Finishes offered by KC: highly polished titanium, brilliant chrome plated, deep black powder coat
  • High Impact protective stone guards included in the kit

Choosing a fog light mount

Round fog lights mounted on brackets rely on the bumper, grille or bar for both support and aim, so the mounting surface matters as much as the light itself. Measure the opening and the depth behind it before buying, since a flat housing still needs room for the wiring harness and relay. Solid mounting points stop vibration from shifting the beam over time.

Stone guards protect the lens from gravel and debris, and they are most useful on gravel roads and in trail driving. Keep them on the lenses while driving. Halogen bulbs run hot, so keep the harness away from the bulb housing and check the relay mounting for heat. Replace a halogen bulb when the beam dims or the filament blackens, rather than waiting for it to fail on the trail.

Specifications

Brand KC HiLites
Part number 1127
UPC 84709011277
Light shape Round

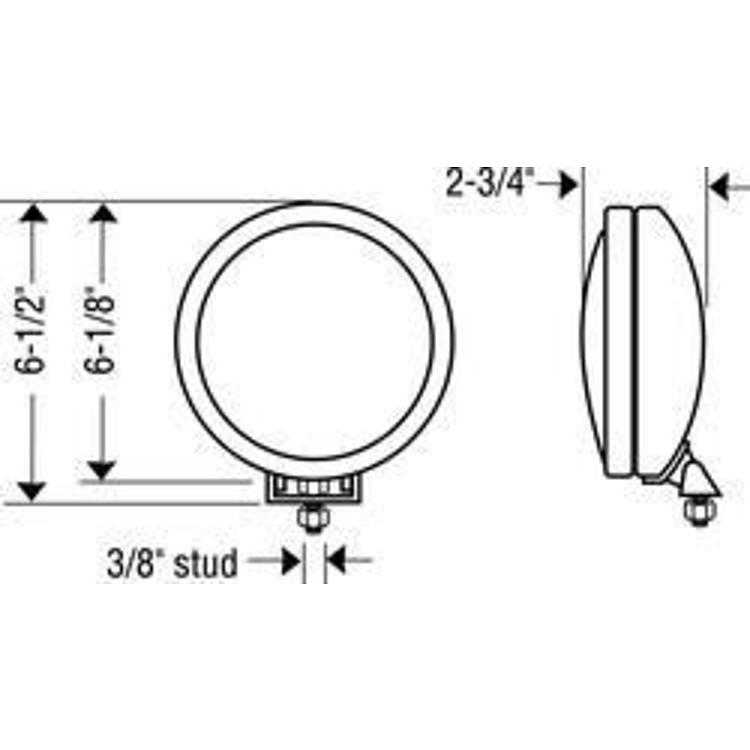

Housing 6 inch round, flat profile
Size listed 0 to 10 inches
Lens color Clear
Bulb type Halogen
Titanium bulb rating 130 watt Ice Blue halogen
Mounting type Bracket
Fitment type Universal fit
Stone guards High Impact

Vehicle fitment

This light is universal fit and is not tied to a year, make or model. Fit depends on the mounting location, so measure the bumper or grille opening and check clearance before installing.

Because the light is universal, no vehicle years or models are given. Use the 6-inch housing and the bracket as the reference for clearance.

Installation notes

The kit includes a pre-terminated wiring harness, a heavy-duty relay and an illuminated switch. Wire the lights with the supplied relay, harness and switch as the illustrated instructions show, and keep the stone guards on the lenses.

What’s included

Each SlimLite kit includes two KC SlimLites, two High Impact protective stone guards, a pre-terminated wiring harness, a heavy-duty relay, an illuminated switch and illustrated installation instructions.

The kit includes two lights, so confirm the quantity before ordering.

SKU: K/C1127 Categories: ,

Specification

Shipping weight 2.50 lbs
Package dimensions 9.50 × 6.50 × 5.50 in
brands

Questions & Answers

Is the KC HiLites 1127 a universal fit light?

Yes. It is universal fit with bracket mounting, so it is not tied to a specific year, make or model. Check the bumper or grille opening and the mounting location before installing.

What bulb does the KC 6-inch SlimLite use?

It uses a halogen bulb with a clear lens. Titanium-finish SlimLites use 130 watt Ice Blue halogen bulbs, while other finishes use clear halogen bulbs. Confirm the finish before ordering.

What comes with the KC SlimLite kit?

Each kit includes two KC SlimLites, two High Impact stone guards, a pre-terminated wiring harness, a heavy-duty relay, an illuminated switch and illustrated instructions. Check the package contents against your installation before starting.

How often should halogen fog light bulbs be replaced?

Replace a halogen bulb when the beam dims noticeably, the filament darkens, or the bulb fails. Carry a spare bulb for trail use, and handle new bulbs by the base rather than the glass to avoid oil from the skin shortening its life.
