Overview

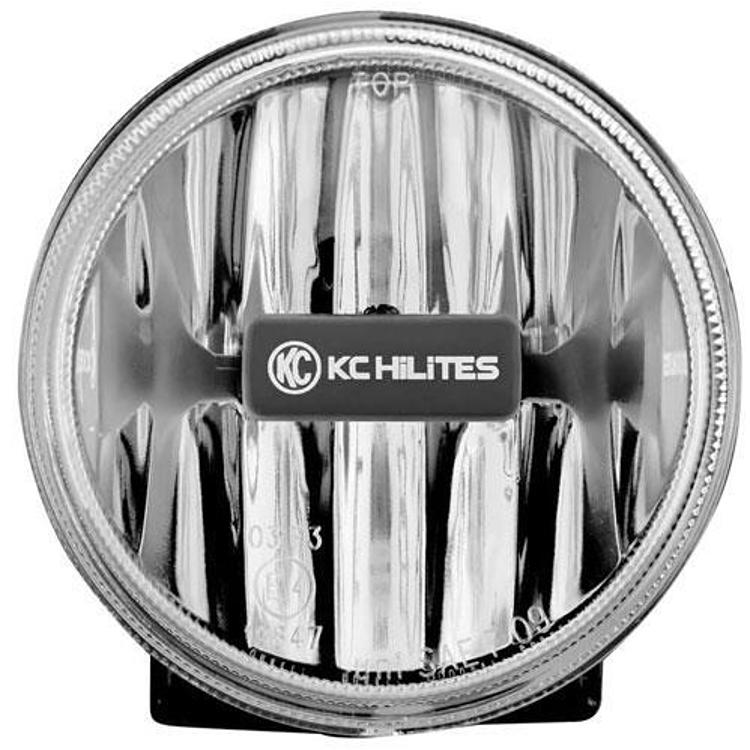

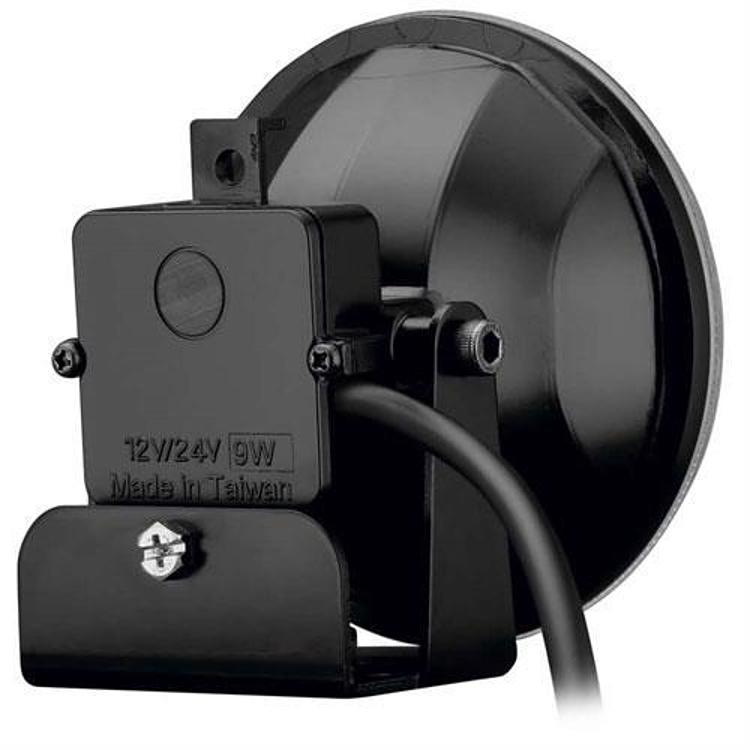

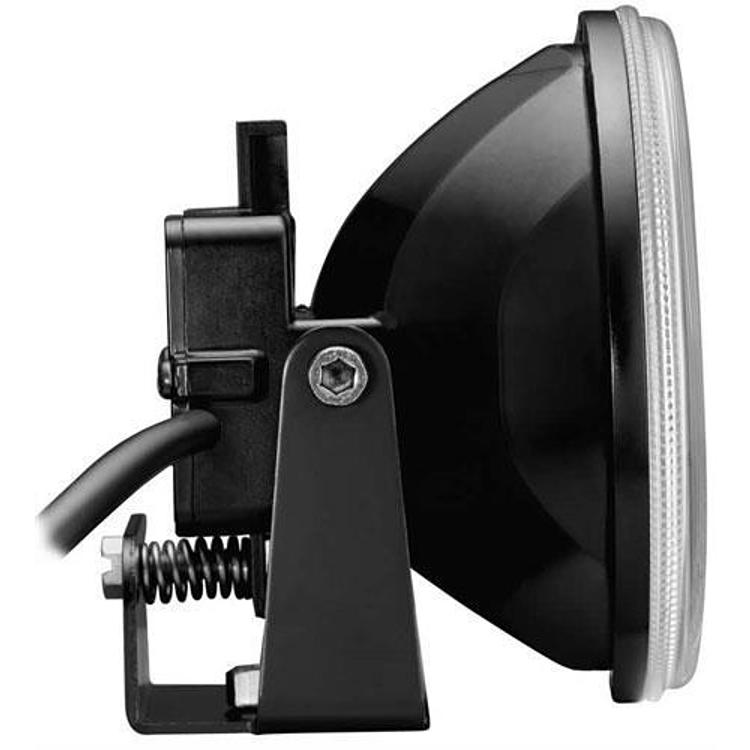

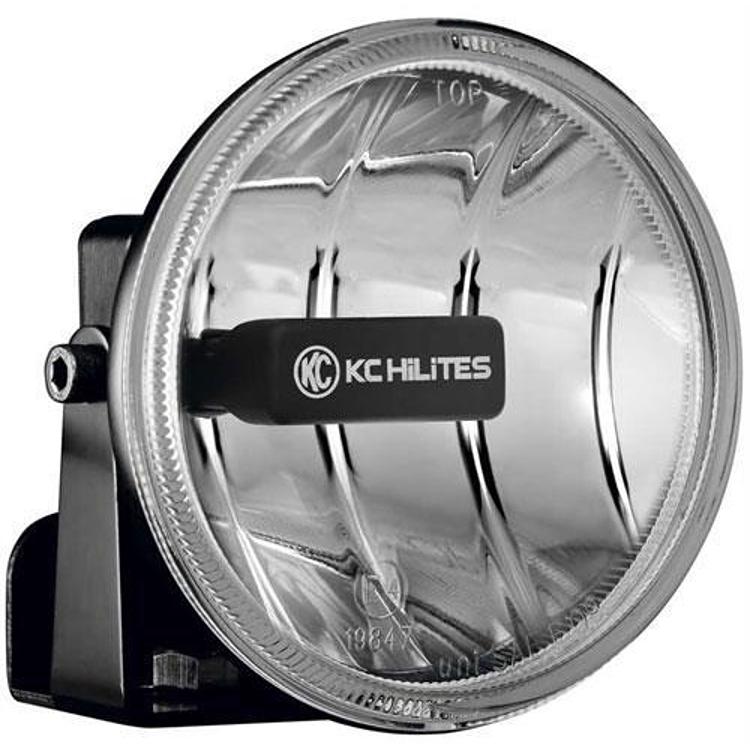

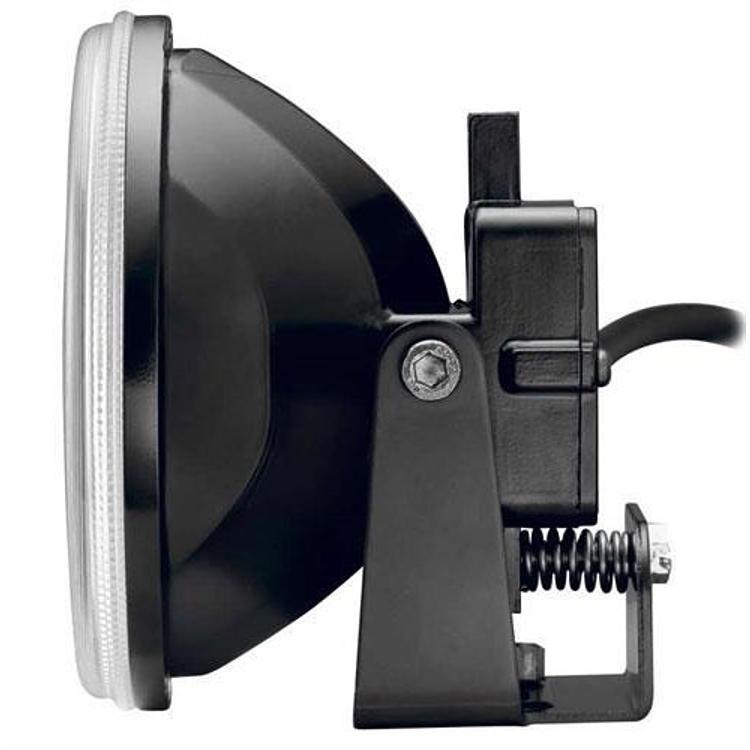

The KC HiLites 1493 is a 4 inch Gravity LED fog light, part number K/C1493, rated at 10W. It meets SAE (US) and E-Mark/ECE (Europe) specifications for street use.
It is street legal, so it can be used on surface streets as well as off-road trails. It is a universal fit, bracket-mounted light for Jeeps, trucks, SUVs and similar vehicles.
Key features
- Street legal LED design meeting SAE (US) and E-Mark/ECE (Europe) specifications
- 10W LED output in a 4 inch round housing
- White lens
- Bracket mount
- Everything needed for installation comes with the light.
Wiring and road use
LED fog lights draw far less current than halogen units, but the wiring still needs to be done properly. Use a fuse close to the power source and a relay so the switch carries only a small load. Route the harness away from exhaust heat, moving suspension parts and sharp edges, and secure it with clips so it does not chafe.
Road-use rules for auxiliary lights differ by area, including where the lights may be switched on and how they must be aimed. Check those rules before driving with the lights on public roads. An LED unit with a sealed housing is easier to keep clean, but its lens still collects dirt, so wipe it down and recheck the bracket after rough use.
- Use a fuse close to the power source
- Route the harness away from heat and moving parts
- Check local road-use rules before driving
- Wipe the lens and recheck the bracket regularly
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | K/C1493 |
| UPC | 84709014933 |
| Light size | 4 inch |
| Light shape | Round |
| Bulb type | LED |
| Power | 10 W |
| Lens color | White |
| Mounting | Bracket |
| Certifications | SAE (US), E-Mark/ECE (Europe) |
| Sold as | Single |
Vehicle fitment
It is a universal fit light and is not built for one vehicle. Confirm the bracket fits your mounting location and that the 4 inch housing clears your bumper or grille opening.
Installation notes
Wire the light through a fused relay, and confirm local road-use rules before driving with it on public roads.
What’s included
One 4 inch Gravity LED fog light (10W) sold as a single, with everything needed for installation.
