Overview

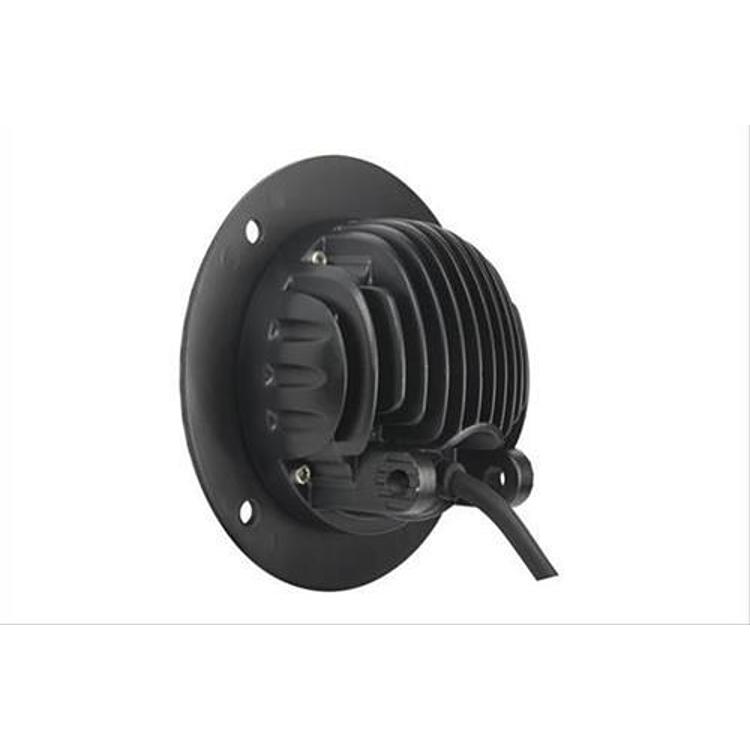

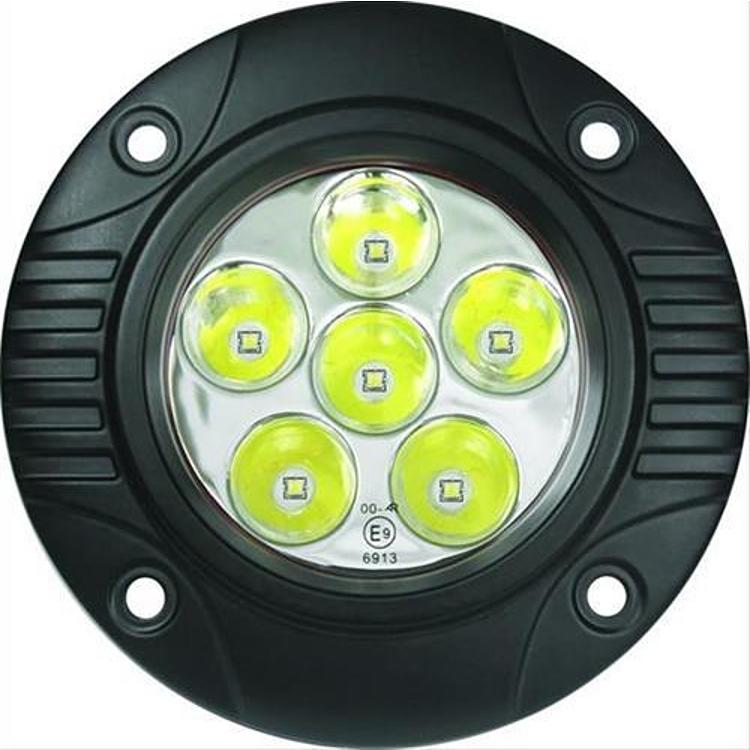

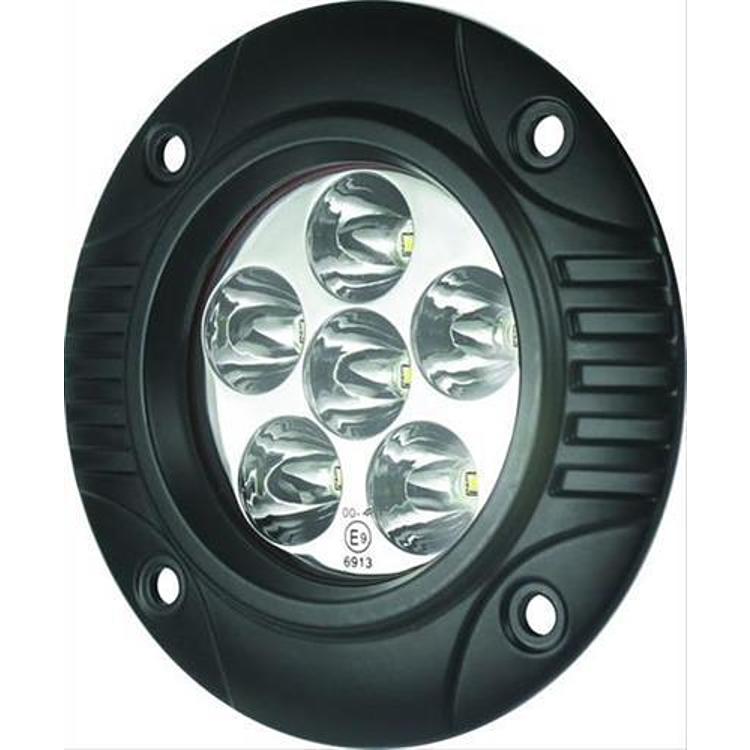

The Hella ValueFit 90mm Off-Road Spot Light, part number 357201011, is an LED spot light made for off-road driving only. It is rated at 18 watts and produces 995 lm from six high intensity LEDs.
The die-cast aluminum housing sits on an adjustable stainless steel bracket, so you can set the aim. The light runs on multivolt 10-30V DC and connects through wire leads.
Key features
- Six high intensity LEDs producing a spot beam
- Measured output of 995 lm
- Multivolt 10-30V DC operation
- Die-cast aluminum housing
- Adjustable stainless steel bracket
- Wire leads for connection
Before you mount an off-road spot
A spot light concentrates its beam, so the aim matters more than on a wide flood unit. Set the bracket so the beam lands where you need it on the trail, and check that the lens is not blocked by the bumper, a bull bar or a roof rack. Adjust the bracket on level ground, then tighten the fasteners and recheck the aim after the first few drives.
Wire leads need careful routing. Keep the leads off sharp edges, away from exhaust heat and clear of suspension travel, and secure them with clips at regular intervals. Use a fuse and relay sized for the load and mount the relay near the battery. Off-road lights take a lot of abuse from stones and water, so inspect the housing seals and bracket bolts periodically and replace any cracked lens or worn wire insulation.
Specifications
| Brand | Hella |
|---|---|
| Part number | 357201011 |
| UPC | 760687160960 |
| Product type | LED spot light, off-road driving only |
| Size | 90mm |
| Power | 18 watts |
| LED count | 6 high intensity LEDs |
| Measured output | 995 lm |
| Beam | Spot |
| Voltage | 10-30V DC, multivolt |
| Housing | Die-cast aluminum |
| Bracket | Adjustable stainless steel |
| Connection | Wire leads |
Vehicle fitment
It is universal fit and is not built for one vehicle. Where it works depends on where the bracket can be mounted on your vehicle.
Confirm your vehicle’s year, model and trim before ordering. Check that the bracket position clears bumpers, grille and any wiring.
Installation notes
The light uses wire leads rather than a plug, so run power through a fuse and relay sized for the 18 watt load. Keep the leads away from moving parts. Check local rules on auxiliary driving lights before using them on public roads.
What’s included
It includes an adjustable stainless steel bracket and wire leads. Check the package contents against your installation before starting.
