Overview

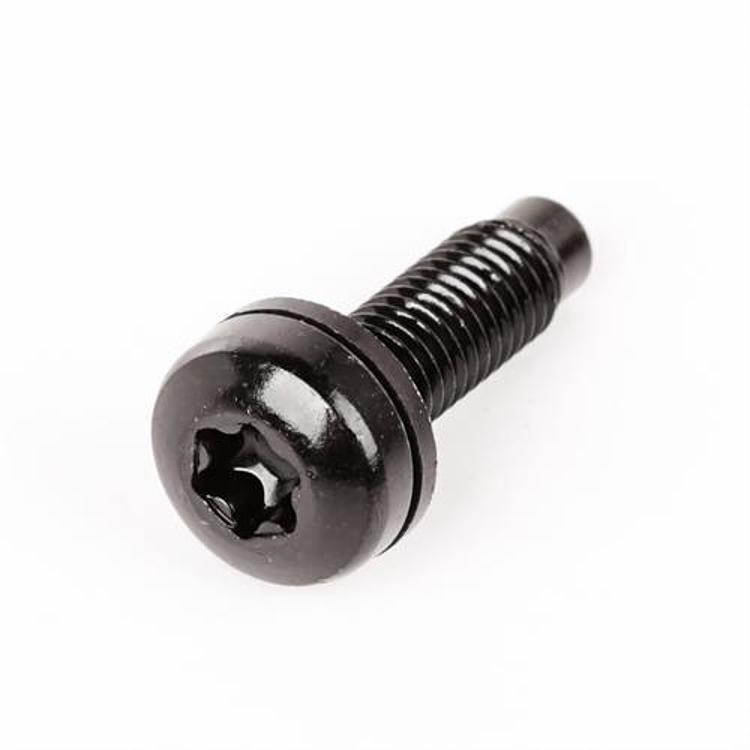

The Omix-Ada hardtop bolt, part number 12304.29, is a replacement retaining bolt for the factory hardtop on 97-06 Wrangler TJ, 04-06 Wrangler Unlimited LJ and 07-17 Wrangler JK/JKU models. It replaces OE 6506826AA and is designed to match the fit of an original part.

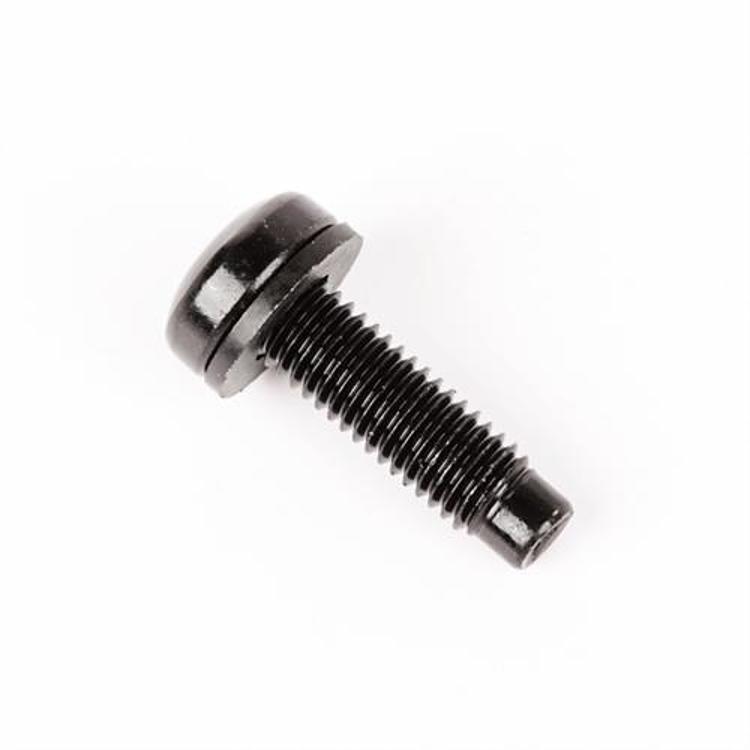

The bolt is metric M8 x 1.25 x 25 mm and has a pilot point and torx head. Each bolt is listed individually.
Key features
- Replacement hardtop retaining bolt
- Metric M8 x 1.25 x 25 mm size
- Pilot point and torx head
- Replaces OE 6506826AA
Thread care and torx fit
Hardtop bolts thread into body and frame points that see a lot of movement, so clean threads matter as much as the fastener itself. Wipe the threads and the mounting hole with a clean rag before installing, and remove any rust or old sealant. Starting the bolt by hand helps prevent cross-threading, which can damage the hole and leave the hardtop loose.
Torx heads strip easily when the bit is worn or undersized, so use a bit that seats fully before applying force. Keep the bolts in a labeled tray when the top is off, since mixing fasteners can cause uneven fit. Inspect each bolt for stretched shafts, rust or damaged heads, and replace any bolt that shows wear before reinstalling the top.
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 12304.29 |
| UPC | 804314294731 |
| Size | M8 x 1.25 x 25 mm |
| Head | Torx |
| Tip | Pilot point |
| Replaces OE | 6506826AA |
| Quantity | Sold individually |
Vehicle fitment
It fits 97-06 Wrangler TJ, 04-06 Wrangler Unlimited LJ, and 07-17 Wrangler JK/JKU models with factory hardtop. Hardtop models without the factory hardtop are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bolt has a torx head, so have a matching torx bit ready before removing or installing it.
What’s included
The bolt is sold individually. Confirm how many bolts your hardtop needs before ordering.
