Overview

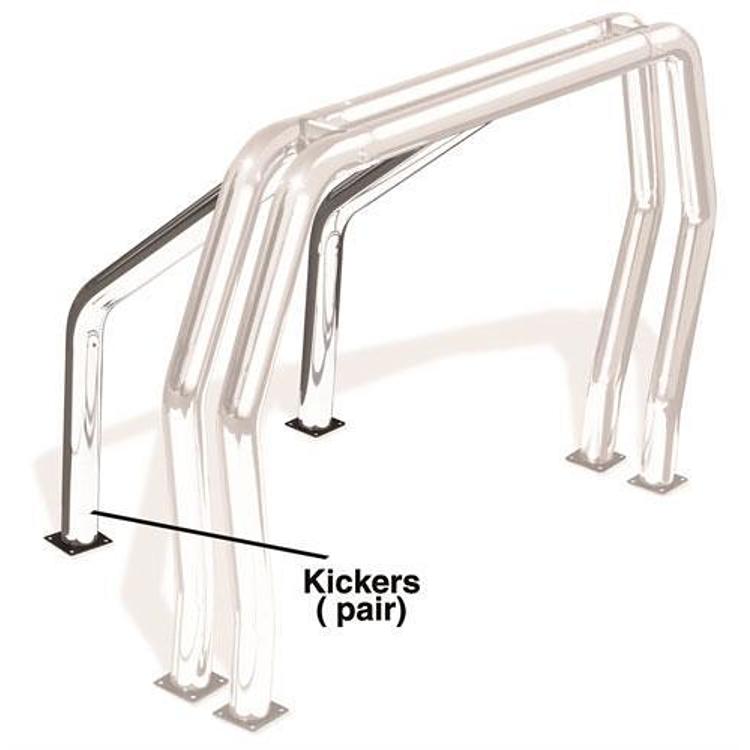

The Go Rhino 9560C is a pair of chrome kickers for Go Rhino Rhino Bed Bars, designed to mount between the tire wells of a pickup bed. A pair is needed for every bed bar configuration, and a second pair can be added with the base position adjusted. It fits 1978-2015 Chevrolet, GMC, Ford, Dodge and Toyota pickups.
Each kicker is made from 3 inch diameter steel tubing with a chrome finish. The design bolts together with no exposed welds and supports single, double and triple bar applications. An optional light bar can be used with the kickers, but it is not included.
Key features
- Chrome finish on 3 inch diameter steel tubing
- Bolt-together construction with no exposed welds
- Included plastic gaskets keep metal parts from touching at the mounts
- Mounts between the tire wells

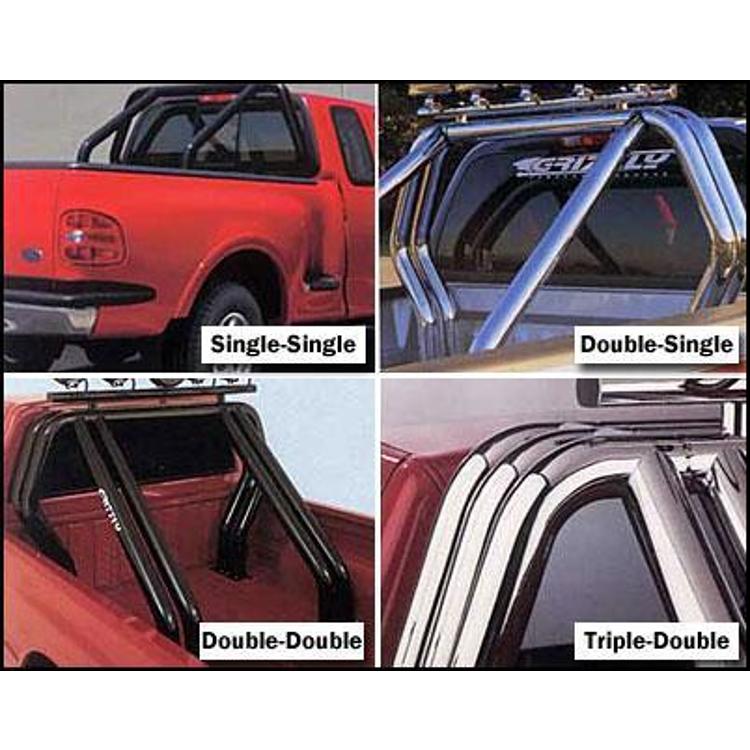

- Single, double and triple bar style applications
- Option for a second pair of kickers and adjustable base positioning
Kicker position and bar layout
The kicker sets the base position for each bed bar, so its placement controls how the bar sits across the bed. A kicker set too far forward or back can change how the bar lines up with the tire wells and the bed sides, so test the fit before final tightening.
Chrome finishes show scratches, water spots and light surface rust more readily than black powder coat, so keep the surface clean and dry. Wash with mild soap and water, dry with a soft cloth, and check that the plastic gaskets remain in place at each mount. Replace gaskets that split or flatten, since metal-to-metal contact at the mounts can mark both parts.
- Test the base position before final tightening
- Keep plastic gaskets in place at every mount
- Wash and dry the chrome surface after wet trips
- Recheck bolts after the first few drives
Specifications
| Brand | Go Rhino |
|---|---|
| Part number | 9560C |
| UPC | 887753034571 |
| Finish | Chrome |
| Tubing diameter | 3 inch |
| Tubing material | Steel |
| Mounting location | Between the tire wells |
| Construction | Bolt together, no exposed welds |
| Fitment type | Direct fit |
Vehicle fitment
It fits Chevrolet C10, K10 and R/V series pickups and Silverado trucks from 1978 to 2015, GMC C, K, R and V series pickups and Sierra trucks in the same period, Ford F-150, F-250 and F-350 trucks from 1978 to 1996 and 2004 to 2015 (Super Duty models 1999-2013), Dodge and Ram 1500, 2500 and 3500 trucks from 1994 to 2010 and 2011 to 2014, and the 2007-2014 Toyota Tundra.
Model years outside these ranges are not on the list, including Ford F-150 models from 1997 to 2003 and Silverado or Sierra models from 2016 onward. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the kickers bolt together, installation does not involve welding. The included plastic gaskets are meant to stop metal-to-metal contact, so check that they are in place at each mount. Confirm that the kicker position you choose works with your bed bar configuration.
What’s included
A pair of chrome kickers with the plastic gaskets that come with them.
Not included: The light bar is optional and not included. Confirm which bed bar parts you need before ordering.
