Overview

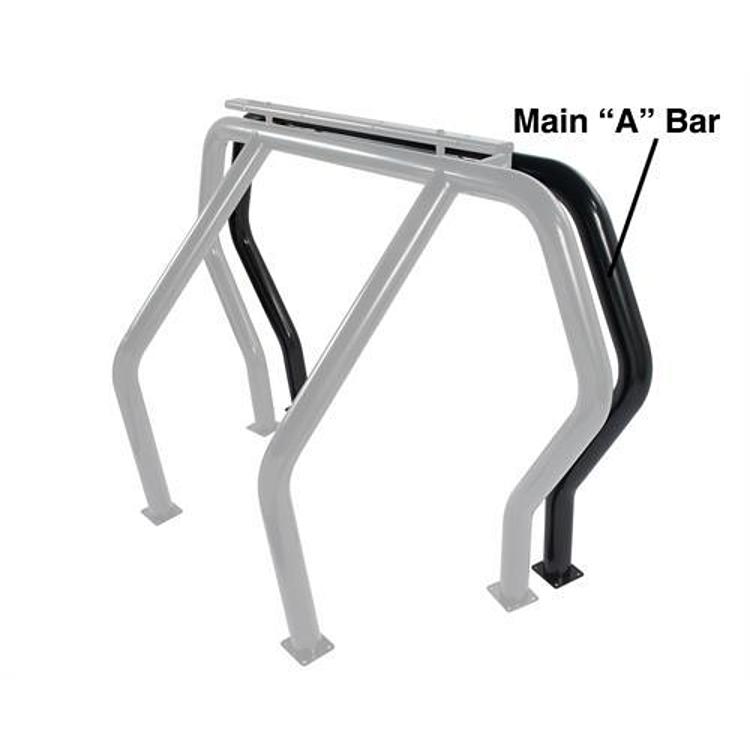

The Go Rhino 90001B is the Front Main A Bar for Rhino Bed Bars, a black steel bed bar made from 3 inch diameter tubing. The additional A bar is used to build double and triple style bed bars, so you can run one, two or three bars depending on the setup.
Rhino Bed Bars are the classic off-road style and come in configurations from one to three bars. The 90001B fits many full-size Chevrolet, GMC, Dodge Ram, Ford and Toyota Tundra pickups, by year and trim.
Key features
- 3 inch diameter steel tubing
- Easy bolt together design with no exposed welds
- Plastic gaskets eliminate metal to metal contact
- Single, double and triple bar style applications
- Black powder coat finish with a 5 year warranty
- Optional light bar, sold separately
Building a bed bar setup
Bed bars are built from the front main bar outward, so the extra A bar adds to a setup that already works on its own. Plan the configuration first, since the number of bars affects how the load and the weight sit over the bed rails. Dry-fit the pieces before tightening any bolts, and check that the plastic gaskets sit between each mounting point.
Bolt together designs make it easier to change a setup later, but the fasteners should be re-checked after rough driving. Look for gasket wear, loose hardware and paint chips where metal meets metal, and touch up any bare spots promptly. A light bar mount is a common accessory, but it should be planned before final tightening.
- Plan the number of bars before mounting
- Dry-fit pieces before final tightening
- Re-check fasteners after rough roads
- Touch up any chipped powder coat
Specifications
| Brand | Go Rhino |
|---|---|
| Product line | Rhino Bed Bars |
| Part number | 90001B |
| UPC | 619632092477 |
| Position | Front Main A Bar |
| Color | Black |
| Tubing | 3 inch diameter steel |
| Construction | Bolt together, no exposed welds |
| Gaskets | Plastic, included |
| Finish | Black powder coat |
| Warranty | 5 year |
Vehicle fitment
Chevrolet: C10 and K10 1973–1986; C1500 and K1500 1988–1998; C3500 and K3500 1988–1998; C2500 and K2500 1988–1999; R and V series 1987–1991; Silverado 1500 1999–2013 and 2015; Silverado 2500 1999–2004 and 2001–2015 HD; Silverado 3500 2001–2006 and 2007–2015 HD.
GMC: C15 and K15 1973–1978; C1500 and K1500 1979–1986 and 1988–1998; C2500 and K2500 1988–2000; C3500 and K3500 1988–1998; R and V series 1987–1991; Sierra 1500 1999–2015; Sierra 2500 1999–2004 and 2007–2013, 2015 HD; Sierra 3500 2001–2006 and 2007–2013, 2015 HD.
Dodge Ram 1500, 2500 and 3500 1994–2001 and 2010; Ram 1500, 2500 and 3500 2011–2014; Ford F-150 1975–1996 and F-250 and F-350 1973–1996; F-150 Lightning 1993–1995; Toyota Tundra 2007–2014.
Not listed: Ford F-150 and F-250/F-350 from 1997, the Dodge Ram from 2002 to 2009, Ram models from 2015 onward, Silverado 1500 for 2014 and from 2016, and Tundra from 2015 onward. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bar is bolt together with no exposed welds, so no welding is needed. Use the included plastic gaskets so that metal does not contact metal.
What’s included
The Front Main A Bar with the plastic gaskets described above.
Not included: The optional light bar, which is sold separately.
