Overview

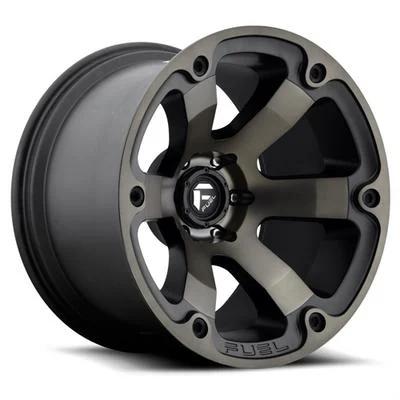

The FUEL Off-Road Beast D564 17×9 is an aluminum spoke wheel, part number MHTD56417908545, built for a 5 on 5.5 bolt pattern. It measures 17 inches in diameter and 9 inches wide, with a -12 offset, 4.5 backspacing and a 108 center bore.
The finish is black machined with dark tint. Fuel Off-Road makes the Beast in several bolt pattern and offset combinations, so compare your hub’s measurements with these figures before ordering.
Key features
- 17-inch diameter and 9-inch width in a spoke design
- 5 on 5.5 bolt pattern with a 108 center bore
- -12 offset and 4.5 backspacing
- Machined black finish with dark tint
- Aluminum construction
Hub-centric fit and centering
A hub-centric fit means the center bore sits on the hub itself, which centers the wheel rather than relying on the lug nuts alone. When the bore is larger than the hub, a hub-centric ring can fill the gap, but the ring must be sized for the hub and kept clean so it seats flat.
Negative offset pushes the mounting face outboard, which moves the tire toward the fender and can change steering and bearing load. Before choosing a tire width, check for clearance at full steering lock and through suspension travel.
- Clean the hub face and rotor contact surface before mounting
- Check ring seating when the bore is larger than the hub
- Recheck clearance after changing tire width
- Inspect the wheel for cracks after hard impacts
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD56417908545 |
| Model | Beast D564 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -12 |
| Backspacing | 4.5 |
| Style | Spoke |
| Finish | Machined, black with dark tint |
| Construction | Aluminum |
Vehicle fitment
No vehicle year, make or model is tied to this wheel. It is marked Universal Fit, but a wheel only suits a hub when its bolt pattern, center bore and offset all match, so compare those figures with your vehicle before buying.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is the item supplied with this part. Check the package contents against your installation before starting.
