Overview

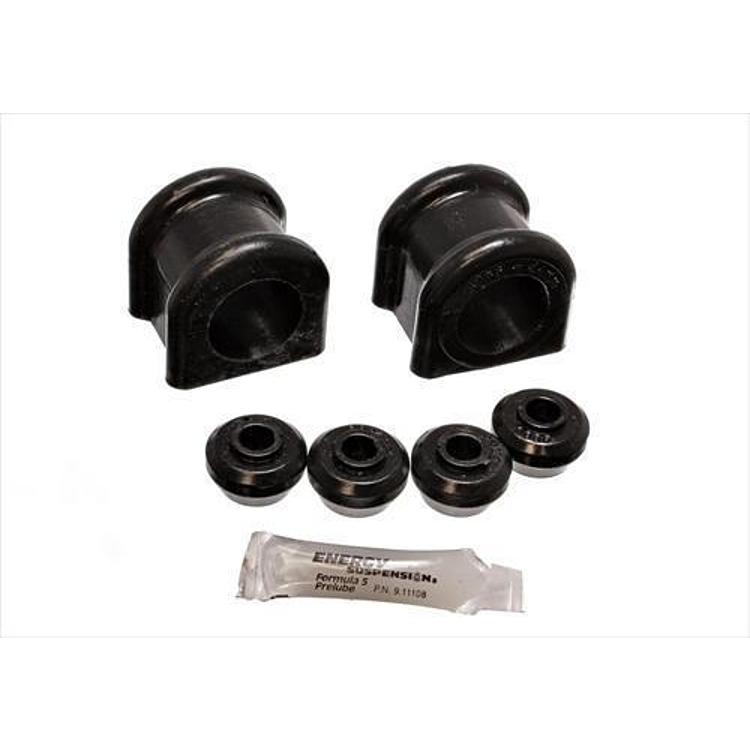

The Energy Suspension 5.5160G is a front sway bar bushing set for a 36mm front bar. It fits 2002–2005 Dodge Ram 1500 in Laramie, SLT and ST trims. The black polyurethane bushings replace the original rubber on these trucks.
The kit includes one end link bushing for one end of the link, so check the other end before installation to see whether it needs its own bushing. The greaseable bushings use zerk type fittings, and internal channels carry grease to where it is needed.
Key features
- Front sway bar bushing set sized for a 36mm bar
- Black polyurethane bushings
- One end link bushing for one end of the link
- Zerk fittings for periodic greasing
- Direct fit listing for the 2002–2005 Dodge Ram 1500
End link ends and greasing
End links connect the sway bar to the suspension, and each end has its own joint that can wear independently. When only one end is covered by a bushing, the other end should be inspected closely and fitted with a suitable bushing if it is bare. Worn or missing bushings allow the link to knock and can lead to uneven loading on the bar.
Greasing the front bushings keeps the bar moving smoothly. Use the zerk fittings at routine service points and stop when fresh grease appears at the bushing edges. Check the bar and link ends after rough off-road use, since impacts can loosen mounts or damage the bushing surfaces.
- Inspect the uncovered end link for wear
- Check for knocking over bumps
- Grease the fittings at routine service
- Look for loose mounts after rough use
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 5.5160G |
| UPC | 703639071891 |
| Position | Front |
| Bar diameter | 36mm |
| Color | Black |
| Material | Polyurethane |
| End link bushings | One end of the link |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer list covers the 2002–2005 Dodge Ram 1500 in Laramie, SLT and ST trims. No other Ram model is named for this set.
Dodge Ram 1500 years outside 2002–2005 and Ram 2500 or 3500 models are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the other end of each link before installation, since this set covers only one end. Support the truck securely before working on the front suspension.
What’s included
The set includes greaseable front sway bar bushings and one end link bushing for one end of the link.
Not included: an end link bushing for the other end, since the set covers one end only.
