Overview

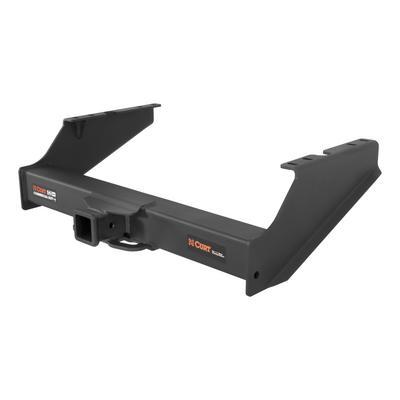

The Curt Manufacturing CRT15810 is a Class V (Class 5) Xtra-Duty receiver hitch with a 2-1/2 inch receiver opening, built for heavy towing. It fits 1999 to 2016 Ford F-250 Super Duty and F-350 Super Duty trucks.
Curt builds the hitch as a custom, vehicle-specific design, so it mounts without modifications to the truck. A steel collar is welded into the receiver, and the hitch mounts with grade-8 hardware. Curt rates it for 20,000 pounds gross trailer weight and 2,700 pounds tongue weight, and it suits large utility trailers, flatbed equipment haulers, livestock trailers and full-size travel trailers.
Key features
- Extra-large steel center section for tough jobs
- 2-1/2 inch by 2-1/2 inch receiver tube, the industry-standard size for towing accessories
- Steel collar welded into the receiver for added strength
- Large safety chain loops for heavy-duty hooks
- Two-part finish: a Bonderite bath followed by carbide black powder coat
- Tested to SAE J684 with real vehicles at a facility near Detroit, MI
- Reducer sleeves available to adapt the receiver to 2 inch shanks, and hitch tube covers
Setting up for heavy loads
Heavy towing puts load on every link in the chain, from the hitch to the trailer. Keep the weakest component in mind when choosing a ball mount, hitch ball and safety chains, and do not use an accessory rated below the trailer load.
Grade-8 mounting bolts hold up well under heavy use, but they can still loosen over time. Check them after the initial tows and again at regular intervals. A reducer sleeve for a 2 inch shank should be inspected for wear before each use, since it carries the trailer load through the tube.
- Check the ball mount rating before connecting
- Inspect reducer sleeves for wear
- Keep hitch tube covers on when not towing
- Recheck mounting bolts at regular intervals
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT15810 |
| Hitch class | Class V (Class 5), Commercial Duty |
| Receiver opening | 2-1/2 inch x 2-1/2 inch |
| Construction | High-quality welded steel with extra-large center section |
| Mounting hardware | Grade-8 |
| Gross trailer weight | 20,000 pounds |
| Tongue weight | 2,700 pounds |
| Weight distribution rating | 20,000 pounds WD and 2,700 pounds WDTW |
| Finish | Bonderite immersion and carbide black powder coat |
| Testing | SAE J684 |
| Made in | USA (may include imported hardware) |
| Warranty | Limited lifetime |
Vehicle fitment
It fits 1999 to 2016 Ford F-250 Super Duty and 1999 to 2016 Ford F-350 Super Duty models in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims. The F-450 Super Duty is not covered, since the fit applies only to the F-250 and F-350.
Other Ford models and years outside 1999 to 2016 are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The hitch mounts with grade-8 hardware. Towing capacity is capped by the weakest link, so never exceed the lowest-rated towing component, including the ball mount, hitch ball and trailer.
What’s included
The hitch mounts with grade-8 hardware. Check the package contents against your installation before starting.
Not included: A ball mount and hitch ball, plus the 2 inch reducer sleeves and hitch tube covers that Curt also offers as separate accessories.
