Overview

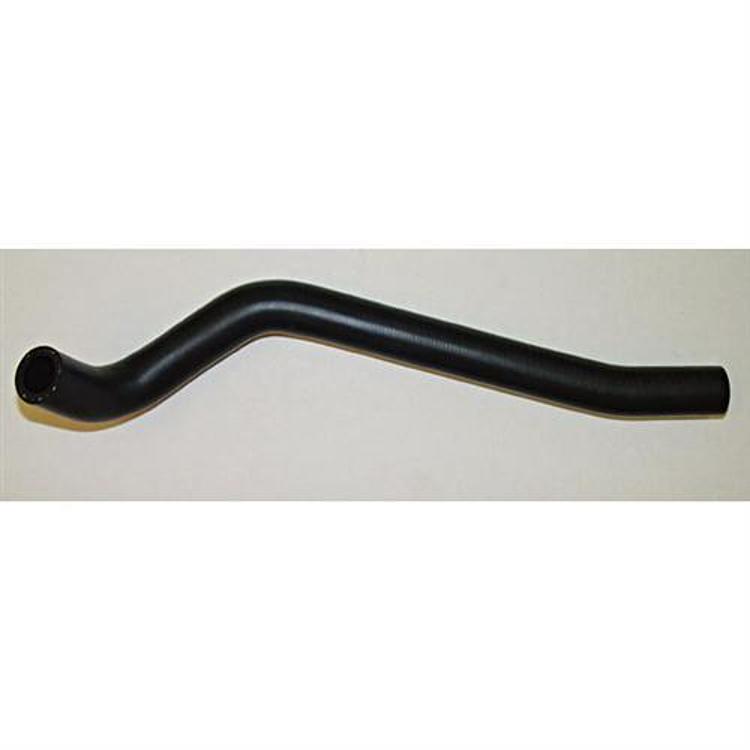

The Crown Automotive J5357971 is a fuel filler vent hose with an 11/16” inside diameter and a 1-1/8” outside diameter. Its length is approximately 13.25 inches.
Vent hoses are routed between the filler area and the fuel system, so routing and fittings must match your vehicle. Confirm the connection points before installing.
Key features
- Vent hose for the fuel filler area
- 11/16” inside diameter
- 1-1/8” outside diameter
- Length approximately 13.25 inches
Vent line care
A fuel filler vent hose lets air move in and out of the tank as fuel goes in and comes out, which keeps pressure from building. Because the vent runs near the filler and the body, it can be pinched by brackets, rubbed through by rocks, or softened by heat from the exhaust. Check the full run, not just the visible end.
Vent hoses often age faster than the filler hose beside them, since they carry fuel vapor and see the same heat. When one is replaced, inspect the nearby clamps and the filler neck for cracks, and route the new line the same way as the old one. Keep the path clear of moving parts and sharp edges.
- Check for kinks along the entire run
- Look for cracks or hardening near the ends
- Replace worn clamps at both ends
- Note any fuel odor, which suggests a leak
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J5357971 |
| UPC | 848399064063 |
| Inside diameter | 11/16” |
| Outside diameter | 1-1/8” |
| Length | Approximately 13.25 inches |
| Part type | Fuel filler vent hose |
Vehicle fitment
Match the connection points on your vehicle to this vent hose before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One fuel filler vent hose, as named in the title. No clamps or fittings are mentioned.
