Overview

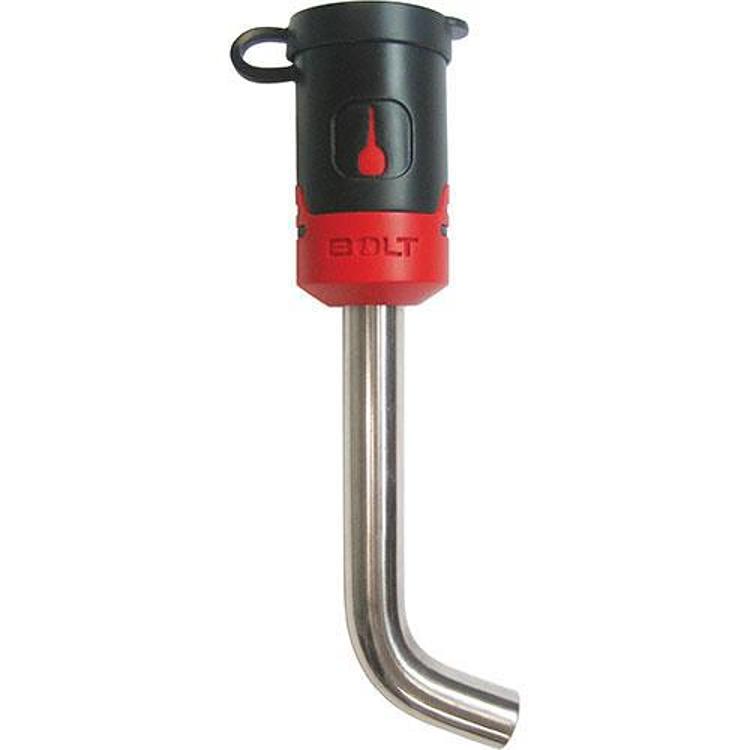

The BOLT Lock 1/2 Inch Receiver Lock, part number 7023629, is a trailer hitch pin lock with a 1/2 inch stainless steel shaft for class 1 and class 2 hitch receivers. It opens with a Toyota key.
The lock uses a solid zinc core and an automotive grade cylinder, with a stainless steel shutter that keeps dirt and moisture out of the keyway. It is made in the USA and carries a limited lifetime warranty. It is a universal fit, so check your receiver opening before ordering.
Key features
- Opens with a Toyota key
- Solid zinc core with an automotive grade cylinder
- 6 plate-tumbler sidebar designed to resist picking and bumping
- Stainless steel lock shutter keeps out dirt and moisture
- Rugged jacket and cap
- Stainless steel 1/2 inch diameter shaft for class 1 and 2 hitches
- Made in the USA
Before you install
Before installing any receiver lock, look at the receiver opening and the pin it will secure. The shaft should slide in without forcing, and it should seat fully so the lock sits flush against the receiver. If the pin is worn or the receiver has collected rust, clean it first, because a tight fit depends on clean metal. Mismatched hardware is a common reason a lock feels loose on the road.
Trail and road use both put steady load on the pin. Stainless steel handles moisture better than plain steel, but it can still bend under heavy impact or repeated stress. Replace a pin that shows deep dents, cracks at the bend, or a shaft that has changed shape. Keep the key on a ring you check often so you do not lose access during a stop.
- Check the receiver opening before every trip
- Wipe the shutter after wet or muddy use
- Replace a bent or cracked pin promptly
Specifications
| Brand | BOLT Lock |
|---|---|
| Part number | 7023629 |
| UPC | 652732113130 |
| Shaft diameter | 1/2 inch |
| Shaft material | Stainless steel |
| Hitch class | Class 1 and class 2 |
| Core | Solid zinc |
| Cylinder | Automotive grade |
| Tumbler | 6 plate-tumbler sidebar |
| Shutter | Stainless steel |
| Warranty | Limited lifetime |
| Country of manufacture | USA |
Vehicle fitment
No vehicle year, make, model or trim applies to this lock. It is a universal fit for a 1/2 inch receiver shaft in class 1 and class 2 hitches, so fit depends on the receiver opening. Confirm your vehicle’s year, model and trim before ordering.
The Toyota reference refers to the key the lock opens, not to a listed vehicle. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Compare the included hardware with your installation plan before you start.
