Overview

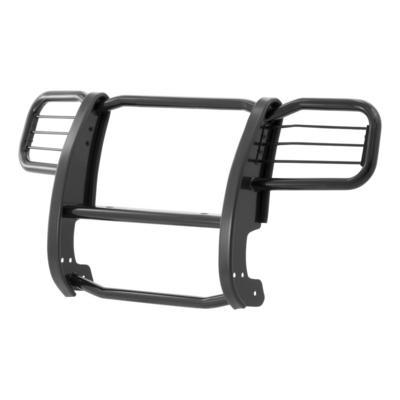

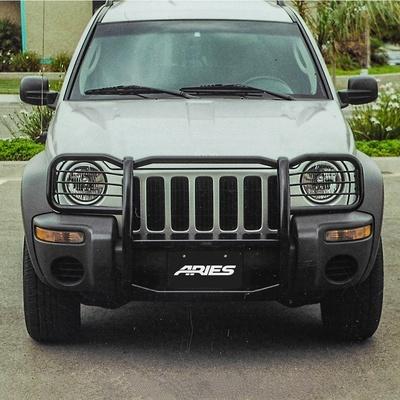

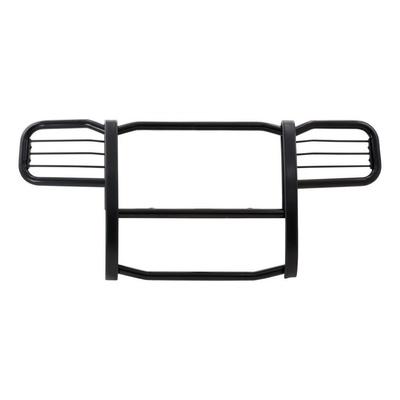

The ARIES Offroad Bar Grille/Brush Guard in black, part ARS1045, is a front grille guard for the 2002–2004 Jeep Liberty (KJ). It uses a wraparound brush guard layout with wire headlight cages, horizontal crossbars and rubber-coated vertical risers to protect the front end.
Aries says each guard is built from 1-1/2 inch heavy-wall tubing, with the tubes welded to the vertical risers to form a one-piece frame. The black version is a semi-gloss powder-coated steel guard. Aries also offers a polished stainless version with a 304 stainless finish, but this part number is the black steel version.
The guard adds front-end protection and a more aggressive look. It is a direct fit for the 2002–2004 Jeep Liberty, the only fitment for this part number.
Key features
- Wraparound brush guard configuration
- Wire headlight cages for light protection
- Horizontal crossbars and rubber-coated vertical risers
- 1-1/2 inch heavy-wall tubing
- One-piece welded frame for strength and rigidity
- Black powder coat steel finish
Caring for a powder-coated guard
Powder-coated steel guards hold up well to brush and trail contact, but chips expose bare steel to moisture. Wash off mud after off-road use and look over the coating around the welds and bends, where chips appear first. Touch up small chips early with a matching touch-up paint so rust does not spread under the finish.
Because the guard is bolted to the front of the vehicle, check the mounting bolts after the first trips and again after heavy use. Keep wire headlight cages aligned so the lights are not pinched or blocked, and make sure the headlights still aim correctly after installation. Rubber-coated risers protect the paint on the front end, but they can wear, so replace any that split.
Guards add weight to the front end, which can affect steering and braking on the road. Drive carefully after installing a heavier front guard, and allow for the added load when towing or carrying cargo.
- Touch up chips before rust spreads
- Re-check bolts after the first trips
- Confirm headlight aim after install
Specifications
| Brand | Aries Offroad |
|---|---|
| Part number | ARS1045 |
| Application | Jeep Liberty (KJ), 2002–2004 |
| Material | Steel |
| Finish | Black powder coat |
| Tubing | 1-1/2 inch heavy-wall |
| Headlight protection | Wire headlight cages |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2002–2004 Jeep Liberty (KJ).
Liberty models from 2005 onward and other Jeep generations are not part of this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The guard is a direct fit for the KJ and requires no drilling or modification. Check the package contents against your installation before starting.
What’s included
Check the package contents against your installation before starting, including any hardware and light mounts needed.
