Westin HDX LED Grille (Flood) – 34-1065

Westin

Shop Toyota Tacoma Grille Inserts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2016–2018 Toyota Tacoma in Limited, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims
  • HDX LED grille with B-Force double row and a pair of single row LED light bars, part number 34-1065
  • 11 gauge steel frame with textured black powder coat
  • Bolt-on, no drilling required; trimming needed on some applications

Description

Overview

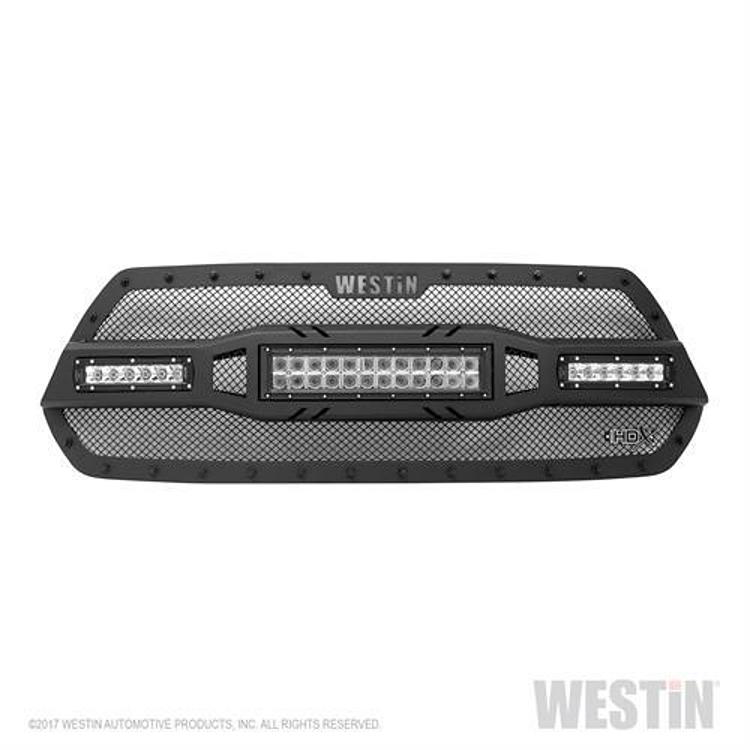

The Westin HDX LED Grille (Flood), part number 34-1065, is a front grille with built-in LED light bars for the 2016–2018 Toyota Tacoma. It bolts on with no drilling required.

The grille has an 11 gauge steel frame with black rivets along the top and bottom edges. Westin gives raw lumen ratings for each bar, 6480 for the double row and 2980 for the single row. LED light configuration varies by application.

Key features

  • Form-fitted mesh grille with a laser-cut Westin logo
  • 11 gauge steel frame and 16 gauge steel LED housing
  • Black rivets along the top and bottom edges for an aggressive look
  • B-Force double row LED light bar plus a pair of single row LED light bars
  • Bolt-on installation with no drilling required
  • Raw lumen ratings listed: 6480 (double row) and 2980 (single row)

Trimming and fit checks

Front LED grilles sit close to the radiator and the bumper, so measure clearances before cutting anything. Some applications need trimming to clear the factory mounting points, and a test fit before final installation helps avoid mistakes. Dry-fit the grille, check that the light bars sit square, and confirm the hood closes without pressure.

Plan the wiring route before fastening the bar. Keep the harness away from engine bay heat, moving parts and sharp edges, and use a fused relay so the lights do not draw directly from a factory circuit. Clean the mesh and check the radiator fins for debris now and then, since airflow matters for engine cooling.

  • Test fit before final mounting
  • Route wiring away from heat and moving parts
  • Keep the grille mesh clear of debris

Specifications

Brand Westin
Part number 34-1065
UPC 700008506301
Position Front
Frame 11 gauge steel
LED housing 16 gauge steel
Finish Textured black powder coat
Double row output 6480 raw lumens
Single row output 2980 raw lumens
Warranty 1 yr warranty; LED limited lifetime warranty

Vehicle fitment

It fits the 2016–2018 Toyota Tacoma in Limited, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims.

This grille covers the 2016–2018 Tacoma trims above. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Bolt-on installation with no drilling is described, but trimming is required on some applications. Run the LED wiring through a fused relay circuit.

What’s included

The grille includes the B-Force double row LED light bar and a pair of single row LED light bars.

Not included: Check the package contents for a wiring harness and mounting hardware before starting the install.

SKU: WES34-1065 Category:

Specification

Shipping weight 26.00 lbs
Package dimensions 48.00 × 15.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2018Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Westin 34-1065 fit a 2019 Toyota Tacoma?

The grille covers only the 2016–2018 Toyota Tacoma. Check your year and trim before ordering, since other years and models fall outside that fitment.

Does this grille need drilling?

No. It bolts on with no drilling required. Trimming is needed on some applications, and the LED light configuration varies by application.

How bright are the LED light bars?

The double row bar is rated at 6480 raw lumens and the single row bars at 2980 raw lumens. Check the package contents for wiring and hardware before installation.

Does an LED grille affect radiator airflow?

Mesh grilles generally allow airflow through the front opening, but light bars and frame sections can block some of it. Keep the radiator area clear of debris and check that the cooling fan runs normally after the first few drives.
