Overview

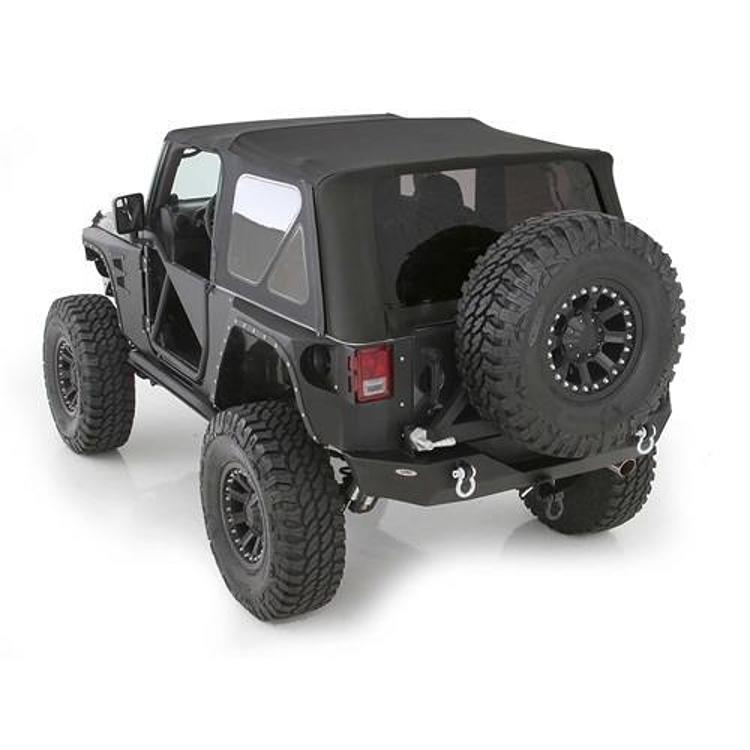

The Smittybilt Replacement Soft Top with Tinted Windows in Black Diamond, part number 9070235, is a complete OE-style replacement for 2-door Jeep Wrangler JK models. It fits 2007 to 2009 Wrangler JK Rubicon, Sahara and X. The top replaces a worn or torn factory soft top and fits over the original hardware and frame.

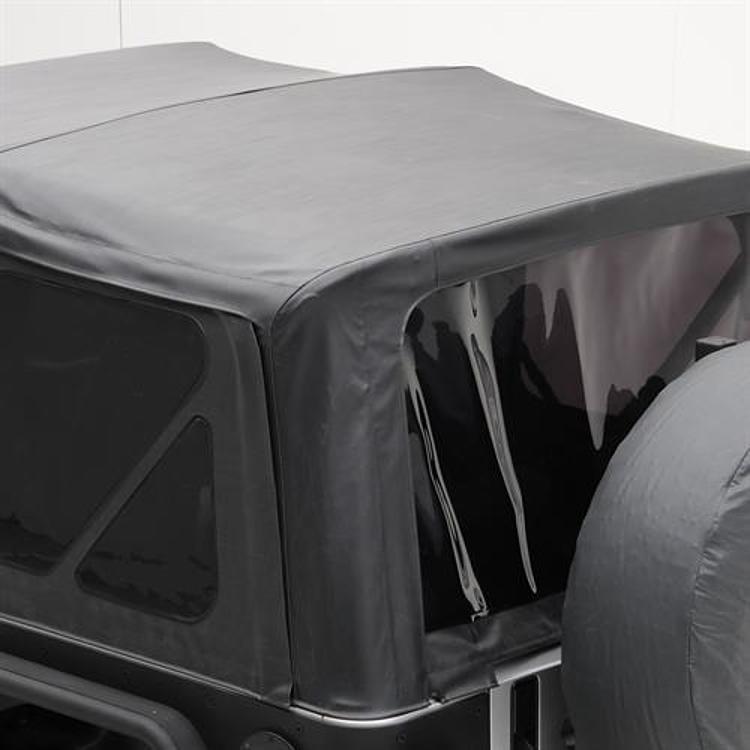

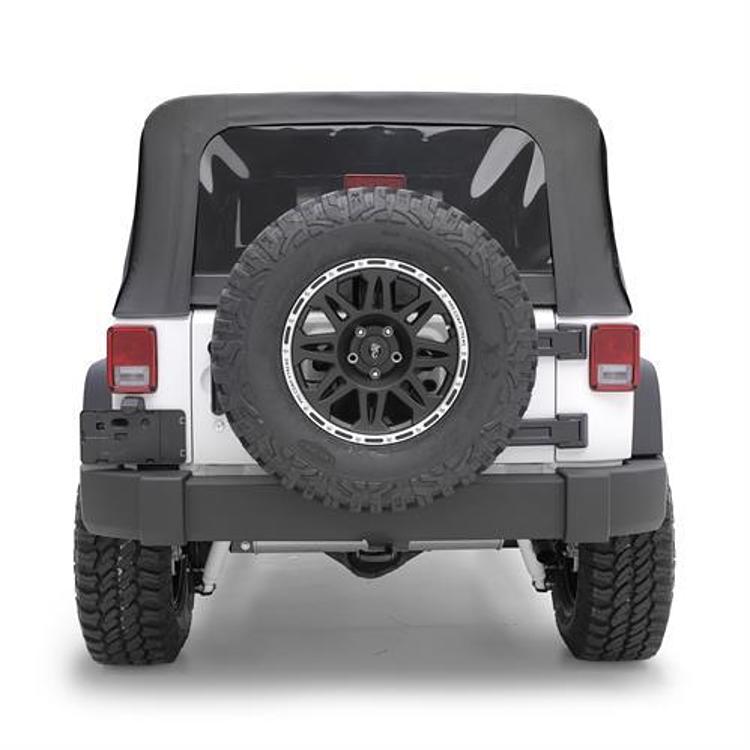

The fabric is marine grade durable vinyl coated OEM-style material that Smittybilt says resists fading and stretching. Seams are heat sealed to prevent leaks, and wick stop thread seals the stitch holes. The side windows and rear window zip out for full ventilation, and the zippers are self-correcting so they run smoother and last longer. The window glass is DOT approved.
Key features
- Complete OE replacement top for 2-door JK models
- Marine grade durable vinyl coated fabric
- Heat-sealed seams with wick stop thread on the stitch holes
- Side and rear windows zip out for ventilation
- Self-correcting zippers
- DOT approved tinted window material
Replacing a worn soft top
A factory soft top tends to fail at the seams, along the fold lines and around the header, where water finds its way in. Before fitting a replacement, inspect the frame for bent or cracked brackets and clean the sealing surfaces so the new top can compress against them evenly. Old door seals that have hardened should be replaced, since a new top will not seal well against them.
Take a few notes before you remove the old top, such as where the bolts and clips sit and how the tension was set. Doing this makes the fit-up faster and reduces the chance of a gap at the windshield or rear edge.
- Check the factory frame for bent or cracked brackets
- Inspect door seals for hardening before fitting
- Clean sealing surfaces before the top goes on
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 9070235 |
| Color | Black Diamond |
| Window type | Tinted |
| Doors | 2-door models; doors not included |
| Hardware | Not included; fits over original factory OE hardware and framework |
Vehicle fitment
It fits 2007 to 2009 Jeep Wrangler (JK) Rubicon, Sahara and X models with direct fit, and it is a 2-door top.
Four-door Unlimited models and 2010 and later Wrangler JK years are not in the listed years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the top fits over the factory hardware, the door surrounds and hardware must already be on the vehicle. They are not included with this top.
What’s included
The soft top with its side and rear windows. Not included: doors and hardware.
