Overview

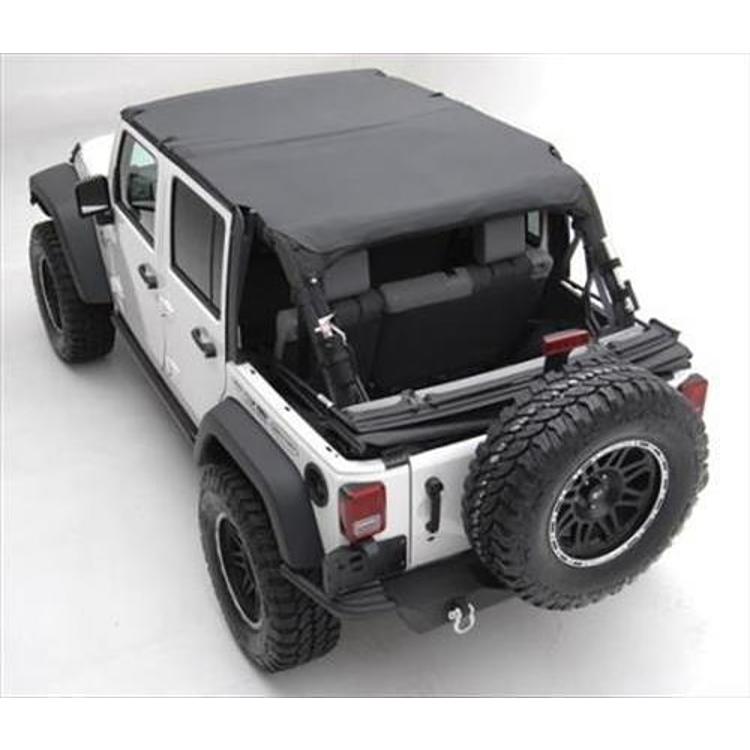

The Smittybilt Extended Brief Top and Windshield Channel Bundle in Black Diamond, part BIKIJK1016435, is a 4-door extended top sold with its windshield channel. The top protects front and rear passengers from the elements. It fits the 2010 to 2016 Jeep Wrangler JK Unlimited, with the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

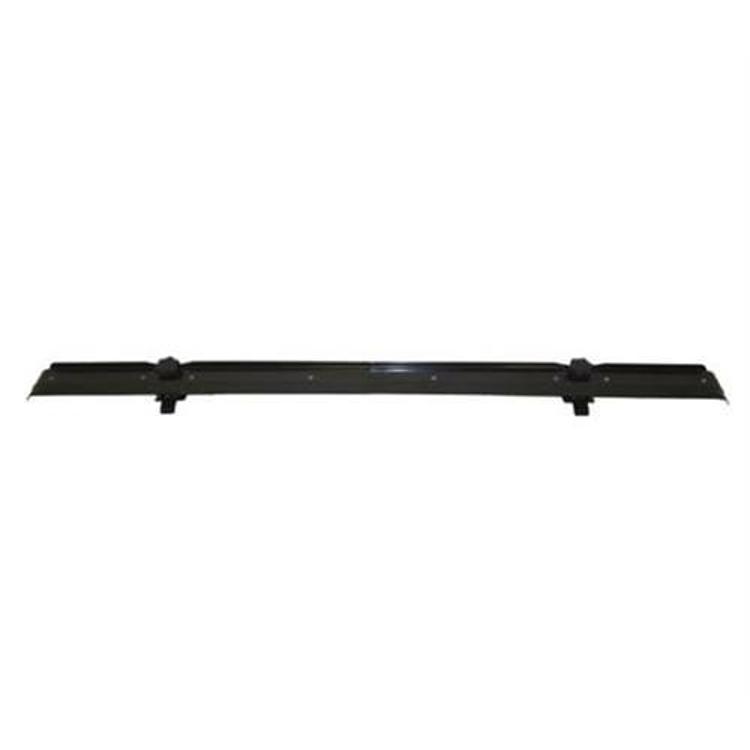

The top is built from the same durable components as Smittybilt’s soft tops and is designed for a hassle-free installation. It attaches to the rear with J-clips and buckles. The windshield channel included in the bundle is a no-drill part, so the channel mounts without cutting into the windshield frame.
The Black Diamond pattern is the finish for this bundle. Soft goods of this type are meant to make a Wrangler more comfortable on longer drives.
Key features
- Protection for front and rear passengers
- No-drill windshield channel included
- J-clip and buckle attachment at the rear
- Black Diamond pattern
- Front and rear coverage
Installing a no-drill channel
Bundled channels save a separate purchase, but they still need a careful fit. Check the windshield frame and the channel clamps before installing the top, and make sure the channel sits level and firm. A no-drill mount depends on clean contact surfaces, so wipe the frame before mounting and keep the area dry.
The top attaches to the rear with J-clips and buckles, so the rear tension and the front channel should be set together. Check the buckles after the first few drives, since new fabric can settle. Inspect the channel for wear each season, and replace any clamp that slips or cracks.
- Wipe the windshield frame before mounting
- Set front and rear tension together
- Check the channel clamps each season
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | BIKIJK1016435 |
| Color | Black Diamond |
| Doors | 4-door models |
| Coverage | Front and rear |
| Windshield channel | No-drill, included |
| Attachment | J-clips and buckles at the rear |
Vehicle fitment
Fits the 2010 to 2016 Jeep Wrangler JK Unlimited in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions.
The list ends at 2016, so the 2017 and 2018 Wrangler JK, the 2007 to 2009 Wrangler JK, and the Wrangler JL are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The windshield channel is included and needs no drilling. The top attaches to the rear with J-clips and buckles.
What’s included
The Black Diamond extended brief top, the no-drill windshield channel, J-clips and buckles.
