Rigid Industries E-Series Flush Mount Bucket (Black) – 40012B

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries 40012W E-Series flush mount bucket in welded stainless steel
  • Recessed mount for 10 inch E-Series and E2-Series lights
  • Gasket provided for sealed mounting
  • E-Series light bar comes separately

Description

Overview

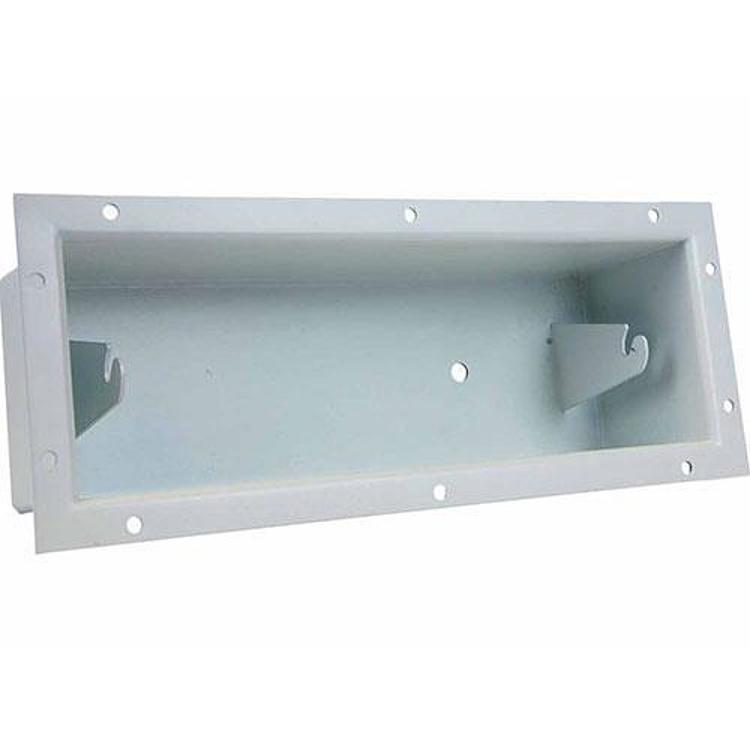

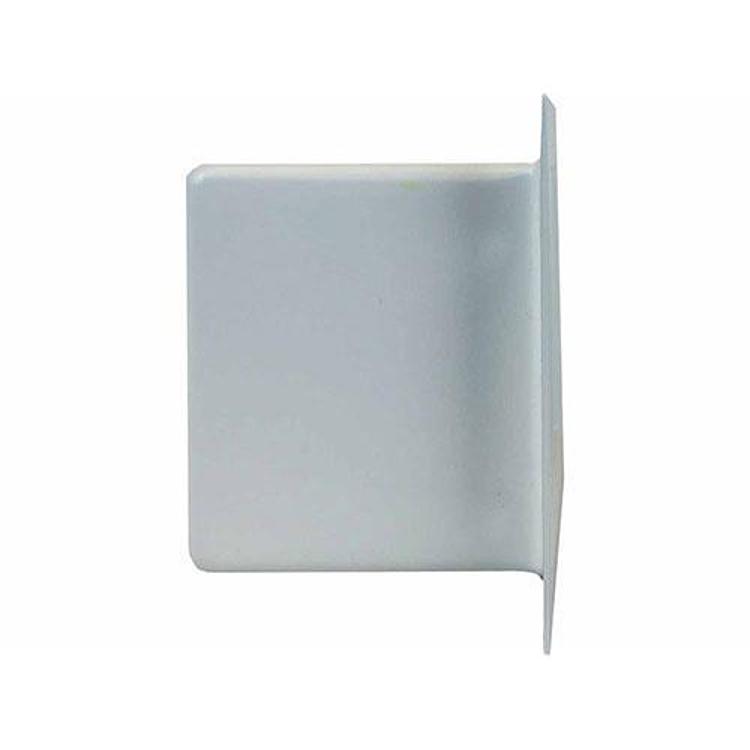

The Rigid Industries E-Series Flush Mount Bucket, part number 40012W, is a recessed bucket mount for 10 inch E-Series and E2-Series lights. The product name shows 40012B while the part number given is 40012W; use 40012W when checking compatibility.

The bucket is welded from stainless steel and finished in Tiger Series 38 White powder coat, with a gasket for sealed mounting. The E-Series light bar comes separately.

Key features

  • Recessed flush mount design
  • Welded stainless steel construction
  • Gasket provided for sealed mounting
  • Made for 10 inch E-Series and E2-Series lights

Choosing a recessed mount

A recessed bucket sets the light flush with the mounting surface, which reduces how far the light sticks out and how exposed the lens is to brush and branches. The tradeoff is that the panel must be opened to the bucket’s size, and the surrounding metal has to be sound enough to hold the light securely. Before cutting, check what is behind the panel, including wiring routes, brackets and any structure that the bucket body needs to clear.

Pairing the bucket with a light of the correct size is the main choice to get right. Mismatched light and bucket combinations can leave gaps around the lens or stop the light from seating. Once mounted, look over the gasket and the fasteners after the first few outings, since vibration can loosen hardware on any off-road setup.

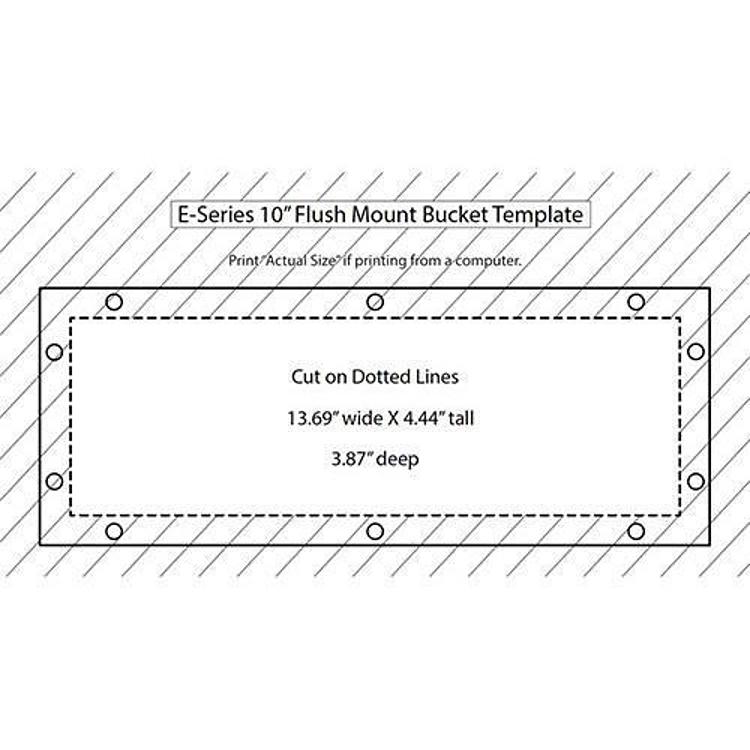

  • Confirm the light size matches the bucket before cutting
  • Check clearance behind the panel for wiring
  • Inspect the gasket for flattening or cracks
  • Re-check fasteners after the first few trail runs

Specifications

Brand Rigid Industries
Part number 40012W
UPC 849774004193
Construction Welded stainless steel
Finish Tiger Series 38 White powder coat
Color (per title) Black
Light size 10 inch E-Series and E2-Series
Sealing Gasket provided
Fitment Universal fit

Vehicle fitment

It is a universal fit bucket, and no vehicle is named. It is sized for 10 inch E-Series and E2-Series lights, so confirm the mounting location and clearance on your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the bucket to a 10 inch E-Series or E2-Series light before mounting, because the bucket is sized for those lights. Use the provided gasket for a sealed mount.

What’s included

Bucket mount with a gasket for sealed mounting.

Not included: E-Series light bar, which comes separately.

SKU: RIG40012W Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 16.50 × 6.50 × 4.30 in
brands

Questions & Answers

What is the Rigid Industries 40012W?

It is an E-Series flush mount bucket, a recessed welded stainless steel mount for 10 inch E-Series and E2-Series lights. A gasket is provided for sealed mounting.

Is the light included with the 40012W bucket?

No. The E-Series light bar comes separately, so get a 10 inch E-Series or E2-Series light separately and match it to the bucket before mounting.

Does the 40012W fit my vehicle?

No vehicle is named for this bucket. It is a universal fit bucket sized for 10 inch lights, so confirm the mounting location and clearance on your truck first.

Why does the name say 40012B but the part number is 40012W?

The product name shows 40012B, while the part number given is 40012W. Use 40012W when checking compatibility, and confirm the number with Rigid Industries before ordering.

How do I clean a black powder-coated bucket surface?

Use mild soap and water and a soft cloth. Avoid abrasive pads, which can scratch the finish and expose metal to corrosion around the mounting surface.

What should I check if the bucket will not seat flush?

Look for debris, burrs or a warped cutout edge. Clean and deburr the opening, then test-fit again. Forcing the light in can damage the gasket or the bucket.
