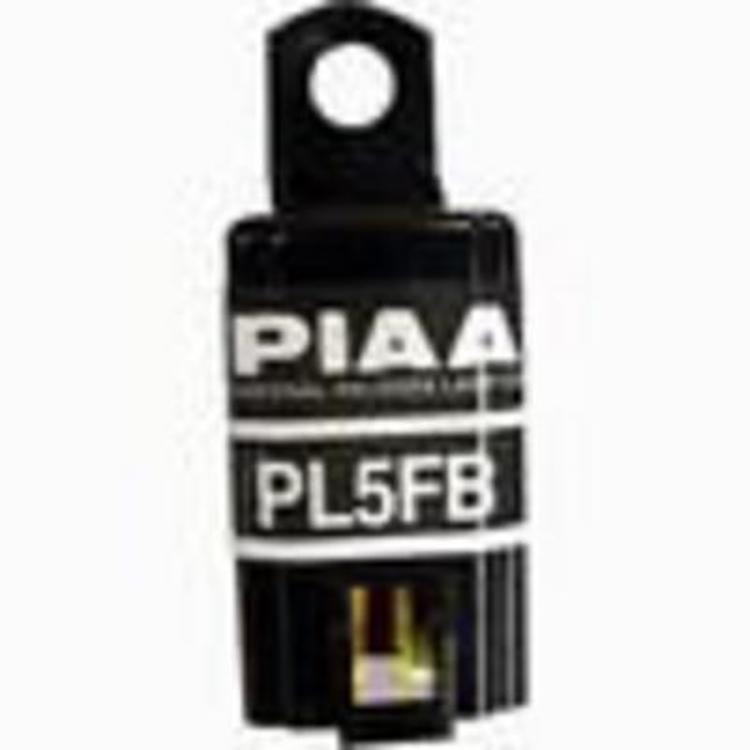

PIAA Relay Up To 85W (PL5FB

Piaa Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PIAA PL5FB relay handling up to 85W x 2
  • Replacement for harnesses 34042, 34085 and 34210
  • Plug and play installation
  • Limited lifetime warranty on PIAA relays

Description

Overview

The PIAA Relay PL5FB handles up to 85W x 2 and is a replacement relay for harnesses 34042, 34085 and 34210. It is universal fit and is not tied to a vehicle.

Model references PL5FB, LR-9B, LR-13 and LR-18 appear with this relay. PIAA says all of its relays carry a limited lifetime warranty, and plug and play installation is stated.

Key features

  • Plug and play installation
  • Handles up to 85W x 2
  • Replacement for harnesses 34042, 34085 and 34210
  • Limited lifetime warranty on PIAA relays
  • Model references PL5FB, LR-9B, LR-13 and LR-18

Relay basics for auxiliary lights

A relay lets a small switch control a larger electrical load by energizing a coil that closes internal contacts. In auxiliary lighting, this keeps heavy current off the dash switch and shortens the wire run through the cabin. A relay that is rated below the total load of the lights will overheat, so add up the wattage of everything on the circuit before choosing one.

Relays and their sockets are often replaced together when a harness is updated. If the socket terminals look discolored or the relay clicks weakly, inspect the connections before blaming the relay itself.

  • Total the wattage on the circuit before installing
  • Inspect socket terminals for discoloration
  • Replace the socket with the relay when it looks worn

Specifications

Brand PIAA Lighting
Model reference PL5FB, LR-9B, LR-13, LR-18
UPC 722935330860
Product type Relay
Handling capacity Up to 85W x 2
Compatible harnesses 34042, 34085, 34210
Installation Plug and play
Warranty Limited lifetime on PIAA relays
Fitment Universal fit

Vehicle fitment

The relay is universal fit and is not specific to a vehicle. Match it to your harness by the numbers 34042, 34085 or 34210 before you install it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This relay is plug and play and is intended to connect to a matching harness. Check that the total load on the relay stays within the 85W x 2 handling figure before installing.

What’s included

The PIAA relay.

Not included: Harnesses 34042, 34085 and 34210 are named for compatibility but are not included with this item.

SKU: PIA33086 Category:

Specification

Shipping weight 0.05 lbs
Package dimensions 2.50 × 2.50 × 1.60 in
brands

Questions & Answers

Is the PIAA relay plug and play?

Yes. This relay is plug and play. It is a replacement for harnesses 34042, 34085 and 34210, so match the relay to one of those harness numbers before installing it.

What is the load limit on the PIAA PL5FB relay?

It handles up to 85W x 2. Voltage and amperage ratings are not included, so check your light wattage against that figure before installing.

Does the PIAA relay come with a warranty?

Yes. PIAA relays are backed by a limited lifetime warranty. Keep your proof of ownership and review PIAA's warranty terms before making a warranty claim.

How can I tell if a relay has failed?

Common signs are lights that flicker, do not come on, or a relay that clicks weakly or not at all. Check the socket terminals for heat marks or corrosion first. If the connections are sound and the relay still fails to switch, replace it.

Can a relay be used on a circuit with more load than its rating?

No. A relay should be used only within its stated handling figure. Overloading it can cause the contacts to overheat and fail. If the lights draw more current, select a relay rated for the full load.
