PIAA H4 G3 LED Bulbs (White) – 26-17404

Piaa Lighting

Shop Piaa Lighting Replacement Bulbs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PIAA H4 G3 LED bulbs, part number 26-17404, white 6200K, 24W
  • Sold as a pair with OE connectors for plug and play fitting
  • CREE XP-L LEDs, adjustable beam and pulse width modulation control
  • 5-year warranty from PIAA; does not comply with FMVSS108 or CMVSS108
  • Universal Fit: check the H4 base and clearance before fitting

Description

Overview

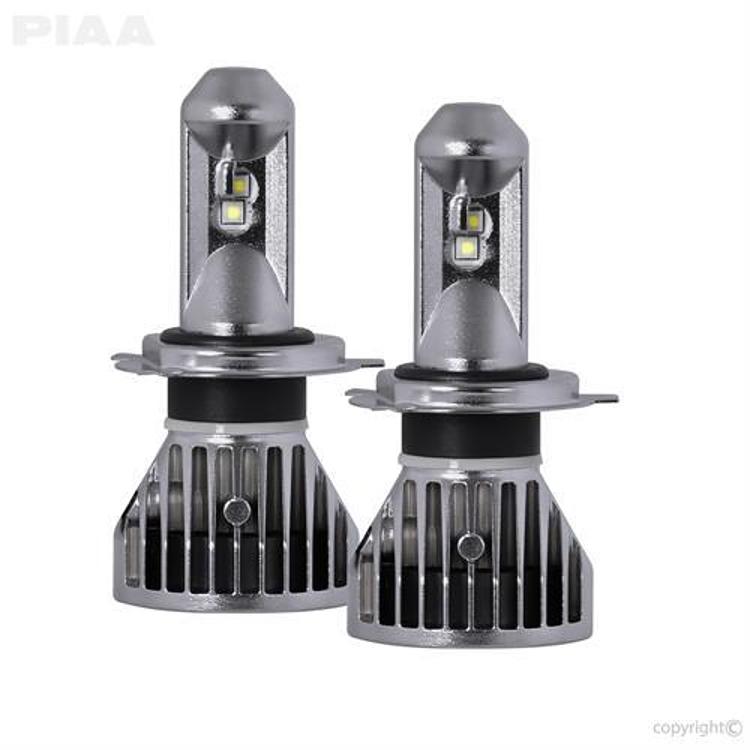

The PIAA H4 G3 LED bulb, part number 26-17404, is a pair of white 6200K LED replacement bulbs with an H4 base, rated 24 Watts. It is a plug and play LED bulb with factory-style connectors, so it fits a factory H4 socket without splicing, cutting or soldering.

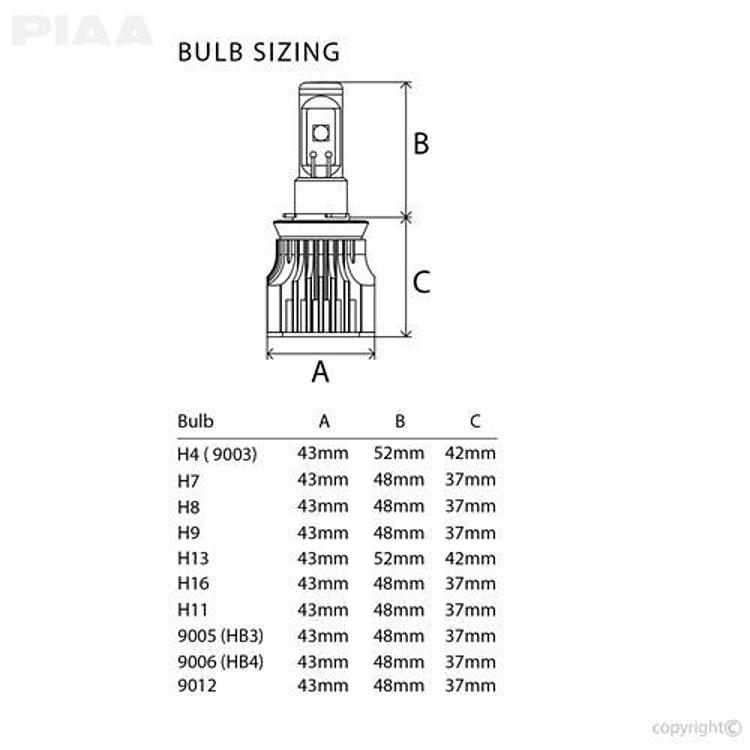

The G3 is built around higher output CREE XP-L chips. PIAA says these provide up to 50% more light output than earlier models, along with a wider viewing angle and a thinner circuit board. An adjustable beam lets installers fine-tune alignment for precise optical output. The bulbs are larger than stock halogen bulbs, so clearance in the housing needs to be checked before fitting.

The redesigned fan provides 70% more airflow than the previous design and cuts fan noise by 40%. Pulse width modulation control is included to reduce flicker in most applications when the lamp runs at lower voltage in daytime running light mode.

Key features

  • CREE XP-L LEDs with higher output and a wider viewing angle
  • Pulse width modulation control aimed at eliminating flicker in most applications
  • Adjustable beam for fine-tuning alignment
  • Redesigned fan with 70% more airflow and 40% less fan noise
  • Plug and play with OE connectors, no splicing or soldering
  • 5-year warranty from PIAA

Heat management and clearance

LED headlight bulbs produce heat at the base rather than the filament, so cooling is part of the design. The fan and heat sink must have room to move air. Keep the housing vent and the area behind the bulb free of dust, and make sure the fan can spin freely before closing the lamp.

A larger bulb body can touch the reflector, the dust cover or the wiring plug. Check clearance with the lamp assembly on the bench before installing. Fan wear is also a sign to watch for: a grinding or rattling fan usually means the bearing is failing and the bulb should be inspected soon.

  • Confirm clearance with the lamp removed
  • Check the fan for noise or resistance after installation
  • Keep the vent free of debris

Specifications

Brand PIAA
Part number 26-17404
UPC 722935811000
Bulb base H4
Bulb type LED
Color White
Color temperature 6200K
Power 24 Watts
LED chips CREE XP-L
Warranty 5 years
Compliance Does not comply with FMVSS108 or CMVSS108
Quantity Pair

Vehicle fitment

This is a universal-fit bulb identified by its H4 base, and no vehicle models are named. Check the H4 socket and the clearance around the larger bulb body before ordering.

Confirm your vehicle’s year, model and trim before ordering, and make sure your housing has room for the larger body.

Installation notes

Plug and play installation uses the factory connectors, so no splicing, cutting or soldering is needed. Because the bulbs are larger than stock, check clearance in the housing, and note that some models may not be able to use the bulb dust cover. The bulbs do not comply with FMVSS108 or CMVSS108, so check local road-use rules and use fused relay wiring where your setup calls for it.

What’s included

The bulbs are sold as a pair with OE connectors for plug and play fitting. Confirm whether your housing needs a dust cover or other hardware before starting.

SKU: PIA26-17404 Category:

Specification

Shipping weight 1.70 lbs
Package dimensions 6.00 × 4.30 × 4.30 in
brands

Questions & Answers

Are PIAA 26-17404 G3 LED bulbs vehicle-specific?

No vehicles are named. The bulbs are universal fit and identified by their H4 base, so confirm the socket matches and check housing clearance, then confirm your vehicle's year, model and trim before ordering.

Do the G3 bulbs need splicing or soldering?

No. PIAA describes them as plug and play with factory bulb connections, so they fit the H4 socket without splicing, cutting or soldering.

What color temperature and wattage do they have?

They are 6200K white and rated 24 Watts, sold as a pair. The LED chips provide up to 50% more light output than previous models.

Are these bulbs legal for road use?

They do not comply with FMVSS108 or CMVSS108. Check your local road-use rules before installing them on a vehicle driven on public roads.

Can an LED bulb replace a halogen bulb without changing anything else?

Often it can, but not always. LED bulbs can change the light pattern and heat load, and the larger body may not fit the existing housing. Check clearance, confirm the socket fits, and verify the beam pattern after installation.
