Overview

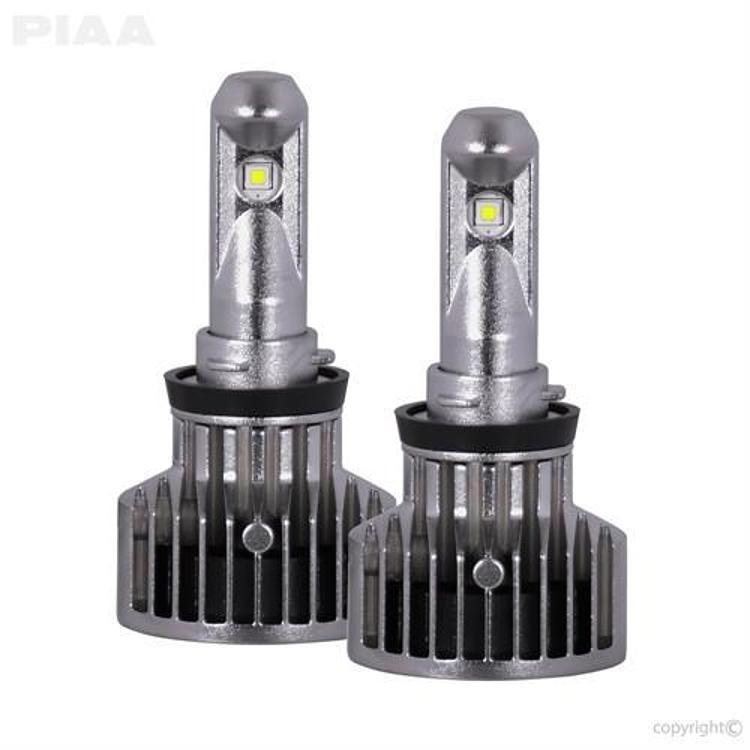

The PIAA 9006/HB4 G3 LED bulb, part number 26-17496, is a white LED replacement bulb with a 9006 (HB4) base, sold as a pair. It is universal fit and built for factory headlight and lamp housings that take a 9006 bulb. It is a plug and play upgrade that uses the factory bulb connections.
The G3 uses CREE XP-L LED chips that deliver up to 50% more light output than earlier G3 models. The wider viewing angle fills the housing for a sharp beam pattern with more coverage and distance. Each bulb is rated 23 watts. Because the bulb is universal fit, the 9006 base and the design of your housing determine whether it matches.
Key features
- CREE XP-L LED chips with PIAA’s stated output increase of up to 50% over previous models
- Wider viewing angle that PIAA says fills the housing and reduces dead spots
- Pulse Modulation Control drivers intended to reduce flicker in daytime running light mode
- Slimmer main column that places the LED chips closer to where a halogen filament sits
- Redesigned fan that PIAA says moves 70% more air and cuts fan noise by 40%
- Plug and play fit with factory bulb connections; no splicing, cutting or soldering
- Backed by a 5-year warranty from PIAA
Replacing bulbs in pairs
Headlight bulbs age at different rates, and a new bulb beside an old one often looks mismatched in color and output. Replacing both sides at once keeps the beam even and avoids a second trip to the shop when the older bulb fails. Handle the new bulbs by the base rather than the glass, and keep oil from fingers away from the lens area.
Lamp housings collect moisture, so look for condensation or a cracked seal before fitting new bulbs. A damaged housing can let water reach the base and corrode the contacts. Check that the dust cover or boot seats fully after installation, and aim the beams on level ground.
- Inspect the housing seal for cracks
- Clean the contacts before seating the base
- Aim both headlights after the swap
Specifications
| Brand | Piaa Lighting |
|---|---|
| Part number | 26-17496 |
| UPC | 722935811109 |
| Bulb type | LED |
| Bulb base type | 9006 (HB4) |
| Watts | 23 W |
| Color | White |
| Quantity | Pair |
| Fitment | Universal fit |
| Warranty | 5 years (per PIAA) |
| Compliance | Does not comply with FMVSS108 or CMVSS108 |
Vehicle fitment
This is a universal fit bulb, not a vehicle-specific part, and no particular car, truck or SUV is named. The fit check is the base: a 9006 (HB4) socket in the housing you plan to use.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The G3 seats in the existing socket without wiring changes, so the job is mainly confirming the base type. The drivers use Pulse Modulation Control, which reduces flicker in daytime running light mode. These bulbs do not meet FMVSS108 or CMVSS108, so check local regulations before using them on public roads. Disconnect the battery before replacing a bulb in any headlight or lamp.
What’s included
One pair of PIAA 9006/HB4 G3 LED bulbs, part number 26-17496, in white.
Not included: Wiring, harnesses and other hardware are not part of this package.
