Overview

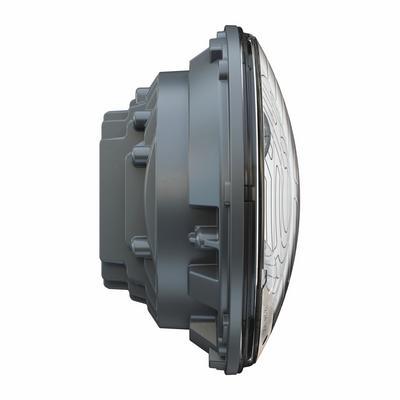

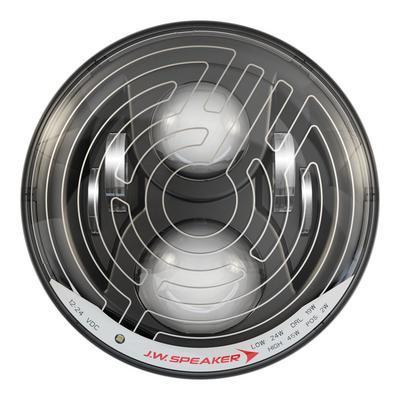

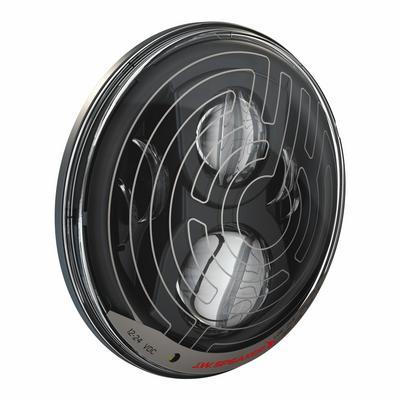

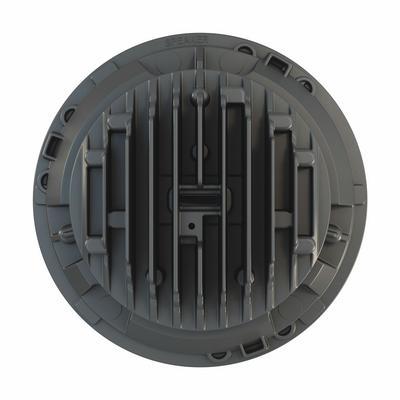

The JW Speaker Model 8700 Evo 2 Dual Burn 7-inch headlight with a black bezel, part number J/W0556281, is a round LED headlight assembly with a heated lens. It is a Universal Fit design, so it is not built for one make or model, and the housing size must be checked before installation. It is the first 7-inch LED headlight offered with a heated lens and was built for transport applications where delivery timing and visibility matter.
The heated lens, called SmartHeat technology, is designed to keep snow and ice from building up so the light output stays unobstructed. The Dual Burn pattern combines a Low Beam, a ComfortLite beam and a High Beam, so one headlight covers close work in front of the vehicle as well as light above the horizon and down the road. The housing is built for harsh operating conditions and suits buyers looking for a 7-inch round LED headlight with a heated lens.
Key features
- SmartHeat heated lens designed to keep the lens clear of snow and ice build-up
- Low Beam for light directly in front of the vehicle
- ComfortLite beam for light above the horizon
- High Beam for a punch of light down the road
- Solid optics that JW Speaker says direct light precisely where it is needed
- LED light source in a 7-inch round housing with a black bezel
- Designed for transport applications and harsh operating conditions
Choosing and fitting a round headlight
A round 7-inch headlight is a sealed unit, so the first thing to check is the opening it goes into. Measure the existing housing or trim ring and confirm the diameter, mounting tabs and wiring plug line up. Universal Fit parts often need a bracket or adapter on some vehicles, and that is worth confirming before the old light comes out.
Heated lenses add a demand on the electrical system, so the circuit matters as much as the housing. Plan the wiring with a fuse and relay, and route the harness away from moving parts and heat. Aim the beam on level ground once the light is in, because the Dual Burn pattern changes how far light reaches down the road.
- Diameter and mounting points compared with the old headlight
- Seal condition on the rear of the housing
- Wiring routed away from heat and moving parts
- Aim checked on level ground after installation
Specifications
| Brand | JW Speaker |
|---|---|
| Part number | J/W0556281 |
| Model | 8700 Evo 2 Dual Burn |
| Type | Headlight assembly with LED |
| Size | 7 inches, round |
| Color | Black (black bezel) |
| Lens | Heated lens (SmartHeat technology) |
| Beam pattern | Dual Burn: Low Beam, ComfortLite, High Beam |
| Fitment | Universal Fit |
Vehicle fitment
This headlight is Universal Fit, so no specific vehicle years, makes or models apply. A 7-inch round housing must match the opening on your vehicle, so compare the diameter before ordering. Confirm fit for your vehicle’s year, model and trim before ordering.
Universal Fit does not confirm a match for any particular vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The heated lens draws additional power, so wire the headlight through a fused relay rather than directly from the battery circuit. Check local rules for auxiliary and road-use lighting before fitting it to a vehicle driven on public roads.
What’s included
The 7-inch round headlight assembly with LED is the item covered here. Verify that the wiring harness, mounting brackets and bulbs you need are on hand before starting the installation.
Not included: wiring harness, mounting hardware and bulbs or accessories beyond the headlight assembly.
