Overview

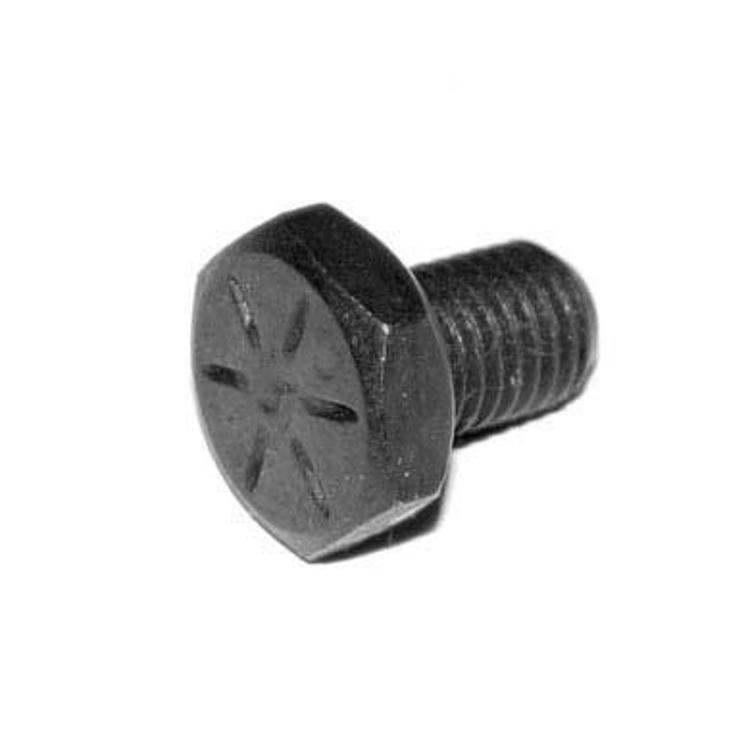

The Jeep 1949765 is a flywheel to torque converter bolt for Jeep automatic transmission applications with V8 and 6-cylinder engines. Four are required, so plan on installing a set of four bolts.
The bolt secures the torque converter to the flywheel. Confirm your engine and transmission match before ordering.
Key features
- Four bolts required per installation
- Applies to V8 and 6-cylinder engines
- Jeep-branded replacement bolt
- Flexplate category: automatic transmission flywheel to torque converter connection
Flexplate and converter alignment
The flexplate and torque converter bolts carry the engine’s rotating load into the transmission, so they must stay tight and correctly seated. Clean the mating faces before assembly, and inspect the flexplate ring gear and the bolt holes for cracks or wear. Any damage here can cause vibration, noise or starting trouble.
Bolts that are reused after heat cycles or stretching can loosen, so use a fresh set when the converter is removed. Install the converter so it sits fully against the crankshaft pilot before tightening. Follow your engine’s service procedure for torque and sequence, and recheck fastener security after the first few drives. Keep the four bolts together as a set.
- Inspect the flexplate ring gear
- Use fresh bolts when reuse is in doubt
- Confirm the converter seats on the pilot
Specifications
| Brand | Jeep |
|---|---|
| Part number | 1949765 |
| UPC | 70000432857 |
| Quantity required | Four |
| Engine application | V8 and 6-cylinder |
Vehicle fitment
This bolt applies to V8 and 6-cylinder engines. Confirm your engine and transmission before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Install four bolts, and check the package contents against your installation before starting.
Not included: Check the flexplate, torque converter and transmission against your installation before starting.
