Overview

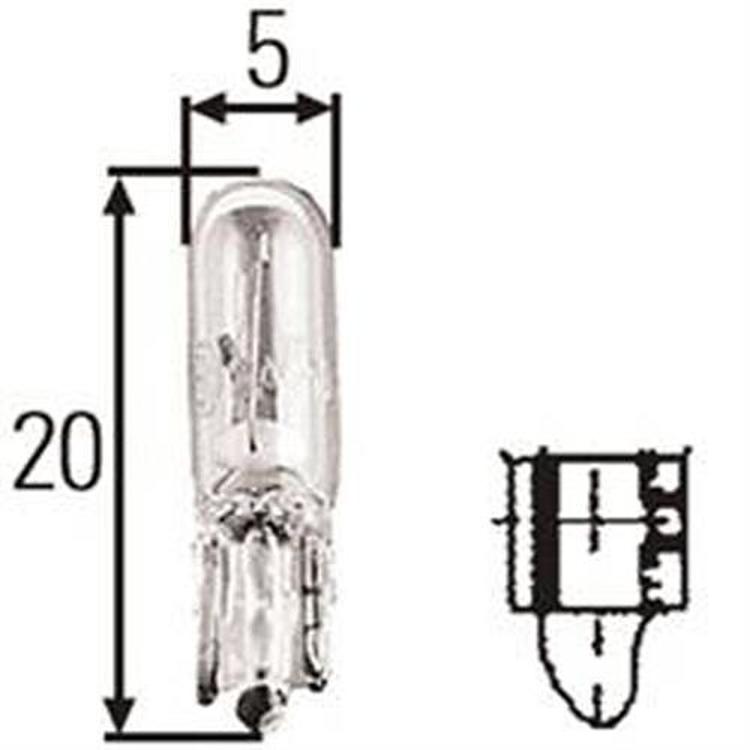

The Hella H83225001 is a T1.5 incandescent replacement bulb rated 12V 1.2W. Hella marks it as direct fit for a set of its own part numbers, which are listed in the specifications below.
Use it where a 12V T1.5 incandescent bulb is needed for one of those part numbers. Its rating is 1.2W, so match that figure to the bulb being replaced.
Choosing a replacement bulb
Incandescent bulbs like this T1.5 type produce light by heating a filament, which makes them simple to swap but sensitive to voltage and heat. Running a 12V circuit at the correct rating keeps the filament at its designed temperature and helps the bulb last. When you pull the old bulb, look at the glass for darkening or a blackened interior, which usually signals end of life rather than a wiring fault.
Small instrument and indicator bulbs are often replaced in groups, so check the others on the same panel when one fails. Mixing old and new bulbs of different ages can leave uneven brightness. Make sure the socket is clean and the contacts seat firmly, since corrosion can cause flicker that looks like a bulb problem.
- Check the socket and contacts for corrosion
- Keep the old bulb’s wattage in mind when replacing
- Handle the glass with a clean cloth
Specifications
| Brand | Hella |
|---|---|
| Part number | H83225001 |
| UPC | 70000231087 |
| Bulb type | T1.5 incandescent |
| Voltage | 12V |
| Wattage | 1.2W |
| Compatible part numbers | 001200041, 001200141, 001200151, 001200131, 008594001, 008594021, 008594011, 008594031 |
Vehicle fitment
No vehicle is named for this bulb. It is a direct fit for the compatible part numbers above, so check that your existing bulb’s number matches one of them, then confirm fit for your vehicle’s year, make, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The T1.5 incandescent bulb described above. No other contents are listed.
