Overview

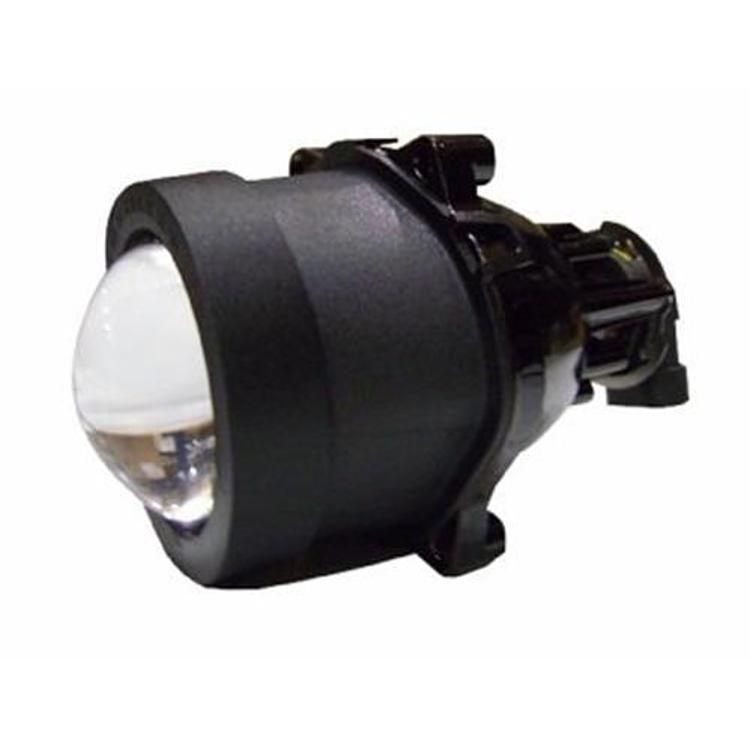

The Hella 998570001 is a 60mm headlamp with an HB3 low beam and a clear lens, sold as a headlight assembly with a universal housing. It is universal fit, so it is not designed for one vehicle.
Hella states SAE approval for the headlamp. Measure your mounting location against the 60mm size before installing.
Key features
- 60mm headlamp size
- HB3 low beam
- Clear lens
- Universal housing
- SAE approved
Mounting and aim checks
A sealed headlamp assembly is only as good as its mounting. Confirm that the housing has enough clearance behind it for the wiring plug and that the bracket holds it square to the grille or body. Tighten fasteners evenly so the lens does not stress the seal.
Aim is the other check to make. Adjust the beam on level ground with a driver in the vehicle, using a wall or marked target. A misaimed low beam can dazzle oncoming drivers, so recheck it after any change to the mounting or the vehicle’s load.
Pay attention to the relay and fuse for a lamp run on a separate circuit. Wiring should be secured away from hot exhaust parts and moving suspension components, and the connector should be protected from water.
Specifications
| Brand | Hella |
|---|---|
| Part number | 998570001 |
| UPC | 760687077381 |
| Size | 60mm |
| Beam | HB3 low beam |
| Lens | Clear |
| Housing | Universal |
| Approval | SAE Approved |
Vehicle fitment
Universal housing and universal fit, so no make, model or year is tied to this headlamp.
Check the mounting size and HB3 low beam bulb type against your vehicle first.
Installation notes
Confirm the HB3 bulb type before installing. Wire it through a fused relay and check local road-use rules.
What’s included
One headlamp assembly. A bulb is not part of the package, so have an HB3 bulb ready before installing.
