Overview

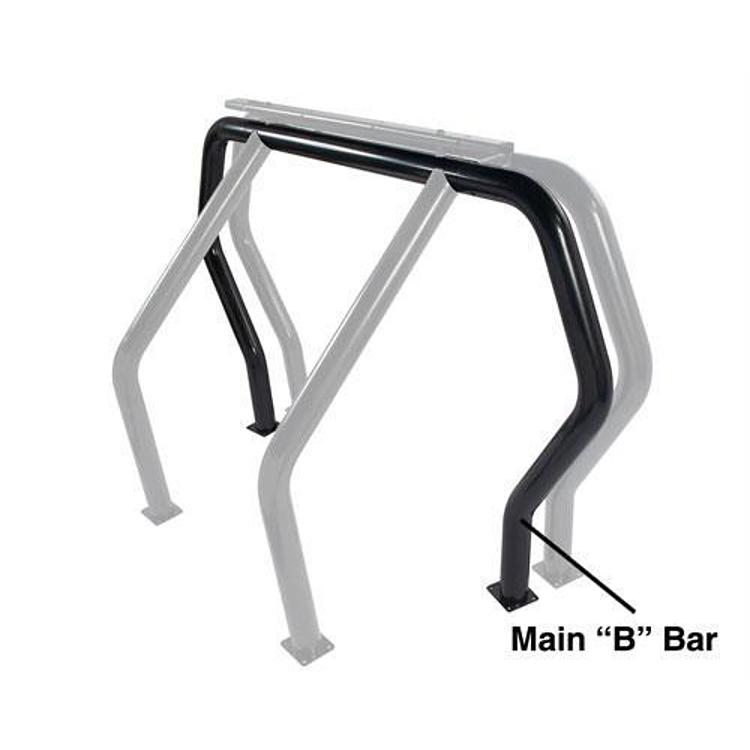

The Go Rhino Rhino Bed Bars rear main B bar, part number 91002B, is a black powder coated bar made from 3 inch diameter steel tubing for pickup truck beds. The Rhino Bed Bars line is offered in single, double and triple bar applications.
The bar bolts together with no exposed welds, and included plastic gaskets eliminate metal-to-metal contact. An optional light bar is available separately. Go Rhino also offers this line in chrome or polished stainless.
Key features
- 3 inch diameter steel tubing
- Bolt-together design with no exposed welds
- Included plastic gaskets eliminate metal-to-metal contact
- Single, double and triple bar applications
- Black powder coat finish with a 5 year warranty
- Optional light bar available separately
Choosing a bar setup
A rear main B bar is the central crossbar of a bed bar system, and it carries much of the load when accessories or a light bar are mounted. Choosing between single, double and triple bar applications depends on how the bed will be used and which accessories are planned. A single bar suits light use, while more bars spread the load across the bed rails when the rack is loaded heavily.
Bolted bed bar assemblies can settle under road vibration, so check the fasteners after the first few drives and at regular intervals. Gaskets between the bar and the bed help prevent metal-to-metal wear, and they can compress over time. Inspect them when fasteners are checked, and replace any that are flattened or torn.
- Match the bar setup to the planned load
- Retighten fasteners after the first few drives
- Check gaskets for flattening or tears
- Touch up chips in the powder coat to slow rust
Specifications
| Brand | Go Rhino |
|---|---|
| Part number | 91002B |
| UPC | 887753033963 |
| Material | Steel tubing |
| Tubing diameter | 3 inch |
| Finish | Black powder coat |
| Warranty | 5 year |
| Location | Main B Bar |
| Bar applications | Single, double and triple |
Vehicle fitment
It fits these pickups: 1983–2011 Ford Ranger, 1991–2004 GMC Sonoma, 1996–2000 Isuzu Hombre, 1981–1995 Isuzu Pickup, 1988–1992 Isuzu Pickup 1 Ton, 1986–1992 Jeep Comanche, 1986–1987 Mazda B2000, 1987–1993 Mazda B2200, 1994–1997 Mazda B2300, 1998–1999 Mazda B2500, 1987–1993 Mazda B2600, 1994–1996 and 1998–1999 Mazda B3000, 1994–2000 Mazda B4000, 1983–1989 and 1992–1996 Mitsubishi Mighty Max, 1989 and 1992 Mitsubishi Mighty Max 1 Ton, 1986–1994 Nissan D21, 1998–2004 Nissan Frontier, 1995–1997 Nissan Pickup, 1989–1995 Toyota Pickup, and 1995–2004 Toyota Tacoma.
Models and years not named in this list, including the Jeep Wrangler and Ford Ranger models built after 2011, are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Included: plastic gaskets.
Not included: the optional light bar, available separately.
