Overview

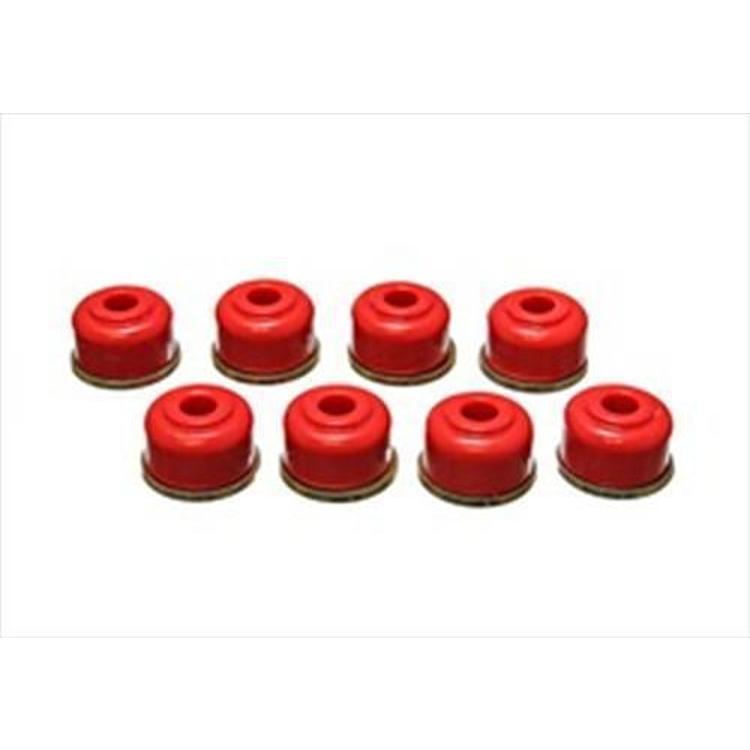

The Energy Suspension 9.8105R is a red polyurethane sway bar link bushing set for sway bar end links. The set is complete, with bushings plus zinc plated 3/8 in. grade 5 bolts, nylock nuts and heavy gauge washers. Energy Suspension marks it as universal fit.
Key features
- Red polyurethane sway bar link bushings
- Set includes bushings and matching end link hardware
- Grade 5 bolts, zinc plated, 3/8 in.
- Heavy gauge washers and nylock nuts
Inspecting the end link setup
Red polyurethane end link bushings are used at the points where the sway bar joins the suspension. They handle repeated small movements, so inspection is helpful during every tire rotation. Look for cracks, flattened sections, and any sign that the bushing has moved in its bore.
Before ordering, measure the end link you plan to replace and compare the mounting points with the hardware in the set. A universal fit set may need careful comparison of the link length and stud spacing. Clean the threads before assembly so the bolts seat evenly.
After installation, check that the links move freely without binding at full suspension travel. Recheck the nuts after the first drives and again at the next service, since new hardware can settle.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.8105R |
| UPC | 703639414223 |
| Color | Red |
| Bushing material | Polyurethane |
| Hardware | Zinc plated 3/8 in. grade 5 bolts, nylock nuts, heavy gauge washers |
| Fitment | Universal fit |
Vehicle fitment
The 9.8105R is a universal fit set, so its year, make, model and trim fit must be confirmed before ordering.
If your vehicle is missing from the application details, contact Energy Suspension first. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The set includes the red polyurethane bushings, zinc plated 3/8 in. grade 5 bolts, nylock nuts and heavy gauge washers.
